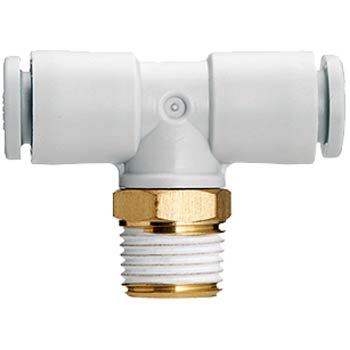

KQ2T12-02NS 12 x 1/4

Features:

・Possible to use in vacuum to –100 kPa.
・Improved tube insertion/removal
 Insertion force: Max. 30% reduction
 Removal force: Max. 20% reduction
・Compact and lightweight
 Dimensions height direction 24% shorter
 Dimensions horizontal direction 23% shorter, Weight 57% lighter
・Body type: Totaled 51 models
・Thread material/Surface treatment(Treated or Non-treated): 2 types
・Selectable surface treatment: Brass(No plating), Brass + Electroless nickel plated

Specifications:

Applicable
tubing O.D.
(mm)
Connection
thread
R
Model H
(Width
across
flats)
Note)
øD1
øD2 L1 L2 A* M Effective area
(mm2)
Min.
port
size
Weight
(g)
Nylon Urethane
ø12 1/4 KQ2T12-02NS 17 18.5 17 21.5 29.9 34.5 17 57.2 45.2 9 27.3




Part Number/SKU: KQ2T12-02NS

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU KQ2T12-02NS
Brand SMC
Shipping Weight 0.2500kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
