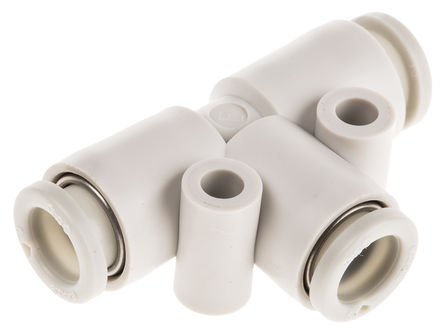

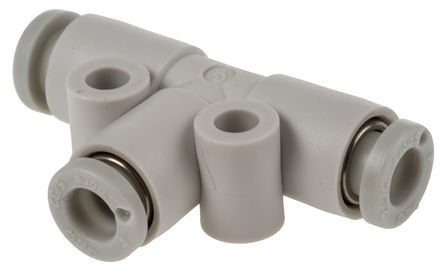

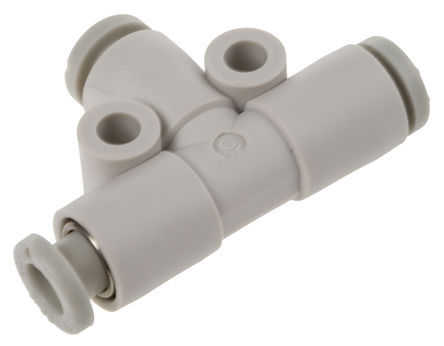

10mm TEES Union - KQ2T10-00A


Features:

・Possible to use in vacuum to –100 kPa.
・Improved tube insertion/removal
Insertion force: Max. 30% reduction
Removal force: Max. 20% reduction
・Compact and lightweight
Dimensions height direction 24% shorter
Dimensions horizontal direction 23% shorter, Weight 57% lighter
・Body type: Totaled 51 models
・Thread material/Surface treatment(Treated or Non-treated): 2 types
・Selectable surface treatment: Brass(No plating), Brass + Electroless nickel plated

Specifications:

Applicable
tubing O.D.
(mm)
Model Note)
øD
L1 L2 M Q øO øN Effective area
(mm2)
Min.
port
size
Weight
(g)
Nylon Urethane
ø10 KQ2T10-00A 15.9 20.6 28.6 15.6 9.6 8 4.2 40 28.4 7.5 11




Part Number/SKU: KQ2T10-00A

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU KQ2T10-00A
Brand SMC
Shipping Weight 0.2500kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
