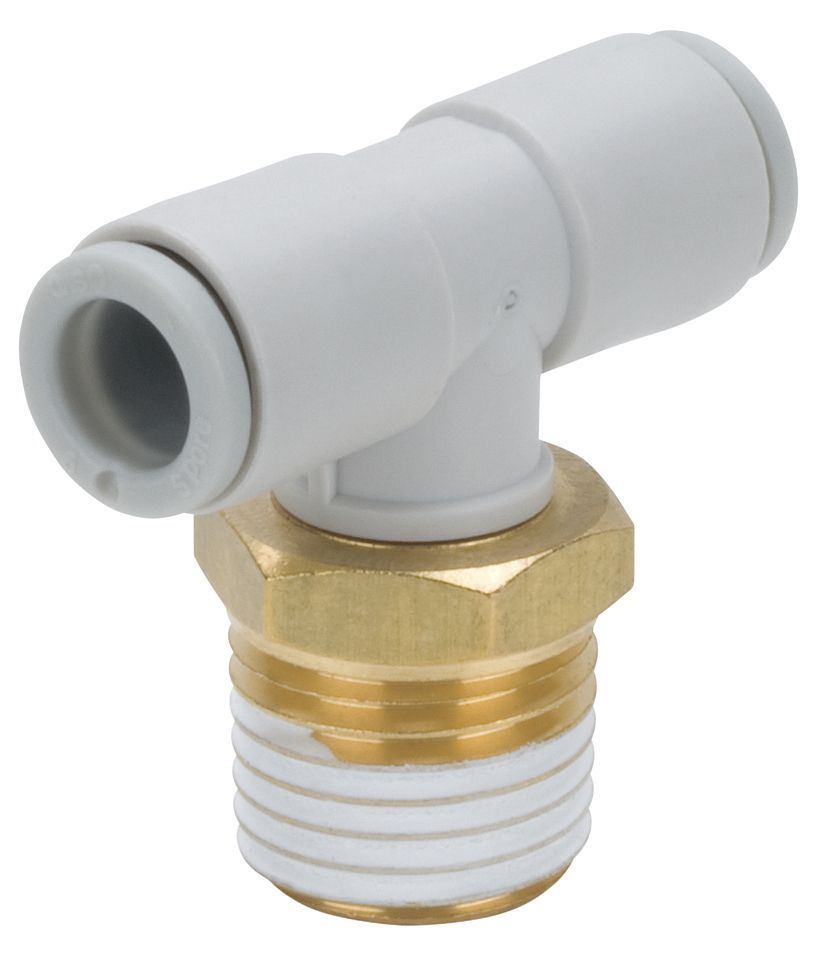

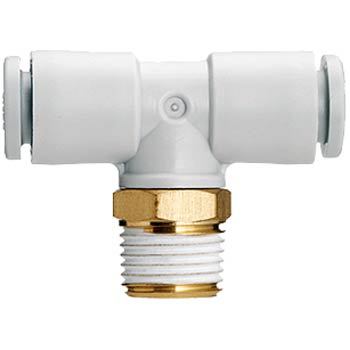

10mm TEES 10 x 3/8 - KQ2T10-03NS


Features:

・Possible to use in vacuum to –100 kPa.
・Improved tube insertion/removal
Insertion force: Max. 30% reduction
Removal force: Max. 20% reduction
・Compact and lightweight
Dimensions height direction 24% shorter
Dimensions horizontal direction 23% shorter, Weight 57% lighter
・Body type: Totaled 51 models
・Thread material/Surface treatment(Treated or Non-treated): 2 types
・Selectable surface treatment: Brass(No plating), Brass + Electroless nickel plated

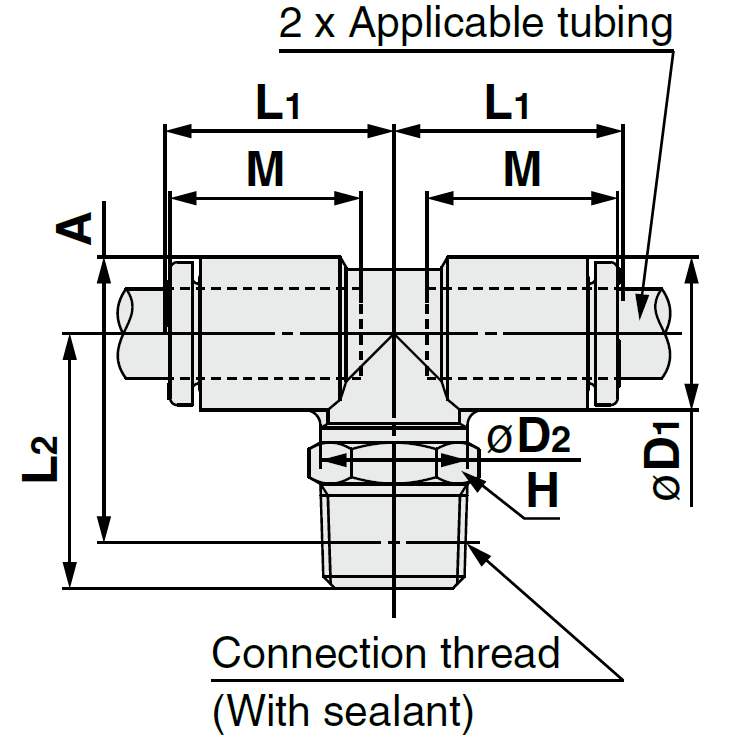

Specifications:

Applicable
tubing O.D.
(mm)
Connection
thread
R
Model H
(Width
across
flats)
Note)
øD1
øD2 L1 L2 A* M Effective area
(mm2)
Min.
port
size
Weight
(g)
Nylon Urethane
ø10 3/8 KQ2T10-03NS 17 15.9 17 19.3 29.5 32.4 15.6 35.2 25 7.5 24.8




Part Number/SKU: KQ2T10-03NS

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU KQ2T10-03NS
Brand SMC
Shipping Weight 0.2500kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m

Be The First To Review This Product!

Help other National Welding and Industrial Supplies users shop smarter by writing reviews for products you have purchased.

Write a product review
