YC Industrial Girder Clamps Beaver MH2700Y

The Beaver girder clamps are manufactured using a robust all-steel construction, and are easy and simple to mount for permanent or temporary mounting. These clamps are designed to provide a quick and versatile point for all yuor lifting, rigging, and hoisting needs, and comply to AS 4991.

All Beaver girder clamps are opertaionally tested to 150% of the working load limit, and come with individual test certificates. Each clamp also has an individial serial number stamped on the body of the clamp and also on the stainless steel identification plate. This number coincides directly to the test certificate of the product for quick and easy tracing and reference.

Specifications:

Product Code WLL Colour Code Net Weight Adjustable Beam Width Model Type
270010Y 1t Violet 3.8kg 75-230mm YC

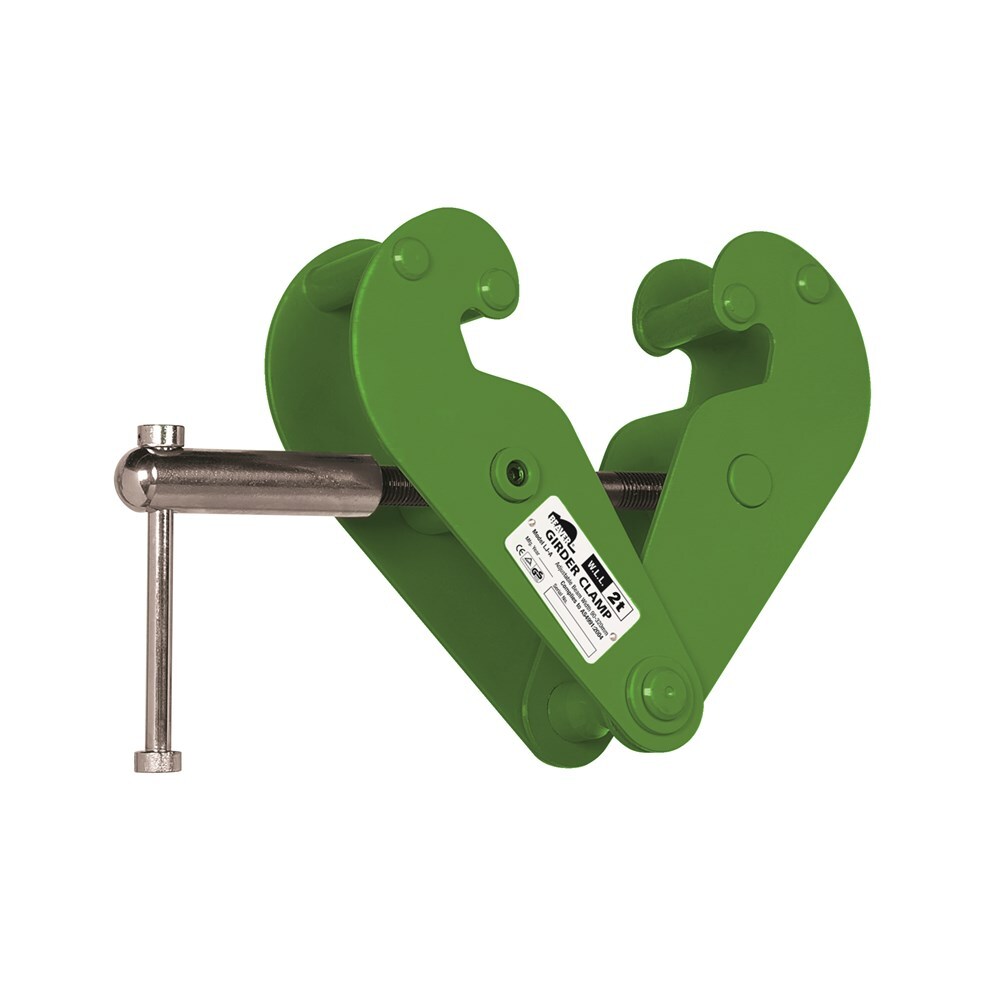

270020Y 2t Green 4.6kg 75-230mm YC

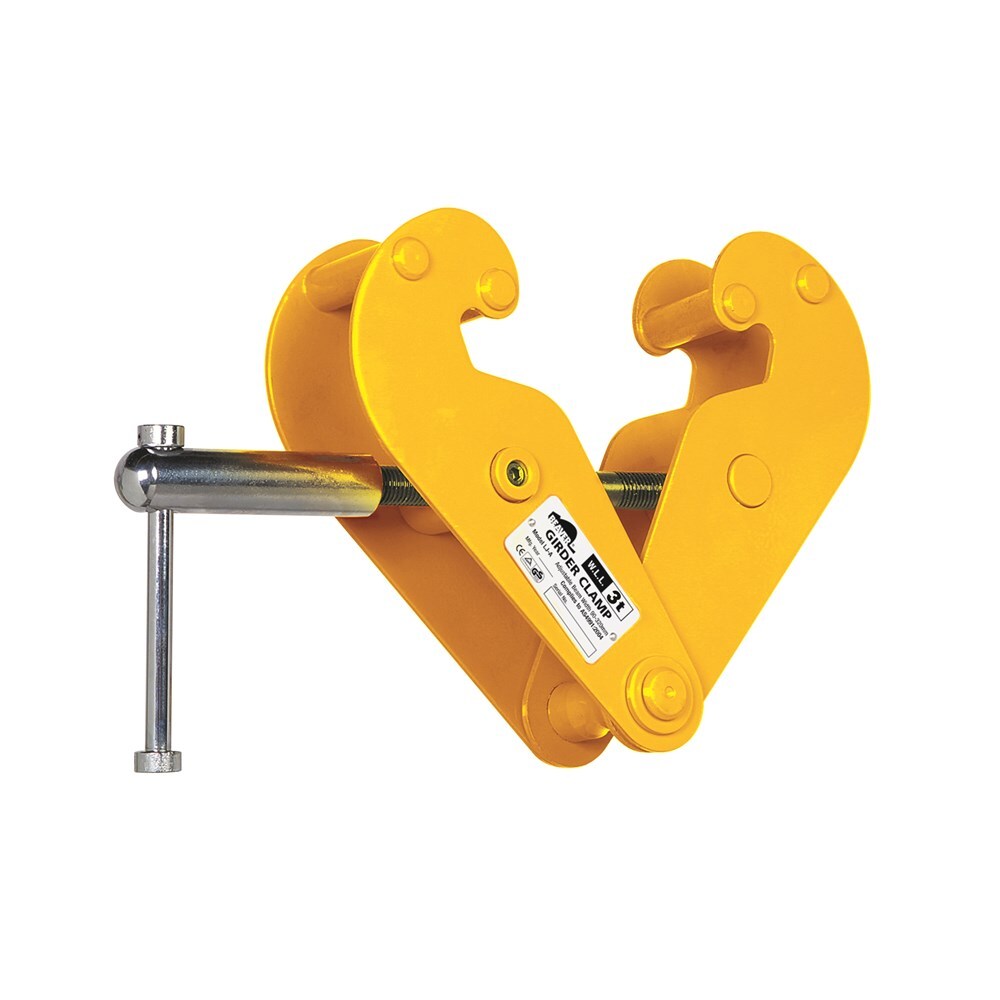

270030Y 3t Yellow 9.2kg 80-320mm YC





Product Code WLL A (max) B C D E F G (min) H K
270010Y 1t 246mm 186-350mm 66mm 4mm 215mm 90-133mm 44mm 20mm 14-21mm
270020Y 2t 246mm 186-350mm 74mm 6mm 215mm 90-133mm 44mm 20mm 14-21mm
270030Y 3t 320mm 232-455mm 102mm 8mm 255mm 143-195mm 75mm 22mm 30-34mm

Part Number/SKU: MH2700Y

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU MH2700Y
Brand Beaver
Shipping Weight 10.0000kg
Shipping Width 0.600m
Shipping Height 0.500m
Shipping Length 0.500m
Shipping Cubic 0.150000000m3
Unit Of Measure ea
