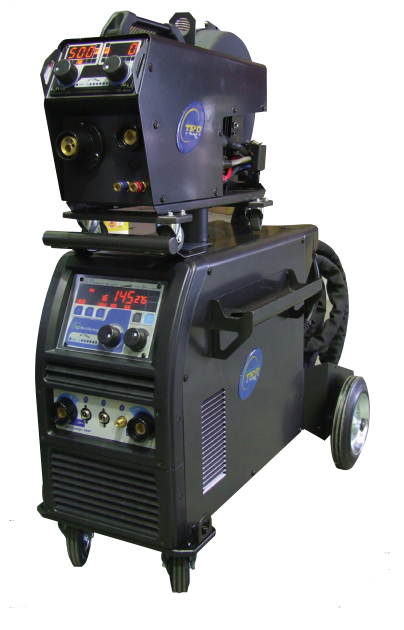

Unimig KTRPM500FSYN Multi Synergic 500SWF Pulse MIG Multifunction Welder

MULTI SYNERGY is the modern solution for applications in the medium high current range where the development of modern synergy helps in the welding of different material such as aluminium, stainless steel, copper alloys and standard steel alloys, reducing the welding cost and improving the overall efficiency of the welding. A complete range of programs that are easy to use provide excellent results even for first time users of digital machines. The highly efficient and robust inverter allows for a minmium of primary power input providing lower energy operating cost.

The base machine includes the trolley and the bottle support, the external wire feeder can use a water or air cooled torch. Three phase multifunction developed for heavy industrial applications with 500A at ED 40%. Complete manual and synergic multifunction with selection of MMA, TIG, MIG, MAG; ideal for any kind of application.

Features:
  • The MULTI-SYNERGIC 500SWF is a complete and powerful 500 Amp multifunction DC welding machine
  • An industrial machine with multiple welding functions
  • Pulse Mig, Double Pulse Mig, High Speed Mig
  • DC Tig and DC MMA (Stick)

Package Content:
  • TER MULTI-500 SWF PLUS CONCEPT Pulse MIG Welder
  • 4m SB500 Air-cooled MIG Torch (including consumables)
  • 4m Twist Lock Electrode Holder
  • 500 Amp Earth Clamp & Lead
  • Twin Gauge Argon Regulator
  • 2m Gas Hose Complete with fittings
  • Operating Manual



  • Optional Water Cooler
  • Optional TIG Torch SR18-4MCP50 Water Cooled TIG Torch with 35/50 Dinse style connections
  • Optional Push Pull SGPPL360 Torch 8 Metre
  • Optional Water Cooled Push Pull Torch 8 Metre SGPPLW400

DOUBLE PULSE MIG FUNCTION
A simple button press on the front panel will switch from a standard pulse application to the advanced and fast double pulse without any other settings required from the operator. The  frequency of the Double Pulse is easily adjusted from 0.5 to 4.0 pulses per second. Double Pulse offers more control over the weld pool improving out of position welding, better controls distortion and gives excellent wash and even leg length on fillet welds.

MULTI PROCESS WELDING
This three in one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is also support for both gas shielded MIG and gasless MIG wire. There is no need to swap between machines, saving you time and setup.

GEARED WIRE DRIVE
This machine features a four geared roller drive unit, providing the most consistent and smoothest wire feed. This also assists with using longer MIG Torches.

VOLTAGE REDUCTION DEVICE
VRD is an essential safety feature when operating in STICK (MMA) mode. VRD reduces the maximum unloaded open circuit voltage across the output terminals. In other words, your machine is safer to use and meets the industry standard.

Alternative SKU: KTRPM500SYN

Part Number/SKU: KTRPM500FSYN

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU KTRPM500FSYN
Brand Unimig
Shipping Weight 85.0000kg
Shipping Width 1.000m
Shipping Height 0.600m
Shipping Length 1.500m
Shipping Cubic 0.900000000m3
Unit Of Measure ea

Be The First To Review This Product!

Help other National Welding and Industrial Supplies users shop smarter by writing reviews for products you have purchased.

Write a product review
