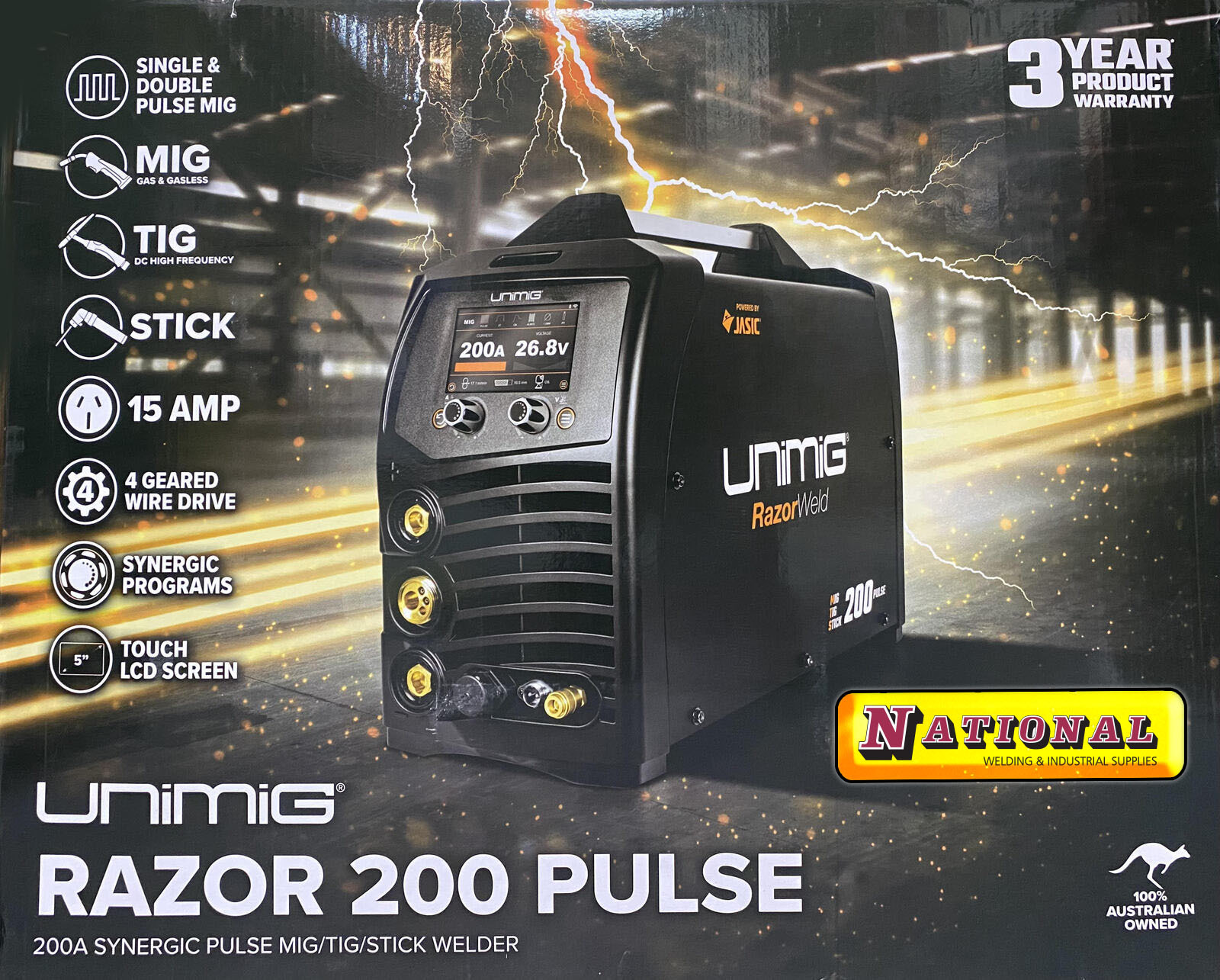

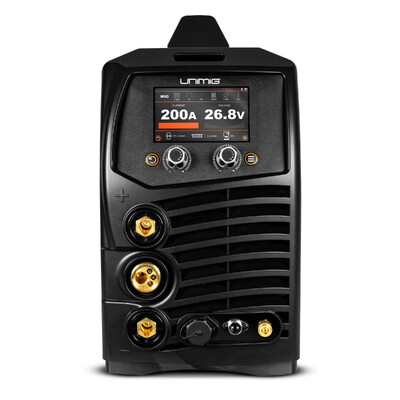

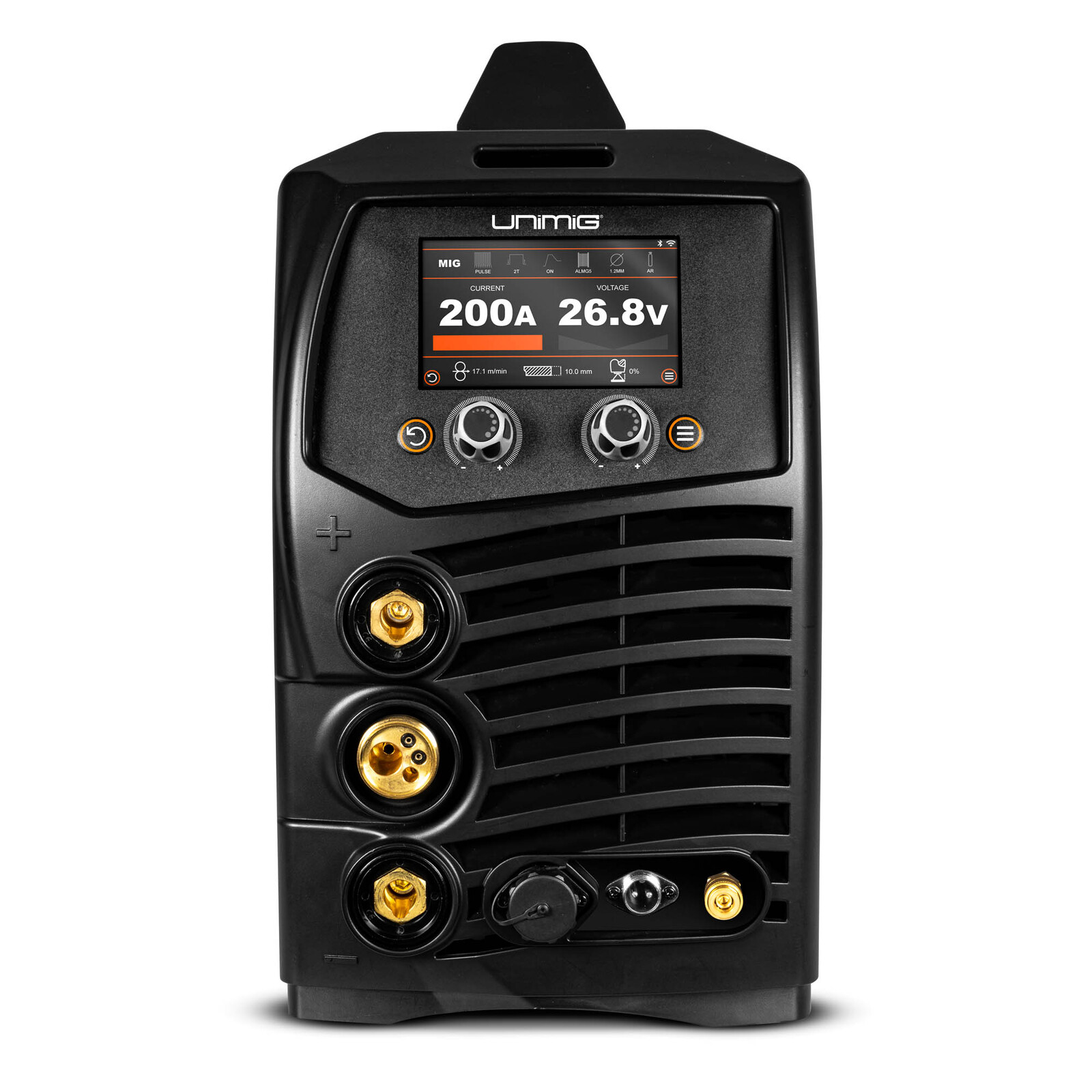

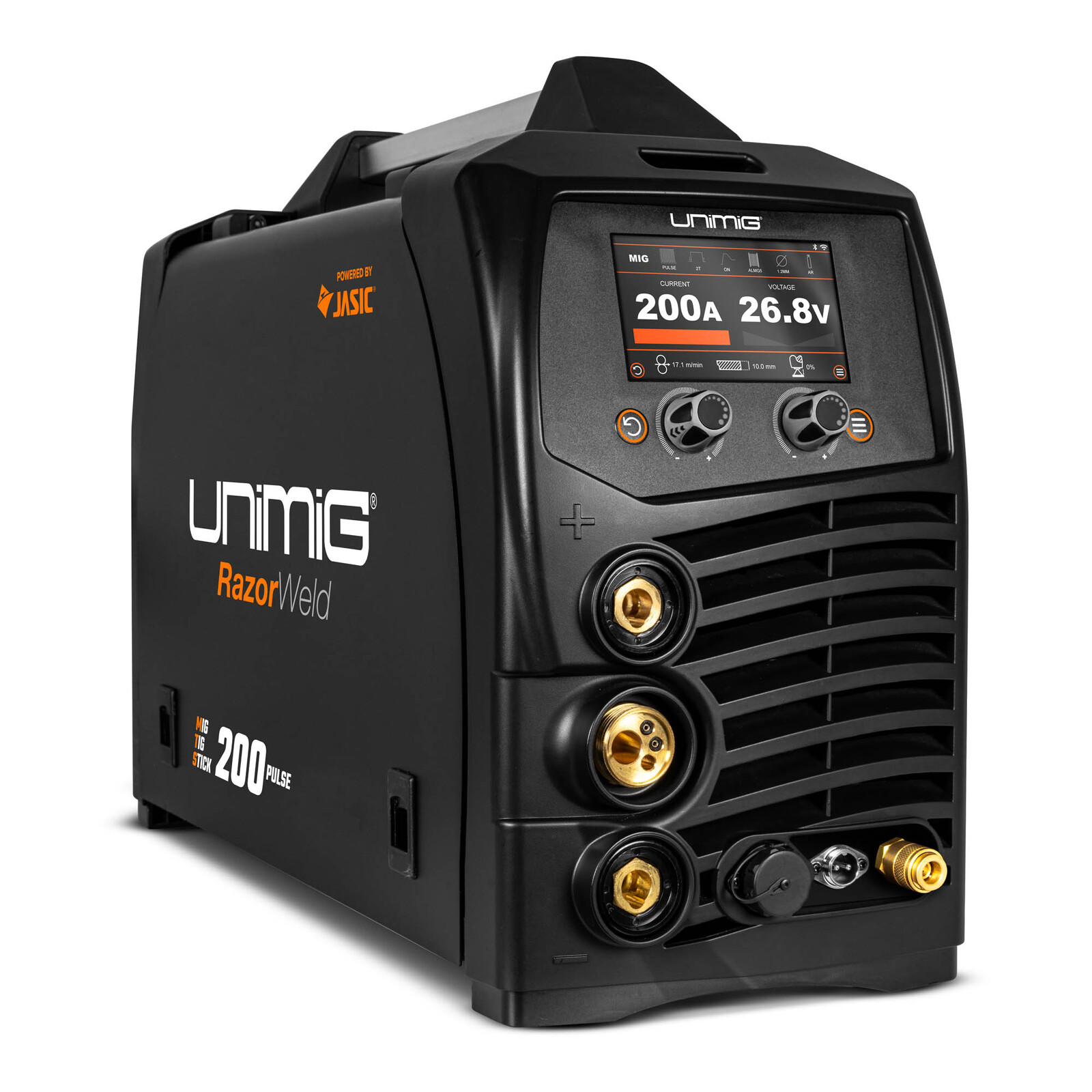

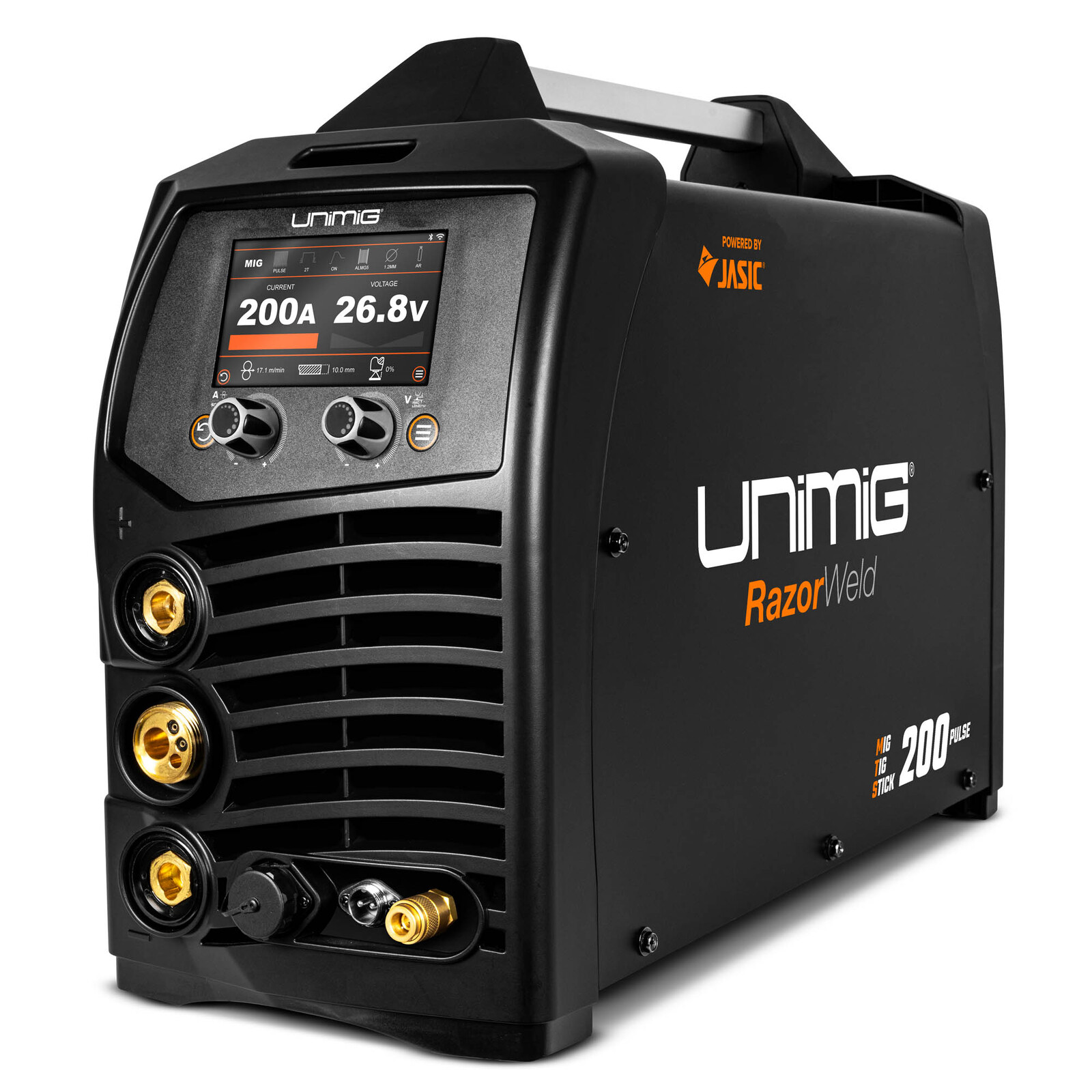

200A Synergic Pulse Mig/Stick/Tig Welder Unimig U11003K

UNIMIG RAZOR 200 PULSE MIG/TIG/STICK 15A Welder
Includes:

• 1 x Razor 200 Pulse MIG/TIG/STICK Welder
• 1 x 3m DM26 Digital MIG Torch Fitted with Carbon-Polyamide Liner
• 1 x 3m Twist Lock Electrode Holder
• 1 x 3m 200Amp Earth Clamp & Lead
• 1 x Twin Guage Argon Regulator
• 1 x 1.8m Gas Hose Complete with Fittings
• 1 x Operating Manual

Features:

• Single & double MIG Pulse welding reduces the heat and minimises spatter, without compromising penetration, so its perfect for thin and soft materials like aluminium.
• 5" LCD touch screen display means choosing your weld parameters or changing your settings mid weld has never been easier. The large touch screen display is clear, with an easy to navigate interface. You won’t even need a manual to work it out.

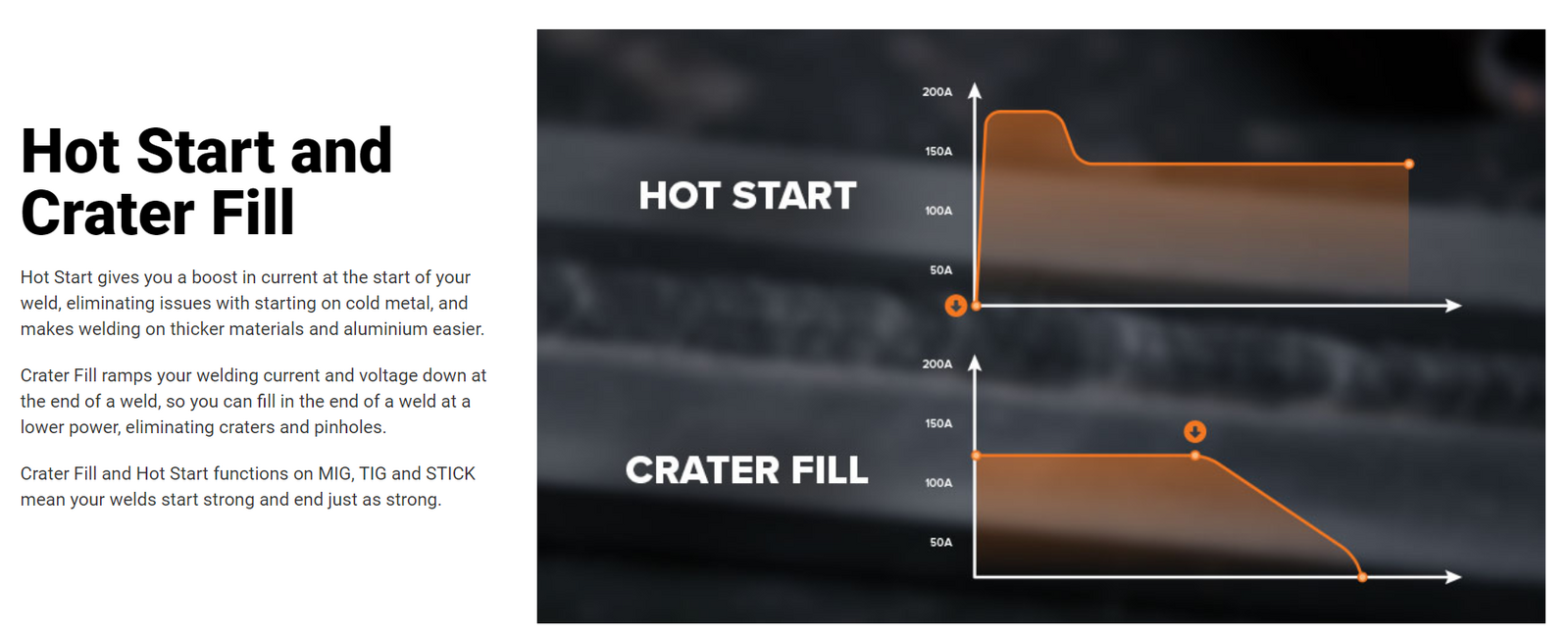

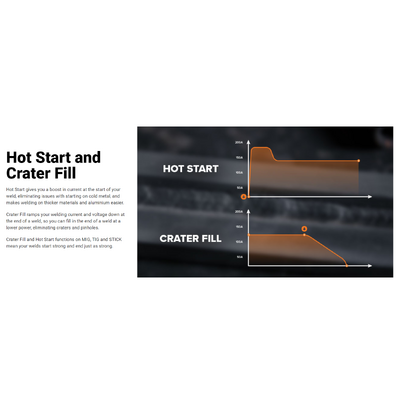

• Hot Starting a MIG weld has never been so smooth with the Hot Start function. Turn it on to give you a boost in current at the start of your weld, eliminating issues with starting on cold metal, and making welding on thicker materials and aluminium easier.
• Finishing a weld has never been so easy with the Crater Fill feature. Turning the Crater Fill function on will ramp your welding current and voltage down at the end of a MIG or TIG weld, so you can fill it in at a lower power, eliminating craters and pinholes. End your welds as strong as they started.
• The high frequency DC TIG welding mode comes with a full set of adjustable parameters, like pre- and post-flow, up and down slopes, as well as all things pulse. Everything you need, right at your fingertips.
• You’ll be able to STICK weld anything, including cellulosic electrodes, plus with the addition of Anti Stick, you’ll never struggle to strike an arc again.
• 4 Geared Wire Drive rollers, you will get a more consistent and smoother wire feeding experience. The internal housing also features storage space for additional rollers, so they’re always in reach. It also comes with an internal spool light, for max visibility in any lighting.
• The Arc Force function helps to keep the arc stabilised throughout the weld, so it won’t cut out, and stops the electrode from sticking.
• Power Limit works to keep the amperage constant throughout the weld by preventing the voltage from exceeding the set value.
• The RAZOR 200 PULSE can be connected to a generator. We recommend one with an 11kVa.

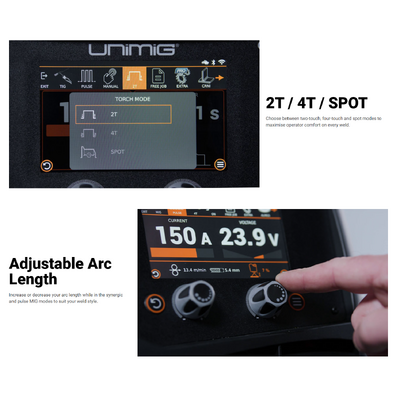

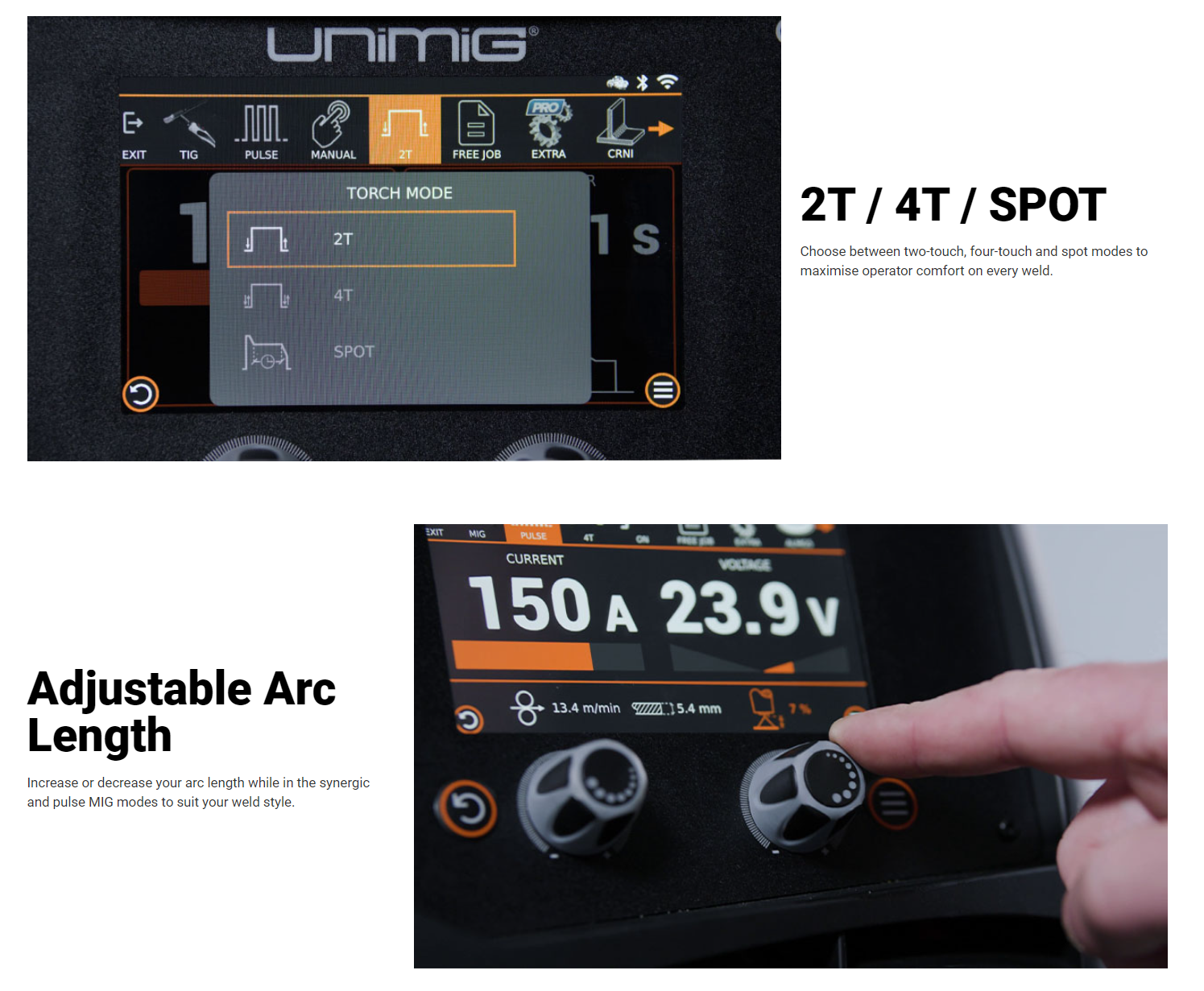

• Increase or decrease your arc length while in the synergic and pulse MIG modes to suit your weld style.
• Change the frequency of your short circuit MIG welds with the Inductance settings, so you can choose your preferred arc characteristics.
• The RAZOR 200 PULSE is rated IP23S, so it’s protected from touch by fingers and objects greater than 12mm, and water spray less than 60° from vertical.



TECHNICAL DATA
SKU: U11003K

•  RAZORTM 200 PULSE MIG/TIG/STICK Welder
•  3m DM26 Digital MIG Torch fitted with carbon-polyamide liner
•  3m Twist Lock Electrode Holder
•  3m 300 Amp Earth Clamp & Lead
•  Twin Gauge Argon Regulator
•  1.8m Gas Hose Complete with fittings
•  Operating Manual
•  2kg 1.2mm 5356 HYPERARC Aluminium Wire
•  DM26 Consumable Starter Kit

MACHINE FEATURES

• WIRE DRIVE -  4 Geared
• VRD - Yes

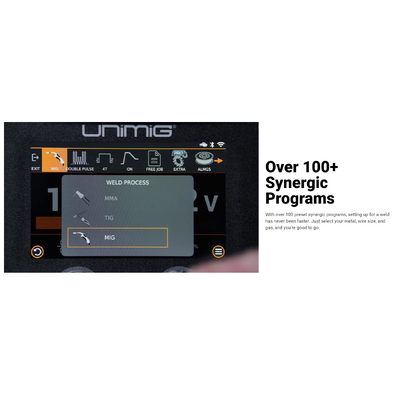

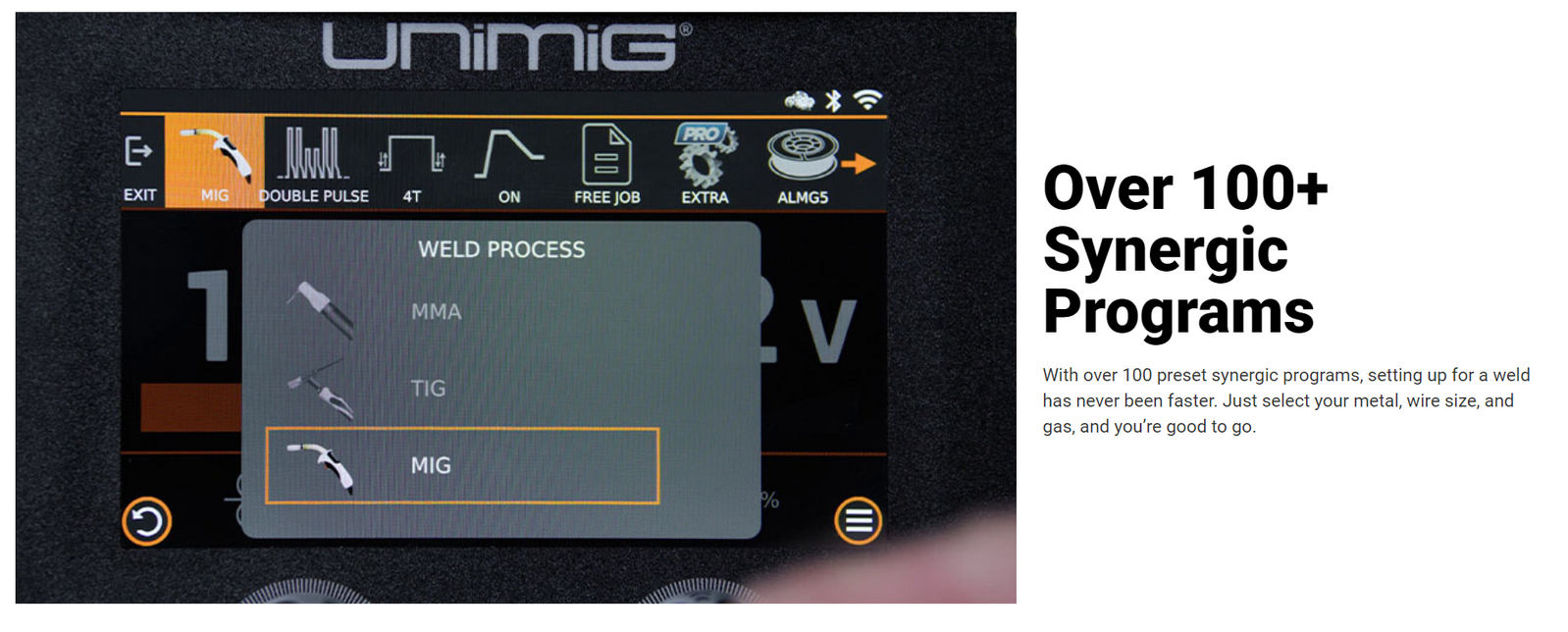

• SYNERGIC PROGRAMS - Yes
• BURNBACK ADJUSTMENT - Yes
• THERMAL OVERLOAD PROTECTION - Yes

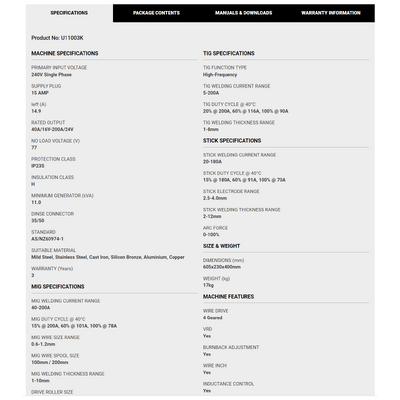

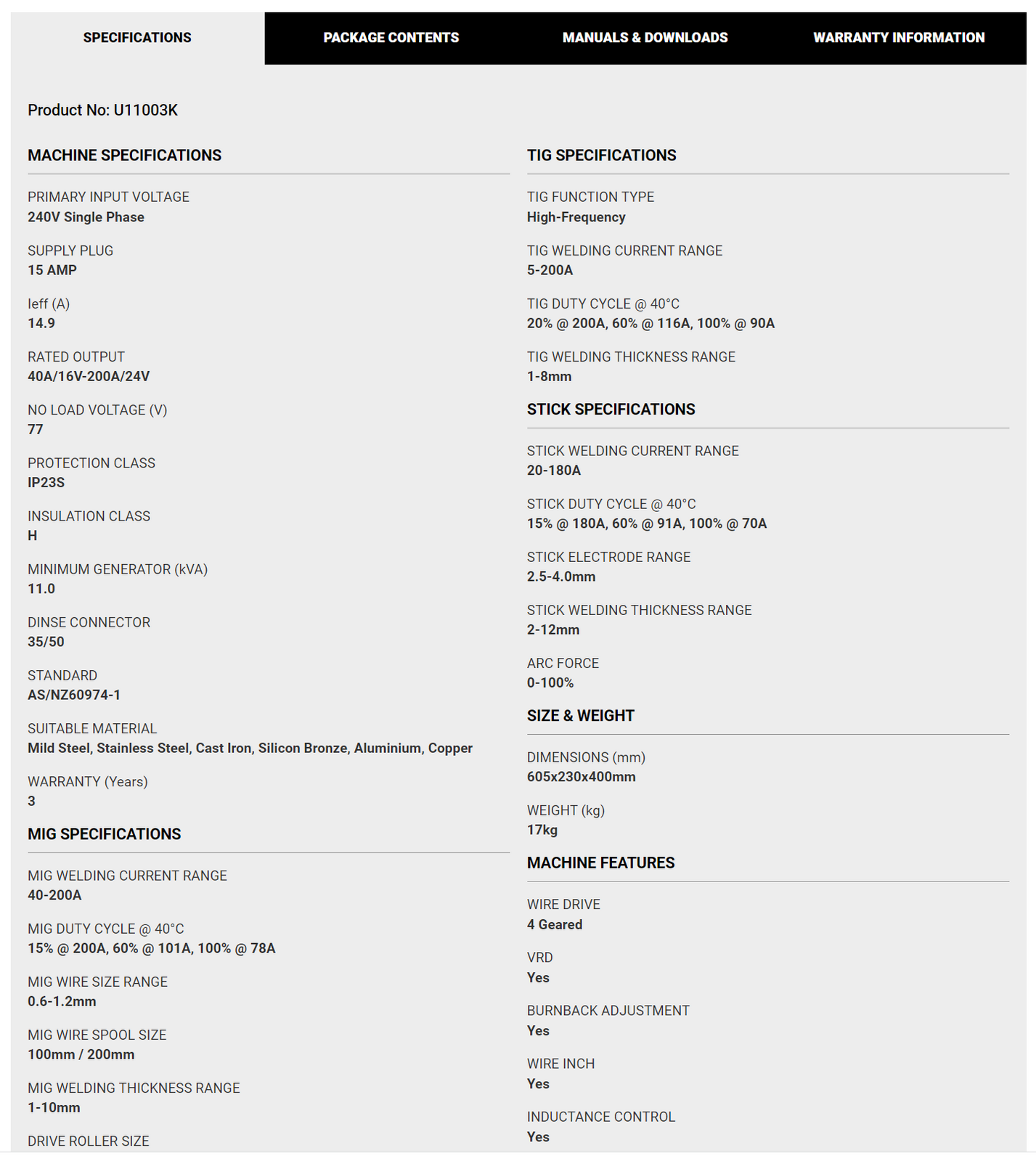

TECHNICAL DATA

• PRIMARY INPUT VOLTAGE - 240V Single Phase
• SUPPLY PLUG - 15 AMP
• Ieff (A) - 14.9
• RATED OUTPUT - 40A/16V-200A/24V
• PROTECTION CLASS -  IP23S
• INSULATION CLASS - H
• MINIMUM GENERATOR (kVA) - 11.0
• DINSE CONNECTOR - 35/50
• STANDARD -  AS/NZ60974-1
• WELDS -  Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
• WARRANTY - (Years) 3

MIG SPECIFICATIONS

• MIG WELDING CURRENT RANGE 40-200A
• MIG DUTY CYCLE @ 40°C 15% @ 200A, 60% @ 101A, 100% @ 78A
• MIG WIRE SIZE RANGE 0.6-1.2mm
• MIG WIRE SPOOL SIZE 1kg / 5kg
• MIG WELDING THICKNESS RANGE 1-10mm
• DRIVE ROLLER SIZE 30/22

TIG SPECIFICATIONS

• TIG FUNCTION TYPE High-Frequency
• TIG WELDING CURRENT RANGE 5-200A
• TIG DUTY CYCLE @ 40°C 20% @ 200A, 60% @ 116A, 100% @ 90A
• TIG WELDING THICKNESS RANGE 1-8mm

STICK SPECIFICATIONS

• STICK WELDING CURRENT RANGE 20-180A
• STICK DUTY CYCLE @ 40°C 15% @ 180A, 60% @ 91A, 100% @ 70A
• STICK ELECTRODE RANGE 2.5-4.0mm
• STICK WELDING THICKNESS RANGE 2-12mm
• DIMENSIONS (mm) 605x230x400mm
• WEIGHT (kg) 17kg

Razor 200 Pulse Manual

Part Number/SKU: U11003K

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
