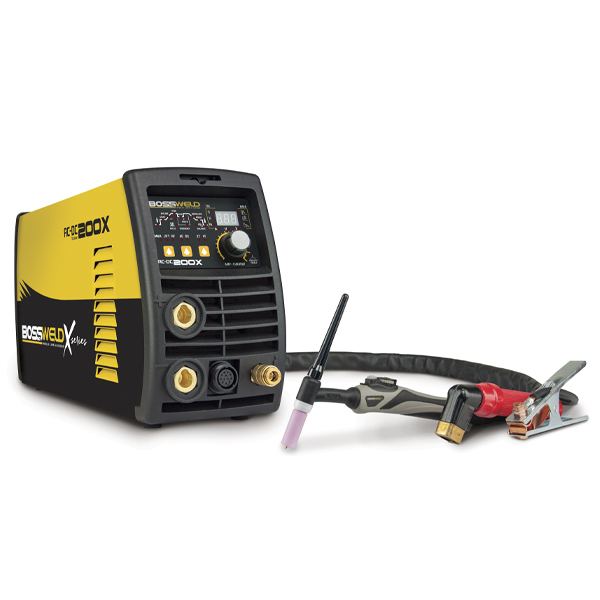

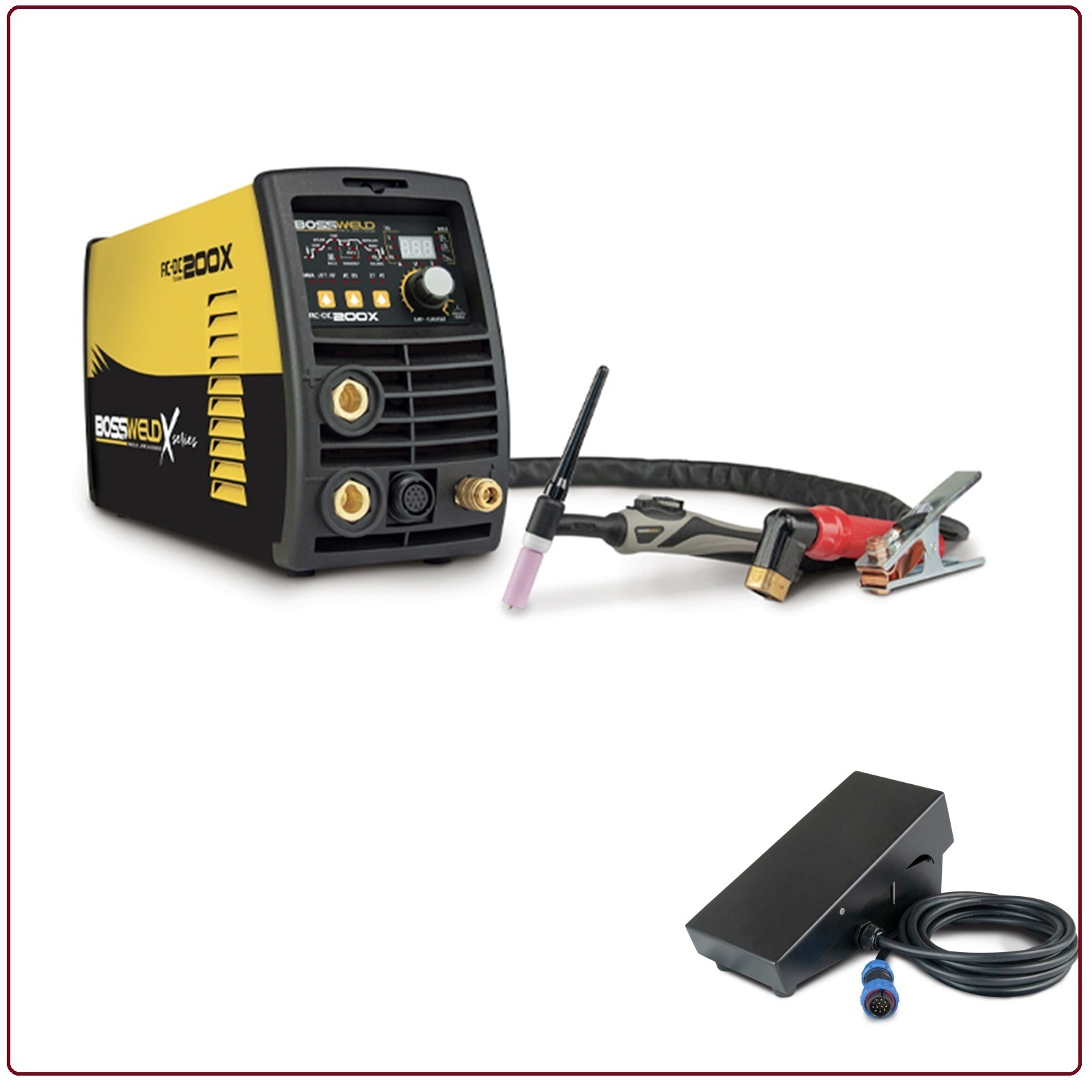

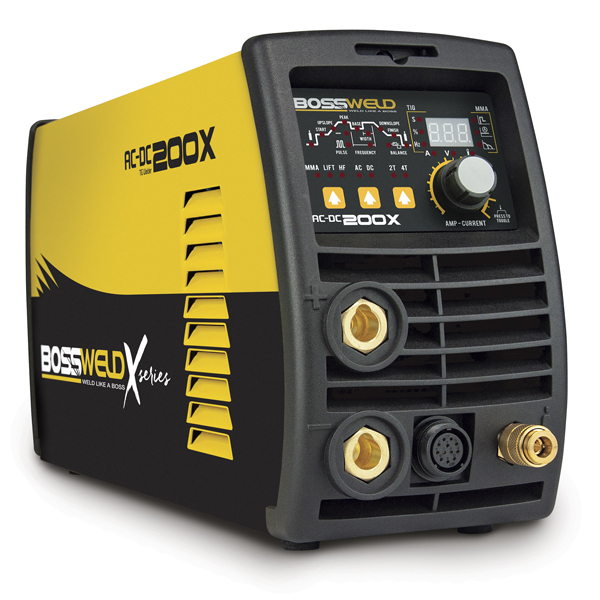

Tig Welder 200X AC/DC X-Series  With Foot Controller Bossweld 692200FOOT

Tig Welder X Series 240V AC/DC 200 X 692200

The Bossweld 200X AC/DC TIG welder utilises the latest in IGBT welder technology and is designed with the professional TIG welder in mind. You have the ability to adjust all aspects of the weld cycle. Being an AC/DC, you can TIG weld aluminium, making this welder the ideal choice for any tradesperson or maintenance technician.

  • 200 Amp output
  • High frequency arc start
  • Fitted 15 Amp plug
  • Simple to operate
  • Digital LED display
  • Foot control ready
  • Adjustable pulse
  • Pre and post gas adjustment
  • AC balance adjustment
  • 2T / 4T trigger latching
  • Lightweight and portable
  • IGBT inverter technology
 Primary input power   Single phase 240V 50-60 HZ +/- 15%
 Duty cycle

25% @200A

60% @125A

100% @100A

 Open circuit voltage  52V
 Output current range

TIG ~AC 10-200 Amps

TIG~DC 10-170 Amps

 Current (Max)

 TIG 30.5A

MMA 39.7A

 Current (eff)  15A
 Tungsten Range  1.0mm to 3.2mm
 Thermal Overload  Yes
 Minimum kVA  8

Includes

  • 200X AC/DC Inverter Welder.
  • 4 Metres 26 Series Current control TIG torch
  • 3 Metres twist lock Electrode Holdedr
  • 2.5 Metres 200 Amp Earth clamp
  • 2.5 Metres Quick connect gas hose.
  • Argon flowmeter regulator
  • Opertaor manual

FOOT CONTROL 12 PIN 3 METRES SUITS 200 AC/DC 600201

Features:

  • 3 metre cord
  • Ideal for bench work

Parent-Child relationship between the welder and foot controller. This means if you set the welder to 120 Amps, the foot controller range will be between min and 120 Amps






Part Number/SKU: 692200FOOT

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 692200FOOT
Brand Bossweld
Shipping Weight 15.0000kg
Shipping Width 0.500m
Shipping Height 0.500m
Shipping Length 0.500m
Shipping Cubic 0.125000000m3
Unit Of Measure Pk
