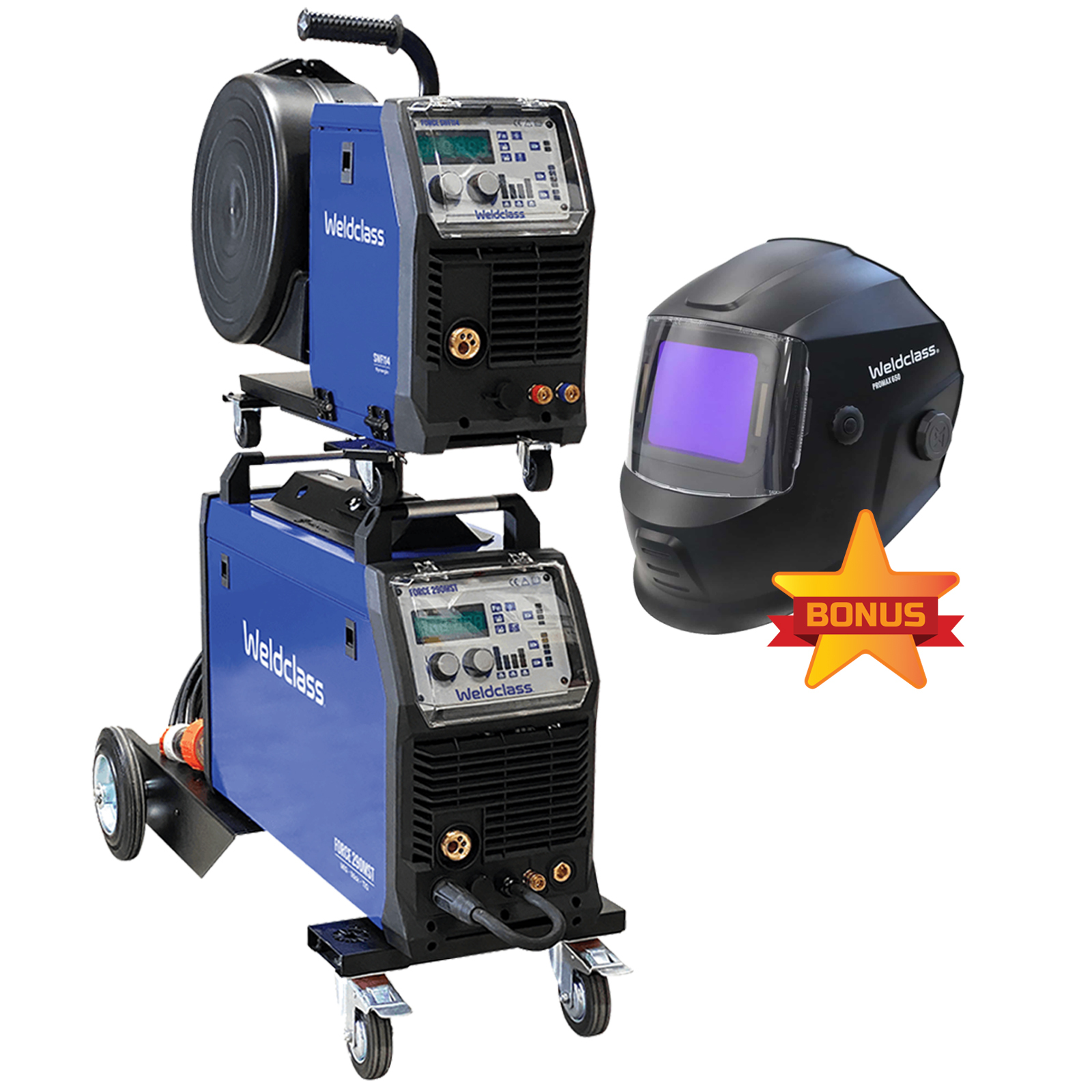

Force 290MST Separate Wire Feeder Package Weldclass WC-PD290MSTA
The Weldforce 290MST offers unbeatable grunt from single-phase power, ideal for use where where higher output is desired but 3-phase power supply is not available. With a maximum output of 290A @ 55% there's plenty of power to tackle production jobs with wires up to 1.2mm. Available as a stand-alone compact / portable machine, or can be optioned with the WF114 separate wire feeder unit either with initial purchase or as an add-on later if/when required.
- SWF114 Wire Feeder
- 8m Interconnecting Cables
- Max MIG output 290A @ 55% duty cycle
- Dual Input Modes to 240V 32A plug (optional)
- Geared 4 roll wire drive system
- Takes 5kg or 15kg spools
- Spool Gun Ready
FEATURES:
- - MIG (Gas / Gasless)
- - Stick / MMA
- - TIG (DC Lift-Arc)
- - Dual-Purpose Power Source Technology allows the 290MST to be used as a stand-alone compact / portable unit, or fitted with separate wire feeder unit
- - Max MIG output 290A @ 55% duty cycle
- - Dual Input Modes to allow use with either 240V 15A plug (fitted), or 240V 32A plug (optional) for full/maximum output**
- - Manual or Synergic MIG controls (enter material type & thickness and machine will set parameters automatically)
- - Job Save -store custom settings for up to 20 jobs
- - Geared 4-Roll Wire Drive System - for super reliable wire feeding
- - Takes 5kg (D200mm) or 15kg (D300mm)spools
- - Spool Gun Ready
- - MIG functions &; adjustments include: Inductance, Soft Start, Burnback, Pre-Gas Time, Post-Gas Time, 2T/4T Trigger, Spot/Stitch Time
- - Stick/MMA functions &; adjustments include: Hot-Start %, Arc-Force %
- - TIG functions &; adjustments include: Trigger &; Remote Amperage Control on the the torch, Post-Gas Time, Slope-Up Time
- - Generator Compatible - min 15kva, ideal 20+kva (where possible we also recommend investing in generator with 240V 32A outlet)
- - MIG welding <;290A with solid mild steel (0.8-1.2mm), gasless flux-cored (0.8-1.2mm), stainless-steel (0.8-1.2mm), aluminium (0.9-1.2mm), &; bronze/brazing (0.8-1.2mm) wires
- - Stick/MMA welding <;270A with most types of common electrodes (2.0-4.0mm), including steel, stainless-steel, hardfacing &; more
- - TIG welding <;290A (DC lift-arc) of steel, stainless, copper &; chrome molly up to 5-6mm max thickness (NOT suitable for TIG welding of aluminium)
BONUS :
Promax 650 Welding Helmet only up to 15 January 2024
Part Number/SKU: WC-PD290MSTA
* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
SKU | WC-PD290MSTA |
Brand | Weldclass |
Shipping Weight | 15.0000kg |
Shipping Width | 0.800m |
Shipping Height | 0.600m |
Shipping Length | 0.400m |
Shipping Cubic | 0.192000000m3 |
Unit Of Measure | ea |
