T3W Water Cooled Tig Torch 400 A

The ARC TORCHOLOGY® T3W Water-Cooled TIG Torch has been designed for maximum performance and longer consumable lifecycles. Thanks to exclusive torch technologies, this torch boasts a better power to weight ratio compared to standard UNIMIG torches – more power in a lightweight body! The T3W TIG Torch also comes with a flex-neck torch head as standard, perfect for TIG welding in tighter and restrictive environments.

Specifications

 Duty Cycle DC  100% @400A
 Duty Cycle AC   100% @280 A
 Cooling Method   Liquid / Water Cooled
 Dinse Size 35 / 50
 Electrode Size   1.0-4.0mm / 0.004"-5/32"
 Minimum Water Flow   1.5L/min
 Minimum Water Inlet Pressure  3.0 Bar
 Maximum Water Inlet Pressure   5.0 Bar
 Maximum Water Inlet Temperature   50° C
 Minimum Cooling Power   900 W

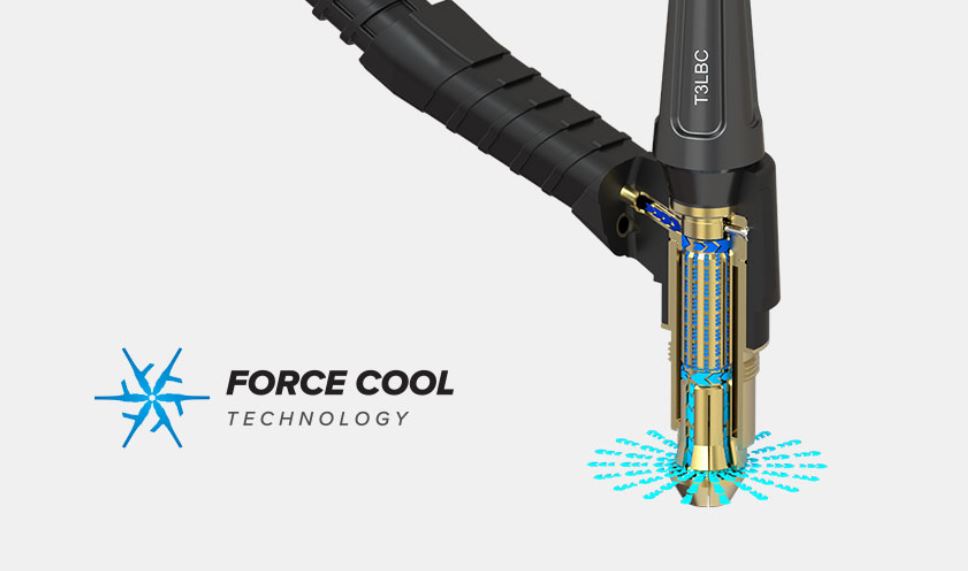

FORCE COOL™ TECHNOLOGY
A highly effective series of passages and wells force cool the collet, maximising conductivity and extending consumable life.

HEAT ZONE ISOLATION™ TECHNOLOGY
Transferred heat from the ceramic cup is isolated by a unique external barrier resulting in cooler running torches with increased power to weight performance ratios.

BI-FLOW™ TECHNOLOGY
High capacity cooling chambers remove excessive heat at source, allowing greater performance from a smaller body.

TUNGSTEN RELEASE SYSTEM™
Trouble free extension of the electrode with a 180° twist of the back cap. There is no need to remove any other wear parts to extend the electrode.

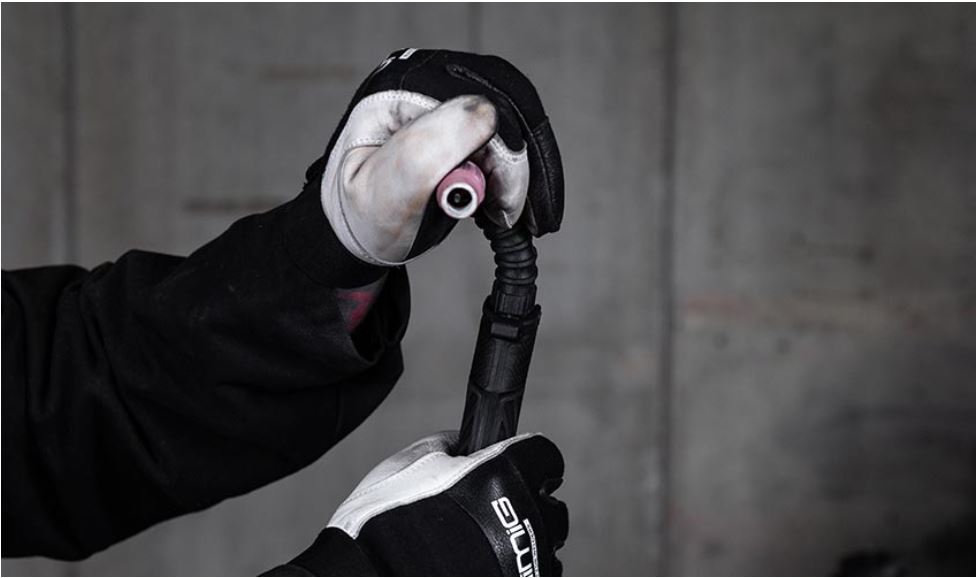

FLEX-NECK TORCH HEAD
ARC TORCHOLOGY® Torches come with a flexible torch head as standard. Simply bend your torch head into any angle you need, allowing you to access tight and cramped spaces.


Part Number/SKU: T3WTigTorch

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T3WTigTorch
Brand Arc
Shipping Width 0.300m
Shipping Height 0.300m
Shipping Length 0.300m
Shipping Cubic 0.027000000m3
Unit Of Measure ea
