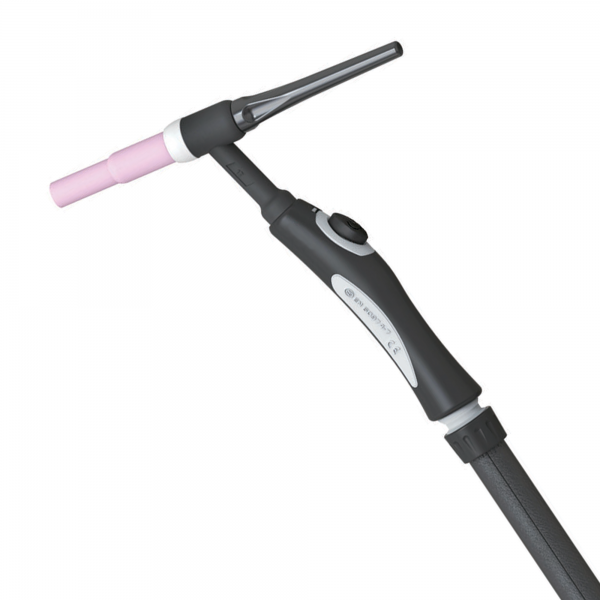

SR17 Suregrip Series Ergo TIG Torch

Suregrip SR-17
150A AIR COOLED TIG WELDING TORCH
Rating: 150A DC, 105A AC @35% ducy cycle.
Designed for operator comfort.

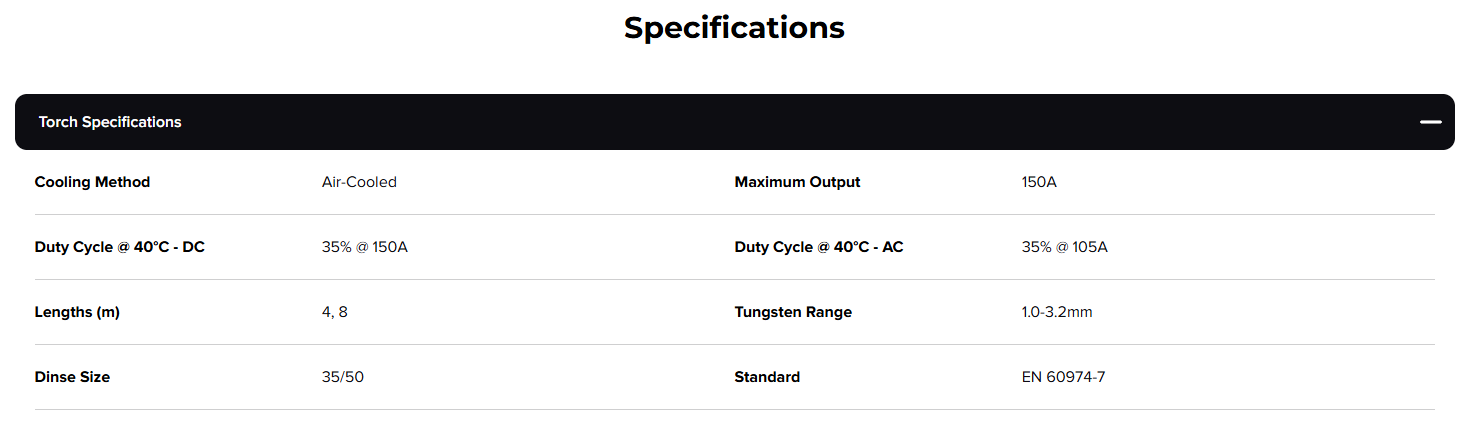

SPECIFICATIONS

Cooling MethodAir    - Cooled
Duty Cycle          - DC35% @ 150 Amps
Duty Cycle          - AC35% @ 105 Amps
Dinse Style         - 10/25 type - 35/50 type
Available Lengths    - 4 / 8 Metre

The SR17 TIG Torch has been engineered for effortless and superior performance while AC or DC High-Frequency TIG welding, with shielded switch leads for max machine protection.
Weld with electrodes as thick as 3.2mm with a 150A output
Keep your hand comfortable with a soft grip and knuckle joints on the ergonomic handle
Easily swap our torch head to a flex-head and weld at any angle

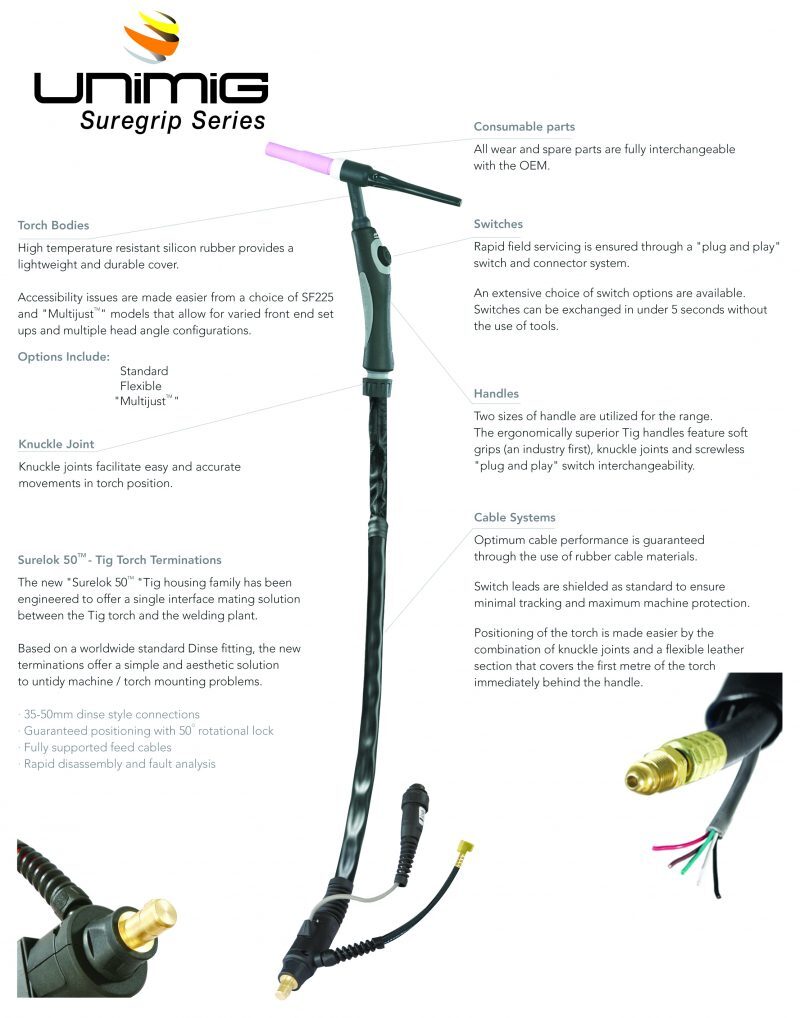

Additional Features

150A Output
Perform effortlessly on every weld. With a rated output of 150A, you’ll be able to weld with tungsten electrodes up to 3.2mm thick.

Ergonomic Handle
The ergonomic handle, with soft grips and knuckle joints, provides comfort even during extended periods of usage.

Flex-Head Compatible
Bend your torch head to any angle you need. The 17 Series torch comes with the option to swap to a flex-head, so you can access tight and cramped spaces when you need to.

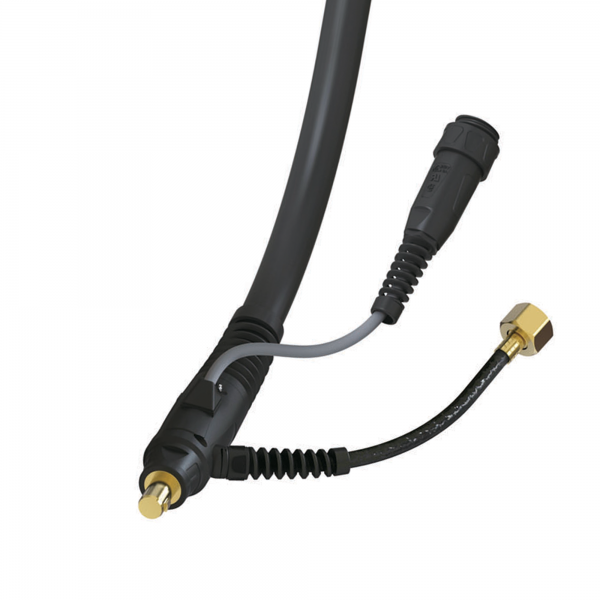

Advanced Cable System
A durable cable system keeps your torch connections protected and running at max capacity. Shielded switch leads, rubber cable materials, and a flexible leather section along the first metre of the torch all work to safeguard your torch leads.

TIG Torch Manual

Part Number/SKU: SR-17

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
