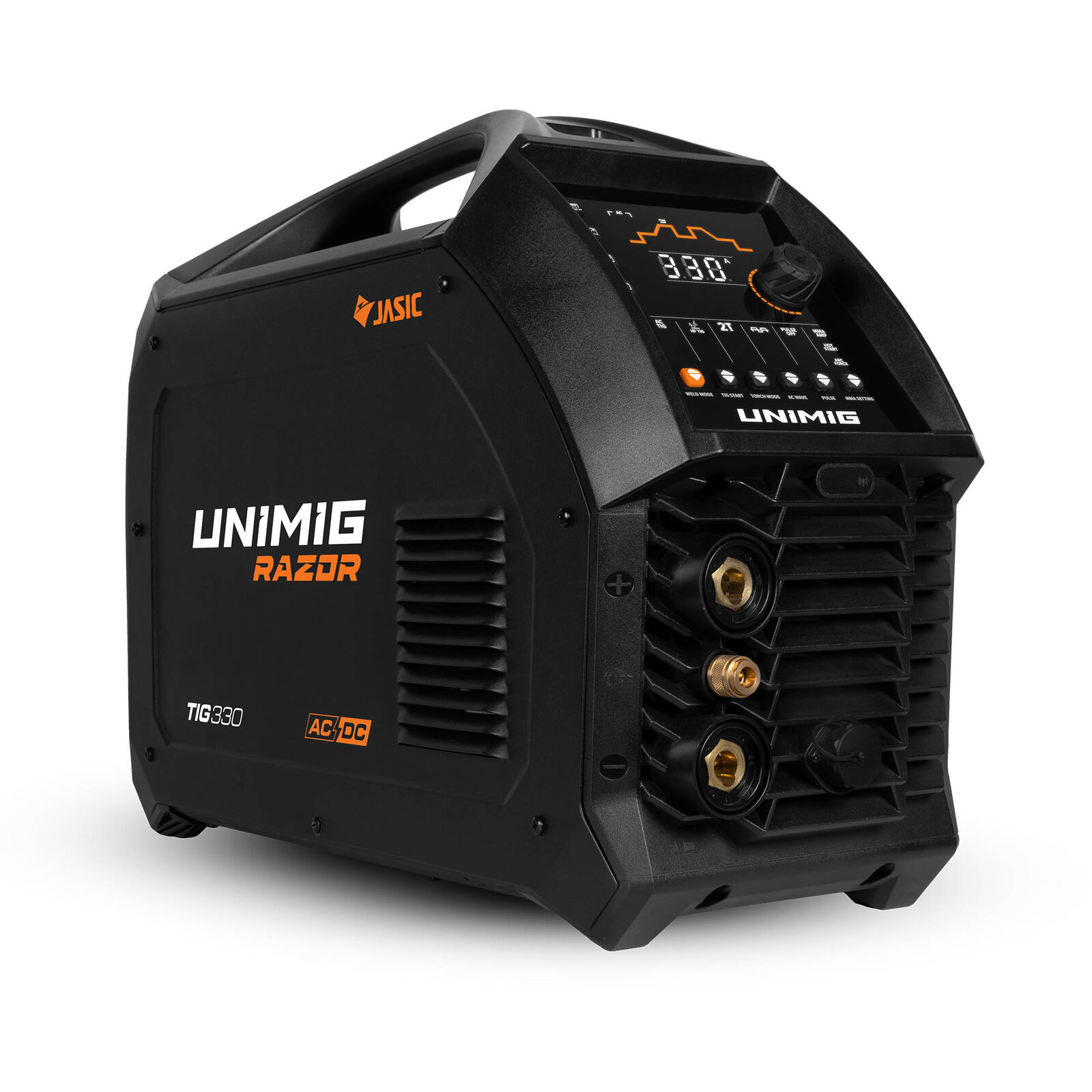

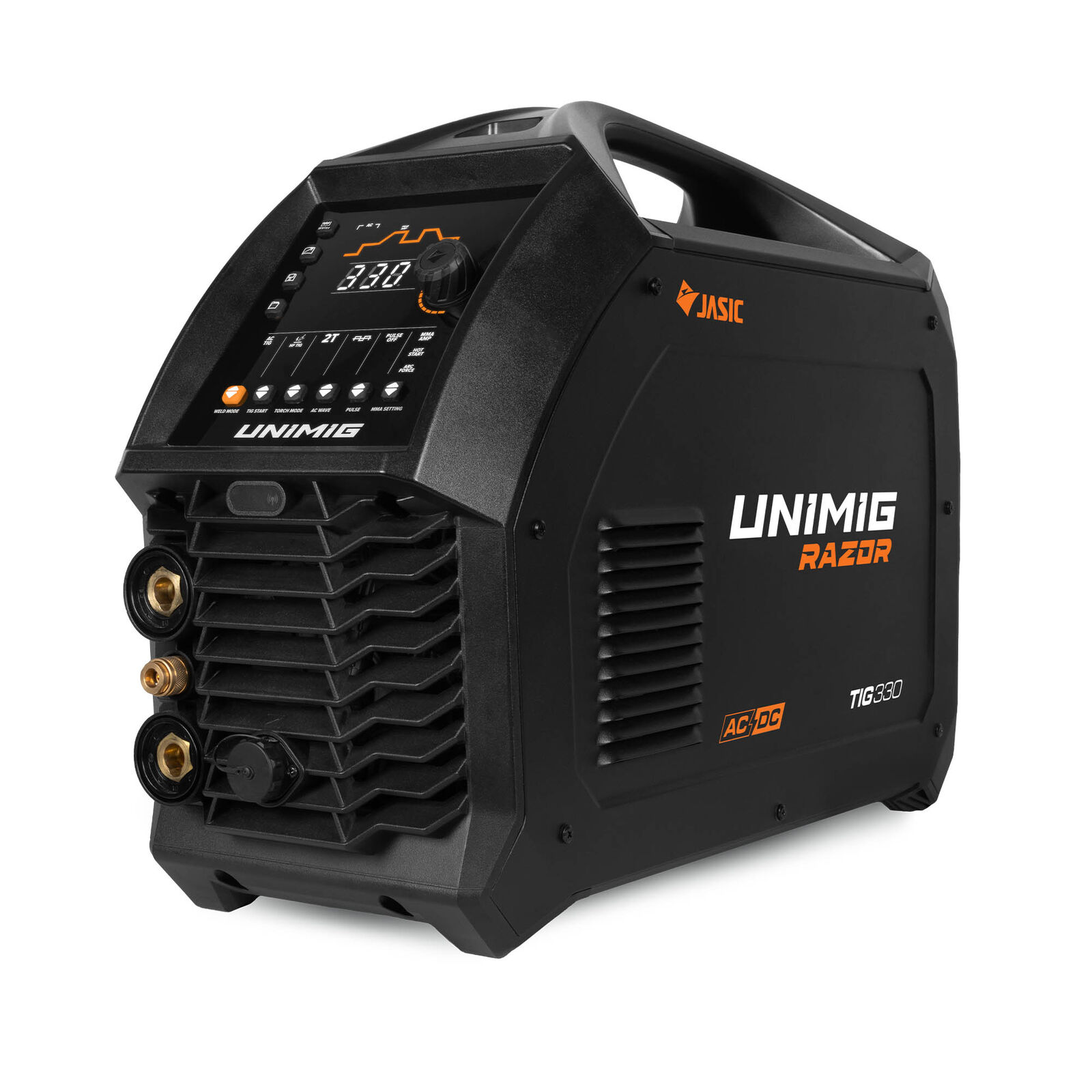

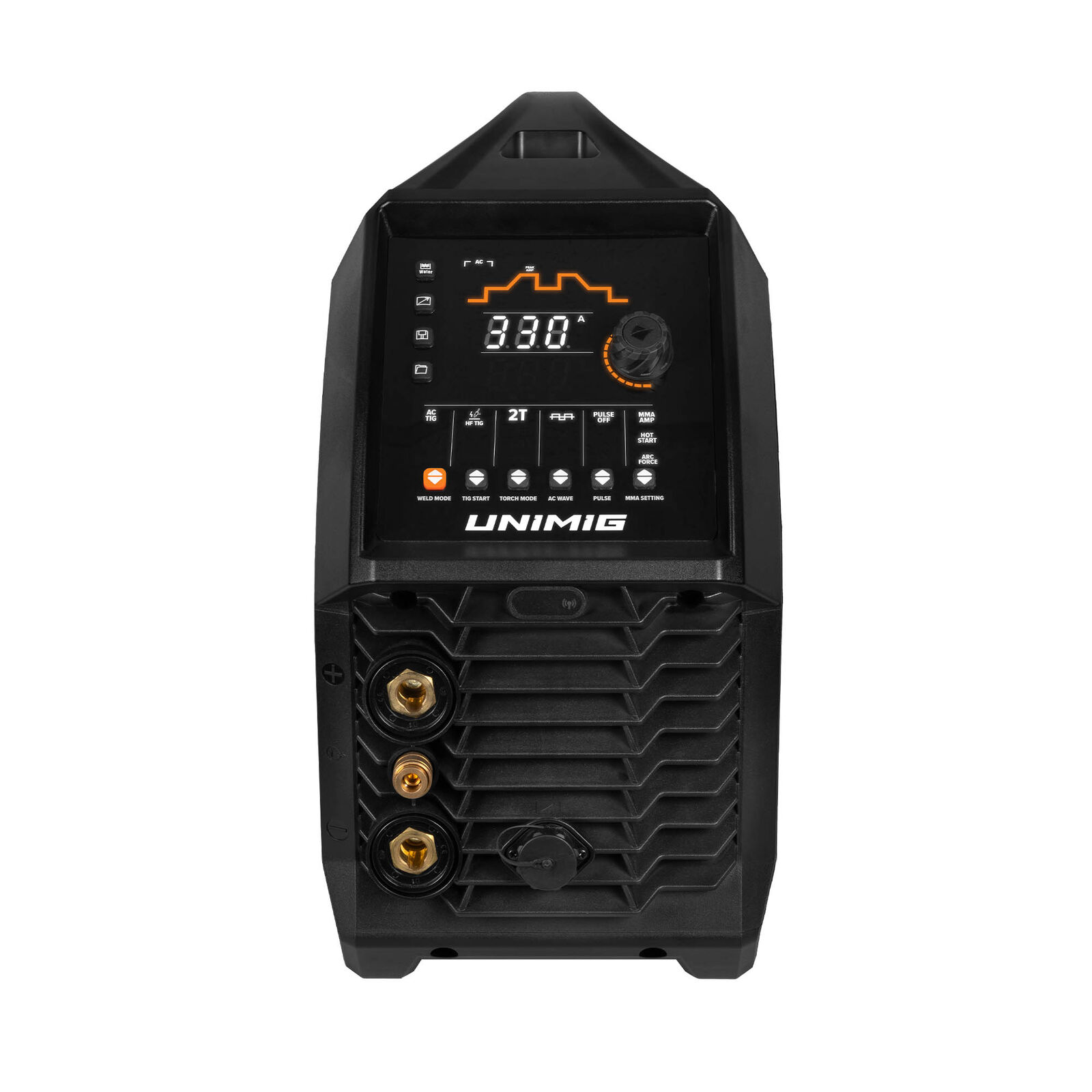

Razor STICK / TIG 330 AC /DC Unimig U11021

Get incredible results from start to finish with this professional-grade TIG welder, designed for high-end fabrication, and marine and industrial

engineering situations.

Key Features

• High-Frequency AC/DC TIG
• Mixed AC/DC
• Multiple AC Waveforms
• Pulse TIG

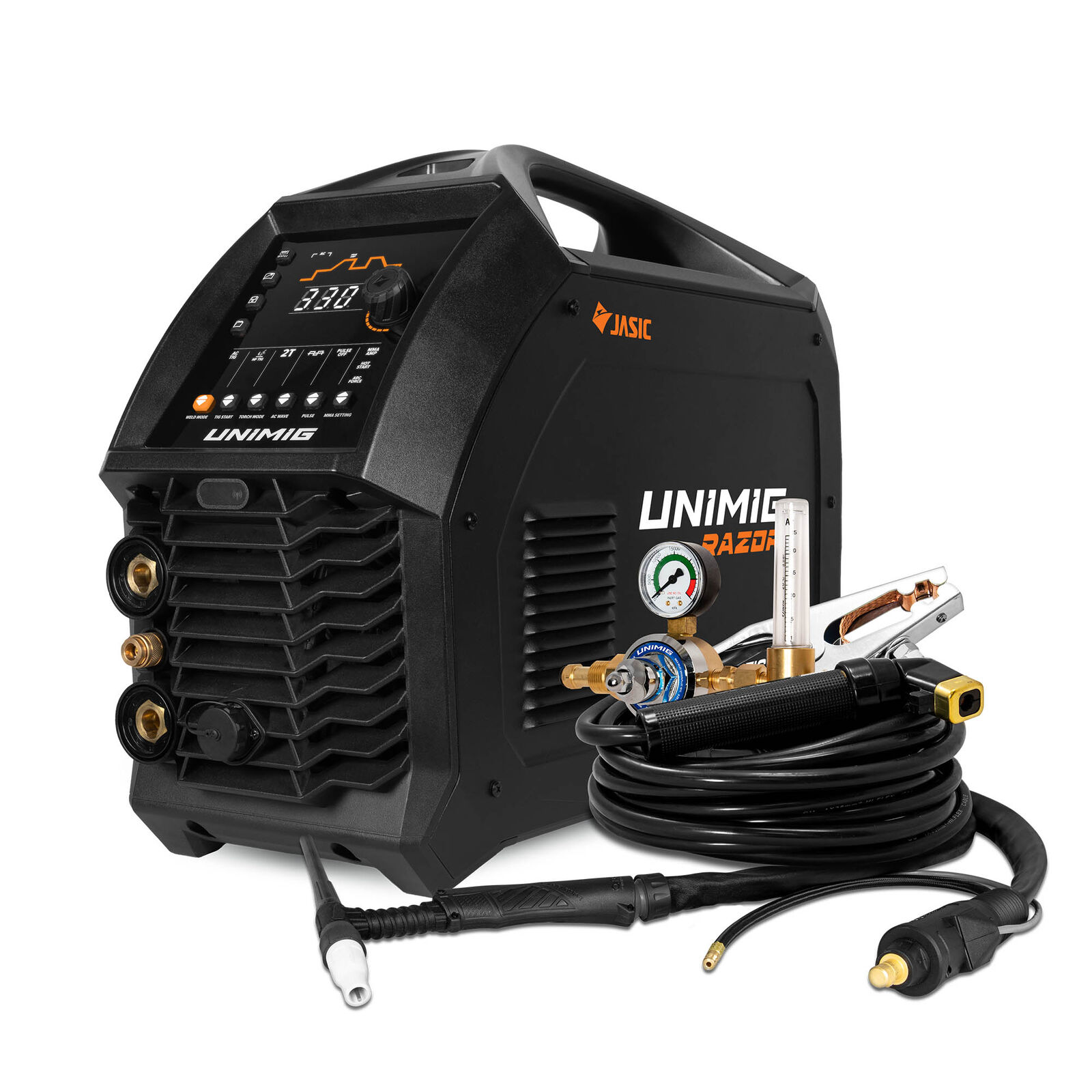

PACKAGE CONTENTS

• RAZOR 330 AC/DC Welder
• 4m T2 TIG Torch
• 4m Twist Lock Electrode Holder
• 4m 500 Amp Earth Clamp & Lead
• Argon Flowmeter
• 1.8m Quick-Connect Gas Hose
• Operating Manual

Specifications

• SKU U11021
• Primary Input Voltage 415V Three-Phase
• Supply Plug Unplugged (32A Recommended)
• Open Circuit Voltage - OCV (V) 71.0
• Protection Class IP23S
• Insulation Class H
• Minimum Generator (kVA) 20
• Standard AS 60974.1
• TIG Duty Cycle @ 40°C 30% @ 330A, 60% @ 223A, 100% @ 181A
• MMA Duty Cycle @ 40°C 30% @ 270A, 60% @ 190A, 100% @ 148A
• Dimensions (mm) 568x230x416mm
• Weight (kg) 23.8
• Package Dimensions (cm) 682x332x562
• Package Weight (kg) 36.5

Part Number/SKU: U11021

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
