Razor TIG 330 AC/DC Water-Cooled Package Unimig U11639

Package Includes:

• U11021
• U11022
• T3W-3KHL-8M
• U11028- (coolant)

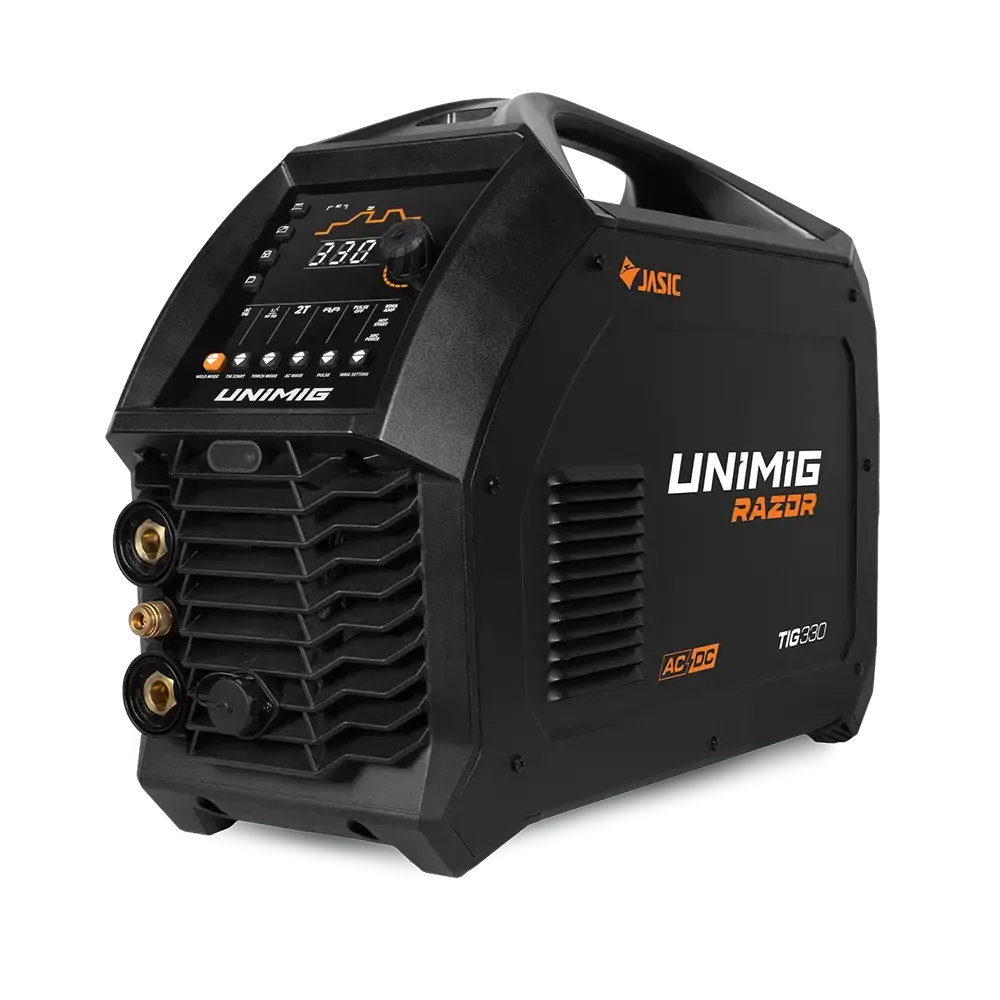

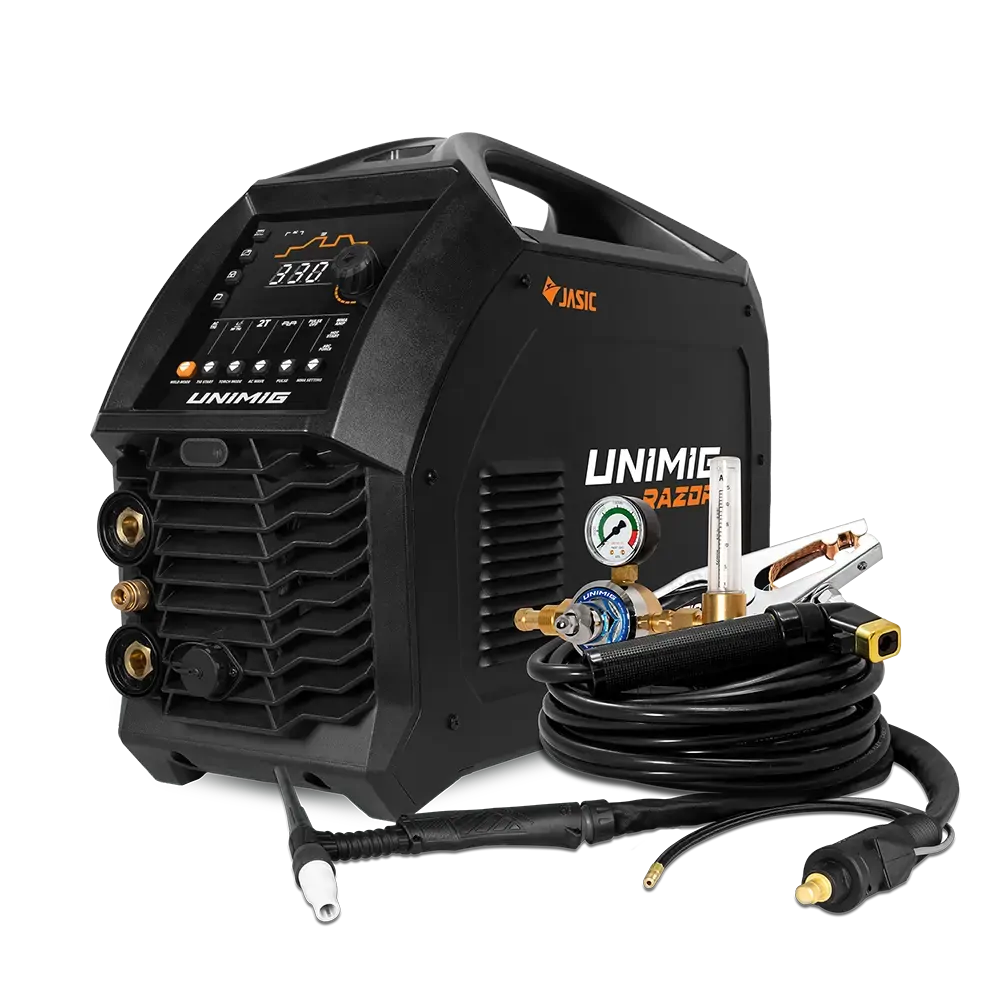

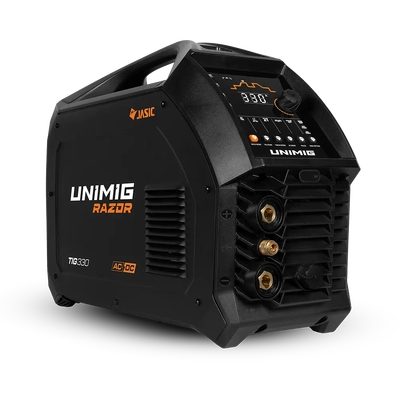

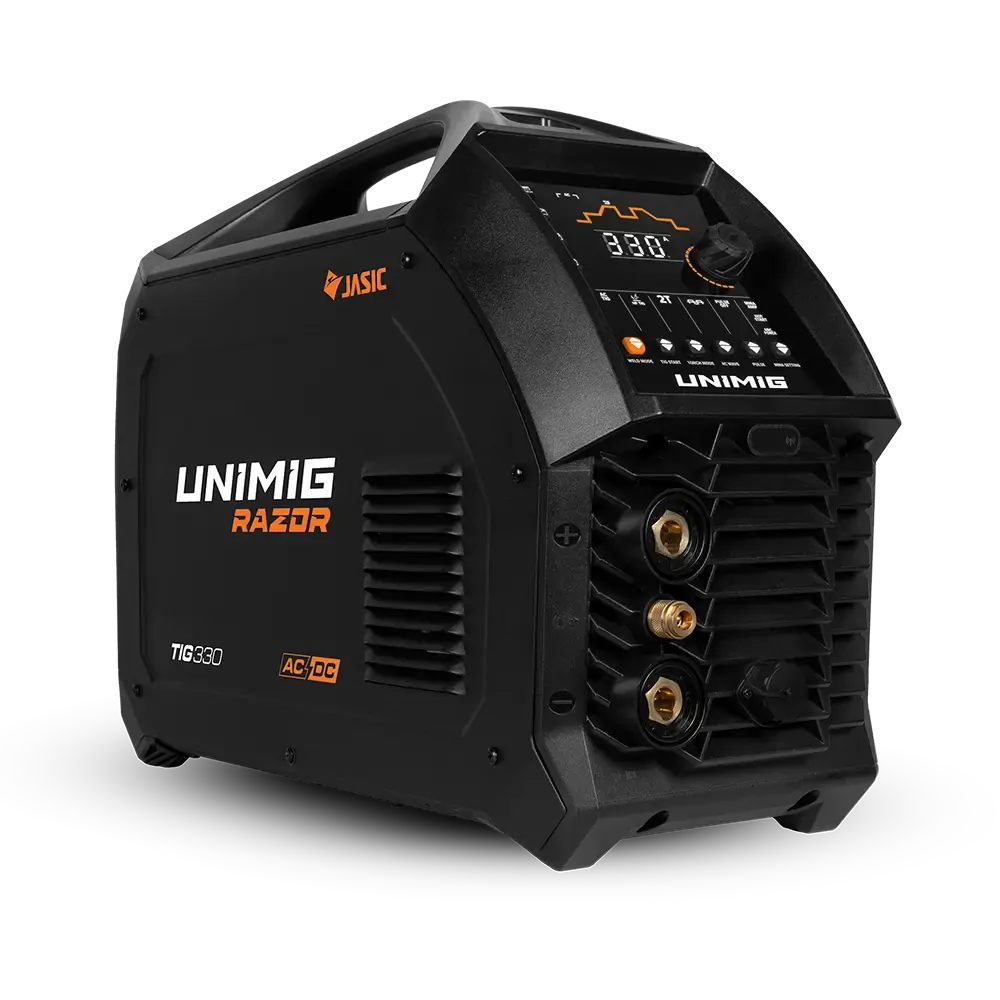

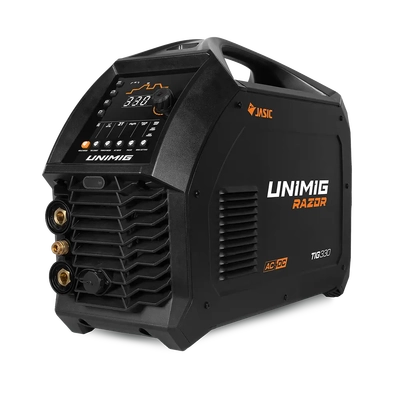

Razor STICK / TIG 330 AC /DC Unimig U11021

DESCRIPTION:

The UNIMIG RAZOR TIG 330 AC/DC (model U11021) is a professional-grade, inverter-based TIG/MMA welding machine designed for high-end fabrication, marine and industrial engineering applications. It features full AC and DC TIG capability with advanced waveform control, making it ideal for aluminium, stainless steel, mild steel, titanium and exotic alloys. With its mixed AC/DC mode, foot-pedal readiness, job memory function, and generator compatibility, this unit offers serious capability for trades, fabrication shops, boat and marine build-outs, and heavy-duty TIG requirements.

FEATURES:

• HD Backlit Interface: This next-generation interface panel is bright and easy to read in any environment.
• Ultimate TIG Welding: Weld every kind of metal. With the ability to run on an Alternating Current (AC) you’re able to weld aluminium as effortlessly as mild and stainless steels on a Direct Current (DC).
• Multiple AC Waveforms: Completely customise your aluminium welds. Switch between Sine, Square, and Triangle waves to change the arc characteristics, bead profile, and penetration to suit your weld.
• Sine: The slow, smooth transition between positive and negative provides a consistent weld and good wetting in the toes.
• Square: The rapid transitions between positive and negative provide a stable arc, deep penetration, faster travel speeds, and a fast-freezing puddle.
• Triangle: The fast transitions between positive and negative and minimal heat input make it optimal for maintaining weld quality on thin or delicate materials.
• Mixed AC/DC: Experience the best of both worlds. Mixed AC/DC combines the efficiency of AC and the penetration of DC- TIG in one weld. With it, you get faster welding speeds, better penetration, a faster weld puddle on cold workpieces, and you can weld on thicker materials.
• Foot Pedal Ready: Enjoy greater control and precision with our optional foot control accessory. This handy feature allows you to easily adjust your TIG amperage on the fly, without interrupting your torch movement. Wireless and wired options available.
• Inverter Technology: Not every inverter is made equal. With UNIMIG's ever-evolving, state-of-the-art IGBT Inverter technology, you get better performance, better efficiency, and better reliability.
• Smart Fan: Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimizes the number of contaminants being pulled through the machine.
• IP23S: Rated IP23S, so it’s protected from touch by fingers and objects greater than 12mm, and water spray less than 60° from vertical while still.
• Advanced MMA Features: Advanced MMA features are designed for improving weld quality and ease of use.
• Arc Force: The Arc Force feature helps to keep the arc stabilised throughout the weld, by increasing or decreasing the peak current to compensate for your arc length, preventing the arc from cutting out or the electrode from sticking.
• Anti-Stick: The Anti-Stick feature, which is always on, prevents your electrode from sticking to your workpiece. When the machine detects sticking, the current will drop significantly, so the electrode can be removed.
• Hot Start: The adjustable hot start is designed to help with striking an arc. The hot start temporarily boosts the output current at the start, making striking an arc, even with difficult electrodes, much easier. You get smoother arc starts, improving the quality of your weld.
• High-Frequency TIG: Maximise your results from start to finish. A high-frequency torch can start an arc without contacting the workpiece, reducing the risk of contaminating the tungsten or the weld. It also means you get access to the entire TIG weld cycle, including pre- and post-gas and up- and down-slope parameters.
• Lift Arc Start TIG: Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the workpiece and lifting it up to start the arc. This stops the tungsten tip from sticking to the workpiece and breaking the tip from the tungsten electrode.
• Water Cooler Compatible: Get greater performance on every weld. Connect the water cooler unit to remove excessive heat, extending the weld time and the life of your consumables. When combined with the T3W Water-Cooled TIG Torch, which uses Bi-Flow™ Technology, you get greater performance from the TIG torch.
• Job Memory: The job memory function allows you to enter and store weld parameter settings. Weld parameters can be further adjusted and stored as required. A total of 40 jobs can be memorised and stored for recall.
• Generator Compatible: Take it anywhere. Connect the machine to a generator and use it wherever, whenever you need it. We recommend a 20kVA for this machine.

MACHINE SPECIFICATIONS:

TIG SPECIFICATIONS:

MMA SPECIFICATIONS:

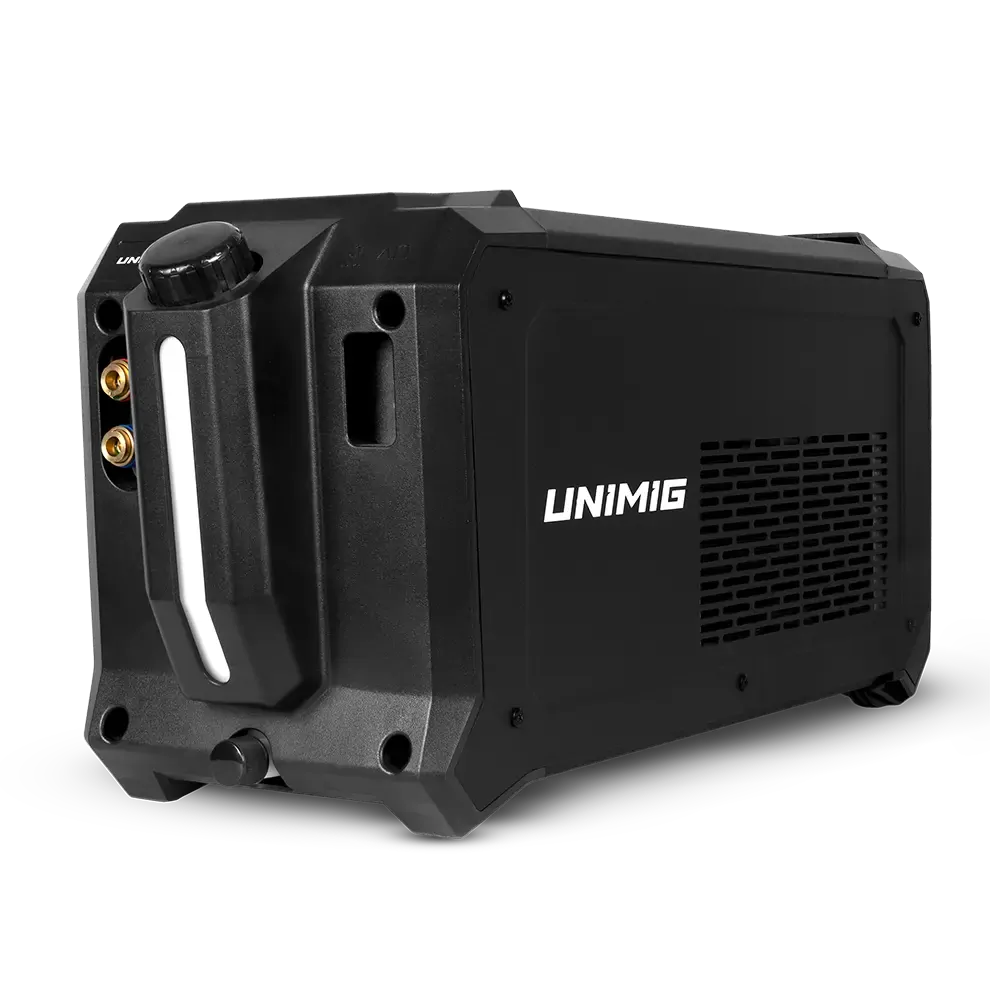

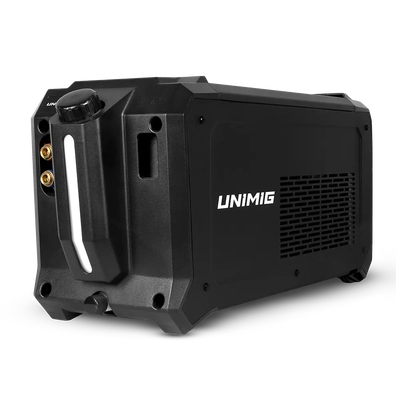

RAZOR TIG 330 AC/DC Water Cooler Unimig U11022

DESCRIPTION:

The UNIMIG RAZOR TIG 330 AC/DC Water Cooler (Model U11022) is an advanced cooling accessory designed specifically for high-performance TIG welding. Built to complement the RAZOR TIG 330 AC/DC welder series, this water cooler enables sustained welding at elevated amperages by keeping the torch and associated gear at optimal temperature. With Bi-Flow cooling chambers and robust engineering, it reduces thermal fatigue on consumables and maintains consistent arc performance — a must for heavy-duty TIG fabricators and welders working extended durations.

FEATURES:

• Weld at higher amperages and for longer periods of time without overheating
• Extend the life of the TIG consumables when combined with the T3W Water-Cooled TIG torch
• Bi-Flow Technology - a series of high-capacity cooling chambers - removes excessive heat at the source, allowing greater performance from the TIG torch

SPECIFICATIONS:

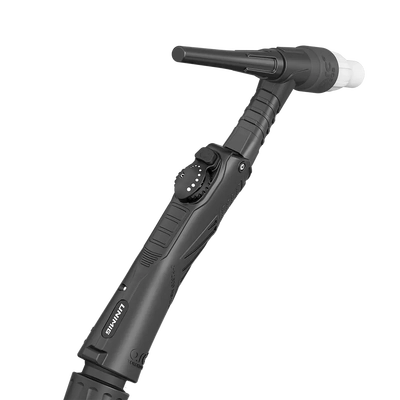

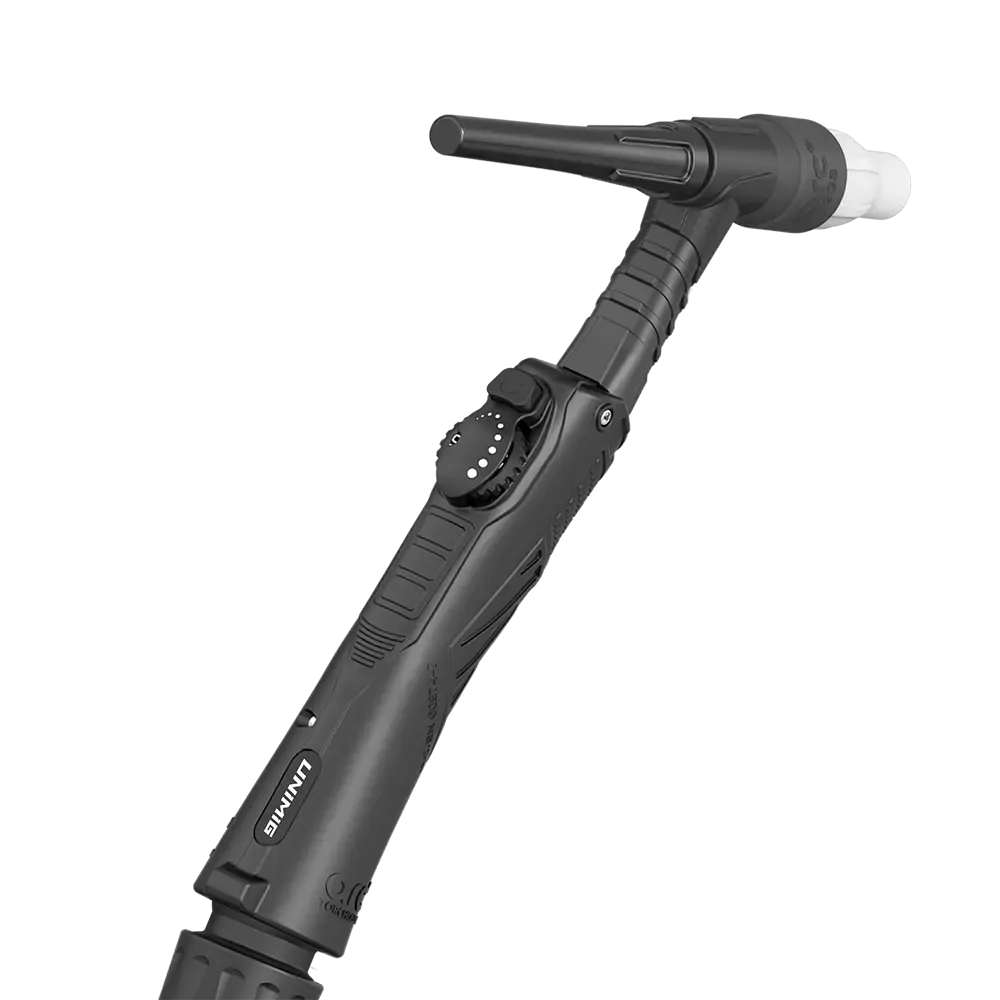

8m T3W Water-Cooled TIG Torch Unimig T3W-3KHL-8M

DESCRIPTION:

This water-cooled torch has been designed for maximum performance in every environment. The Arc Torchology T3W Water-Cooled Torch comes equipped with exclusive torch technologies and a flex-head.

FEATURES:

• Force Cool Technology: Stay cooler for longer. A series of passages and wells are built into the consumables, effectively force-cooling the collet, maximising conductivity and extending consumable life.
• Heat Zone Isolation Technology: A unique external barrier isolates heat transferred from the ceramic cup using air pockets in the torch's structure, keeping the torch running cooler and enhancing its power-to-weight performance ratio.
• Tungsten Release System: Instantly release your tungsten with a twist. With a 180° twist of the back cap, you get a trouble-free extension of the electrode with no need to remove any other parts to extend it.
• Bi-Flow Technology: Eliminate excessive heat from your torch. High-capacity cooling chambers remove any excess heat at the source, boosting the performance of a smaller torch body.
• 28% Better Power-to-Weight Ratio: Get better performance than an 18 Series water-cooled torch in a torch the same size as a 17 Series.
• Longer Consumable Life: Get superior life out of every consumable. Designed for maximum performance, you’ll get 20x longer life with Arc Torchology consumables.
• Ceramic Performance: The Arc Torchology ceramic cups lasted up to 5x longer, withstanding the maximum amperage for 200 hours vs the WP26's 40 hours.
• Collet Performance: The Arc Torchology collets lasted up to 10x longer, withstanding the maximum amperage for 100 hours vs the WP26's 10 hours.
• Gas Lens Body Performance: The Arc Torchology gas lens body lasted up to 20x longer, withstanding the maximum amperage for 600 hours vs the WP26's 30 hours.
• Customisable Controls: Weld the way you want to with a range of interchangeable torch potentiometers for every style.
• Consumables For Every Occasion: Get consumables to match your welding requirements, no matter the application or environment.
• Standard: A versatile all-rounder, the standard TIG consumables are a great choice for most welds.
• Gas Lens: The gas lens consumables are perfect for those jobs where more gas or a longer stickout is needed without the risk of contamination.
• Super: For maximum performance and 5x longer consumable life, get the best coverage possible with our Super Series range, and you’ll never have another contaminated weld.
• Quartz: Get unmatched visibility with the quartz cups. Made with specially tempered glass, they’re extra heat-resistant, and they’re see-through.
• Flex-Neck Torch Head: Bend your torch head to any angle you need. Arc Torchology torches come with a flexible torch head as standard, allowing you to access tight and cramped spaces when you need to.
• Tested to Last: Arc Torchology cables undergo rigorous lab testing, enduring over 500,000 flex cycles to ensure maximum durability and long-lasting performance to withstand the toughest welding conditions.

TORCH SPECIFICATIONS:

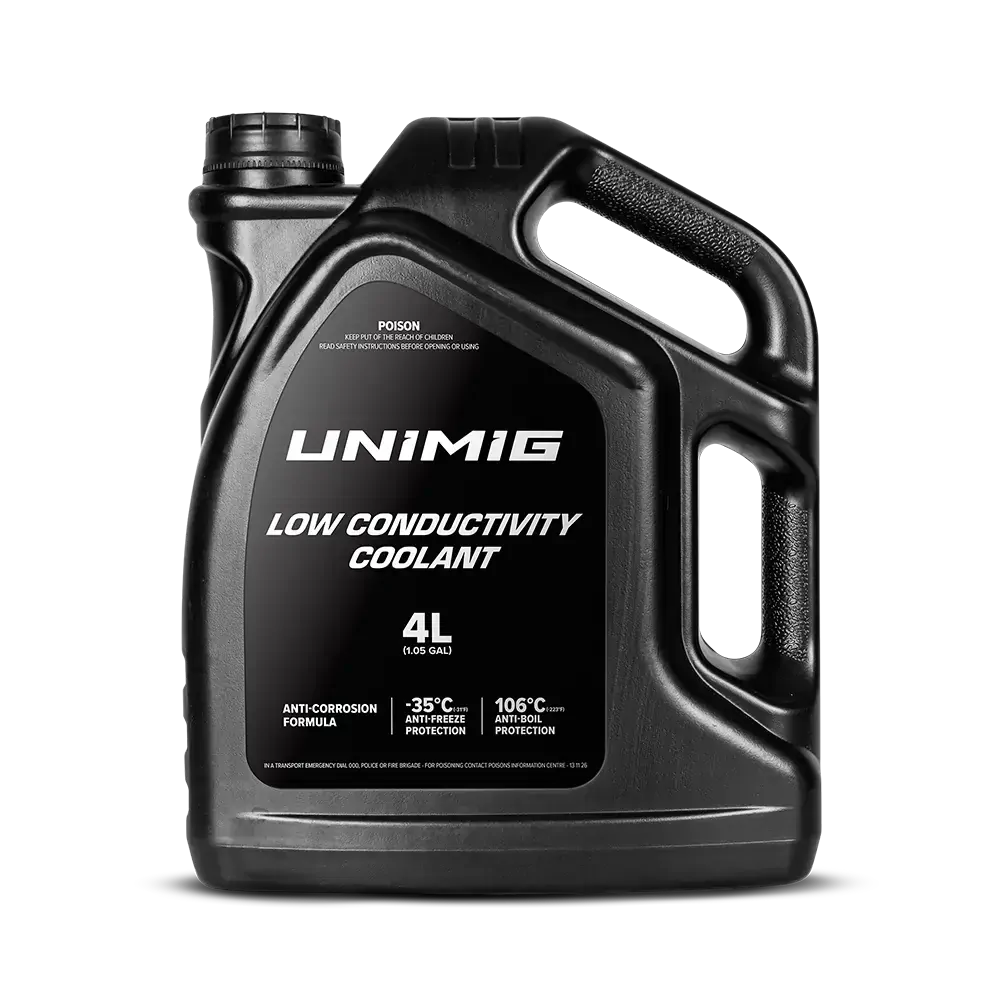

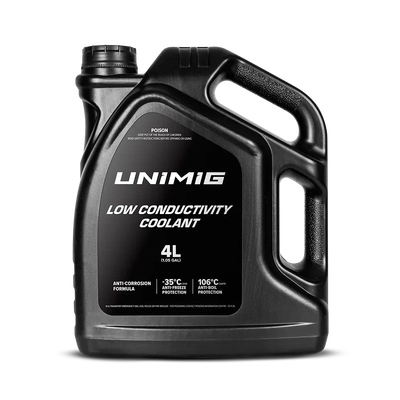

Low Conductivity Coolant 4L Unimig U11028

DESCRIPTION:

A balanced recirculation system and welding torch coolant, this Low Conductivity Coolant contains rust and corrosion inhibitors that help extend the life of the cooling system components. Its thermal stability properties also make it an excellent choice for high-performance torches.

FEATURES:

• Formulated for use with MIG welding, TIG welding, laser welding, laser cutting, plasma cutting and robotic systems, and is suitable for use in warm or cold climates
• -35°C anti-freeze protection
• 106°C anti-boil protection

SPECIFICATIONS:

Part Number/SKU: U11639
