Platinum PX 17/18/26 Series Standard Diameter 1.6/2.4/3.2mm Weldclass WC-01662

KEY FEATURES:

• All-in-one, ready-to-weld kits: included all parts needed to fit 17/18/26 torch head & start welding, including 1.6/2.4/3.2mm tungstens
• All parts are available as individual items: purchase replacement items as needed
• High-temperature pyrex-style glass cups provide superior arc visibility compared to ceramic cups
• Mesh/gauze filter for smooth gas flow improves weld quality and allows longer tungsten stick-out
• Wedge collet system ensures reliable clamping of tungsten & prevents twisting

APPLICATION:

• Benefits experienced and beginner operators alike
• Especially useful when welding in corners or tight spaces
• Fits common 17/18/26 series TIG torches
• Compatible with Unimig pyrex 17/18/26 series parts

MORE INFO:

• Available in standard diameter (cup is 14mm ID) and large diameter (cup is 29mm ID)
• On large diameter series, the cup is adjustable allowing variable (short or long) tungsten stick-out length

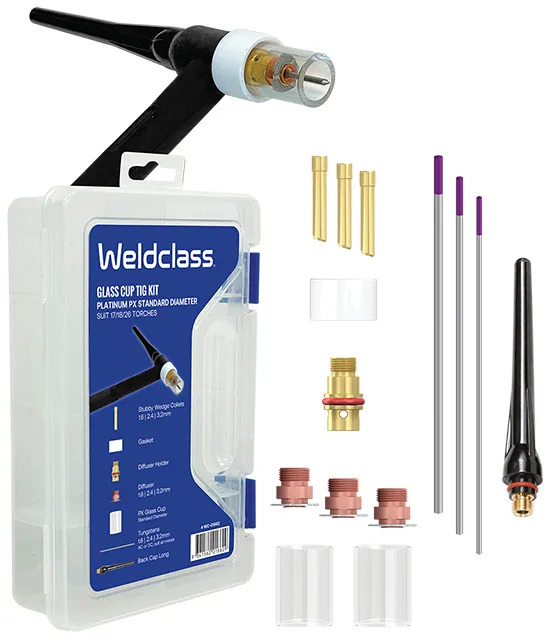

PARTS KIT INCLUDE:

• Heat shield/insulator x 1
• Stubby wedge collet 1.6/2.4/3.2mm x 1 each
• Collet body/diffuser holder with o-ring x 1
• Diffuser/gas lens with gauze 1.6/2.4/3.2mm x 1 each
• Glass nozzle/cup x 2
• Long back cap x 1
• All-metal (DC & AC/DC) tungsten electrodes 1.6/2.4/3.2mm x 1 each

Part Number/SKU: WC-01662

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
