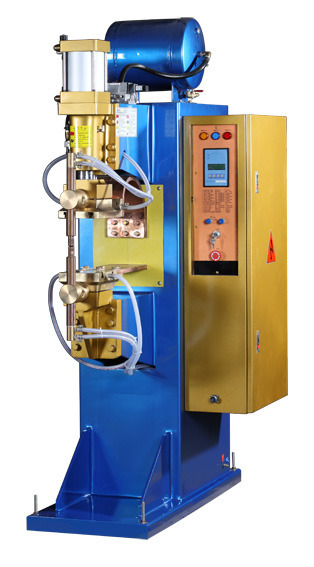

MF250 Kva Medium Frequency Inverter Spot Welder

Advantage:

  • Low cost inverter resistance welding
  • Strong energy serving
  • Load balance on the three phase power
  • Better quality
  • Welding process every 1.0ms (in the MF 1000 models equipped with inverters that work at 1000 Hz) or even every 0.2ms in the MF 5000 models equipped with inverters that work at a frequency of 5000 Hz). We’re talking about response times of up to 100 times lower than those obtainable with the conventional spot welders - operating at 50 Hz - where the minimum adjustment time of each cycle is 20ms.
  • Reduction of indentations and deformations , a decrease in heat loss in the piece itself and in the electrodes, and the ability to combine at a high level of quality, critical materials which are difficult to weld.


Technical Data



Parameter/Model

MF-50KVA

MF-90KVA

MF-150KVA

MF-170KVA

MF-250KVA

MF-300KVA

Rated Capacity

50KVA

90KVA

150KVA

170KVA

250KVA

300KVA

Rated Duty Cycle

50%

50%

50%

50%

50%

50%

Max Welding Current

18500A

23500A

32000A

40500A

56500A

80000A

Electrode Stroke

75MM

100MM

Welding Arm Spacing

260MM

320MM

Air Source Pressure

0.6MPa

Cooling Water Flow

16L/Minute

25L/Minute

35 L/Minute

45L/Minute



* Some Spot Welders require special electrical requirements. If you are unsure an electrician can help determine what is needed with our Spot Welder Calculators.

Alternative SKU: YES

Part Number/SKU: EBMF250KVA

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU EBMF250KVA
Brand Easybeat
Shipping Weight 200.0000kg
Shipping Width 1.000m
Shipping Height 1.800m
Shipping Length 1.200m
Shipping Cubic 2.160000000m3
