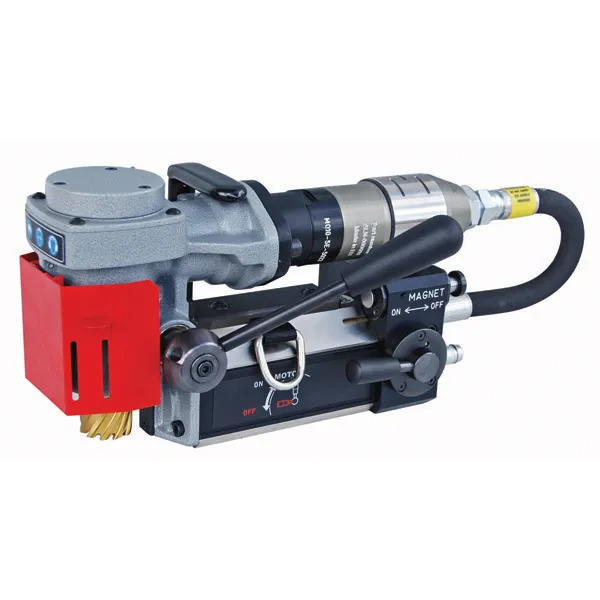

Air 35 Pneumatic Magnetic Base Angle Drill Holemaker HMP35AD-ATEX

The HMP35AD is a small portable pneumatic drilling machine which allows holes to be drilled up to 35mm diameter in places with restricted space, using standard 3/4" Weldon Shank cutters. This machine is the lowest height pneumatic magnetic drill currently available on the world market. The combination of pneumatic drive and permanent magnetic base eliminate the need for electric power supply thus making this machine an ideal solution in many hazardous environments such as oil drilling platforms, mining industry, shipbuilding or petrochemical industry.
*12mm twist drill capacity using Weldon Shank twist drill bits.

Both the machine and the body of the HMP35AD-ATEX drill is certified ATEX II2G/D C IIC T6;T4 and meets the requirements for use in areas with a risk of explosion.

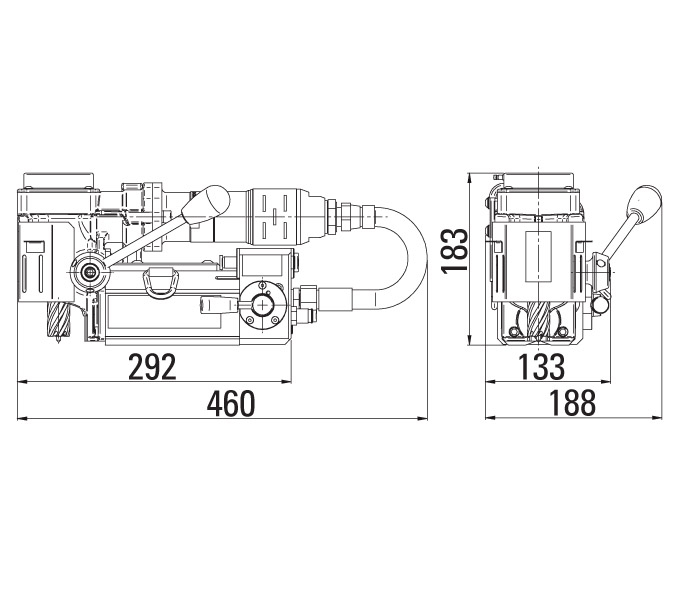

SPECIFICATIONS

  CAPACITY (Diameter)    35mm
  CAPACITY (Depth)   25mm
  MOTOR   800 Watt Pneumatic, 1400L/Min
  WEIGHT    13 kg
  HEIGHT    183mm Constant working Height
  STROKE      39mm
  MAGNETIC DEAD LIFT    6500Nm on 25mm Steel Plate




Part Number/SKU: HMP35AD-ATEX

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU HMP35AD-ATEX
Brand Holemaker
Shipping Weight 15.0000kg
Shipping Width 0.500m
Shipping Height 0.600m
Shipping Length 0.600m
Shipping Cubic 0.180000000m3
Unit Of Measure ea
