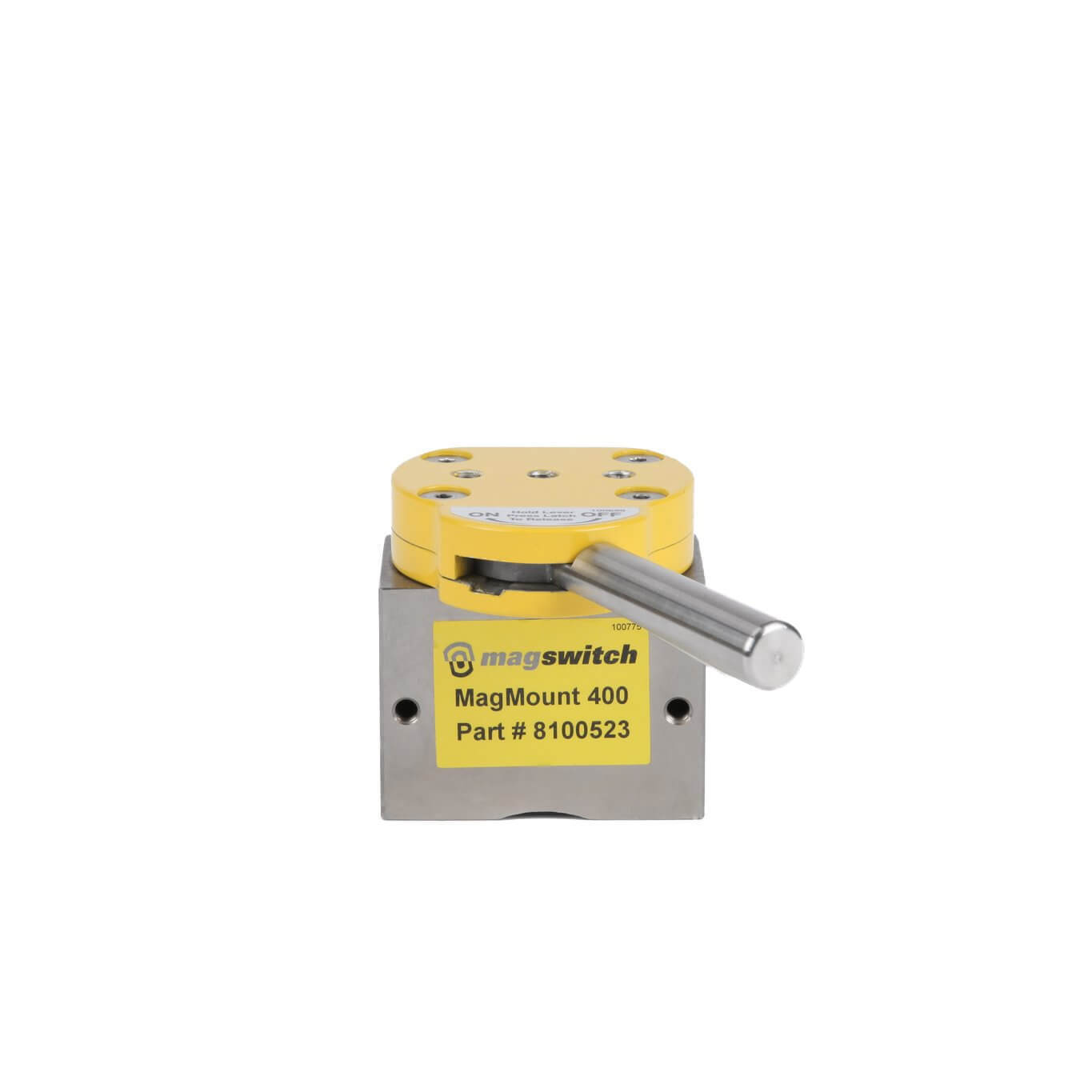

Mag Mount 400 Magswitch 8100523

SPECIFICATIONS

• Max Breakaway: 420 lbs (190.5 kg) on 3/8” steel
• Full Saturation Thickness: 1/4” (6 mm)
• Product Weight: 2.4 lbs (1 kg)
• Dimensions: 4.6 x 3.2 x 2.6 in (116.8 x 81.2 x 66 mm)
• Magnetic Pole Footprint: 64 mm x 41.26 mm

MagMount 400 allows for easy movement and placing of a tool. With a single On/Off lever, you have 400 pounds of magnetic hold force at your disposal. The top of the tool is ready for mounting a variety of accessories.

Features

• Magnet turns completely On and Off.
• Magnet stays clean.
• Does not use an electrical power source.
• Holds flat and round surfaces of steel.
• Fixed bar magnet is for flat steel
• Swivel bar magnet is for round or uneven shapes.
• Multiple threaded holes on the top.

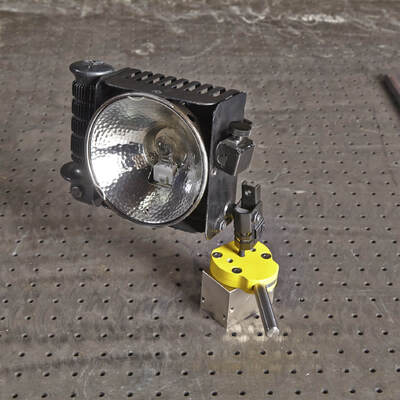

• Perfect for top mount tools, measuring and security devices.

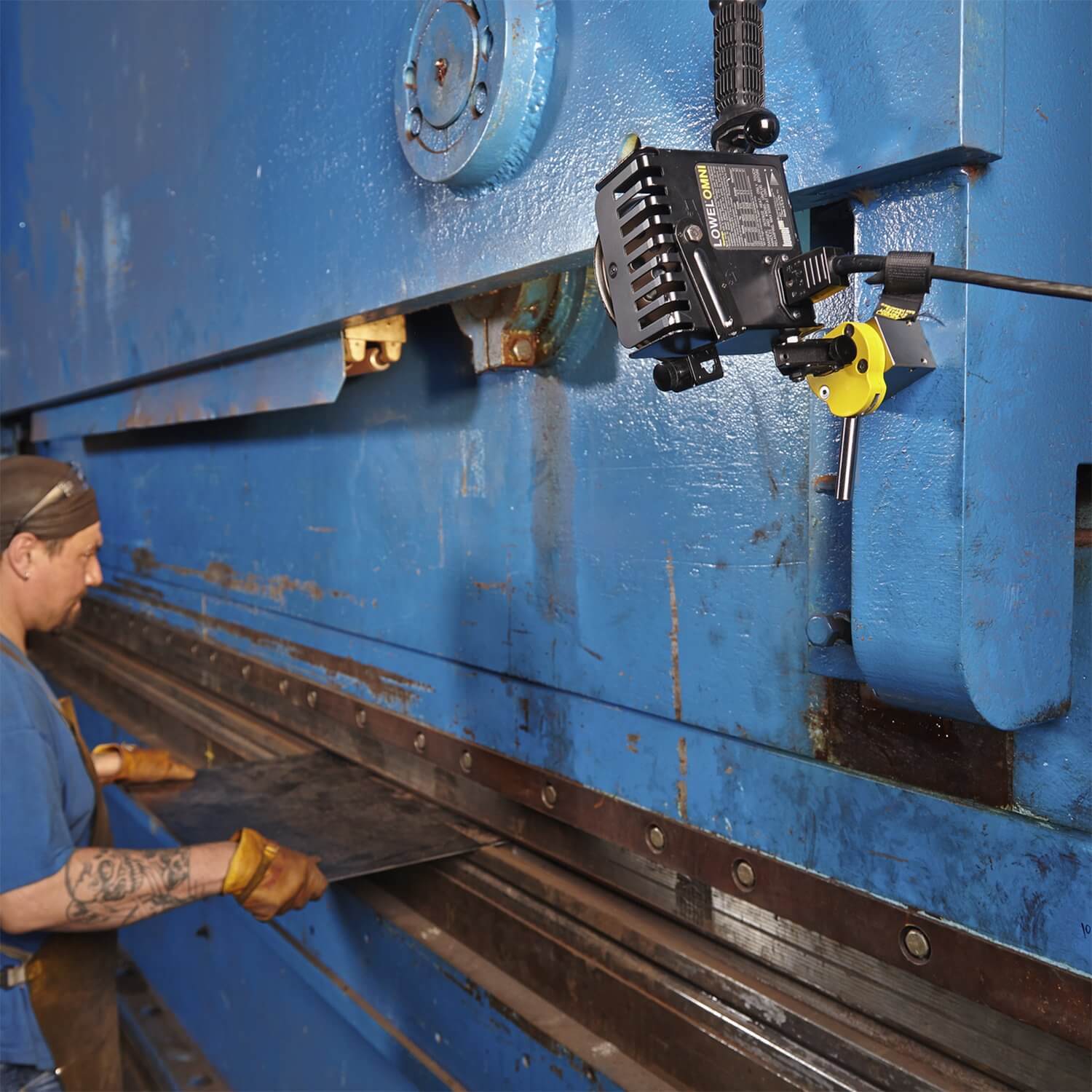

• Versatile and can be used in fixed plant or job site applications, or for items being transported.
• 90 degree actuation, fast precise positioning with strong hold.
• The top mount magnets feature two magnets are ideal for supporting fixtures over a distance.

Part Number/SKU: 8100523
