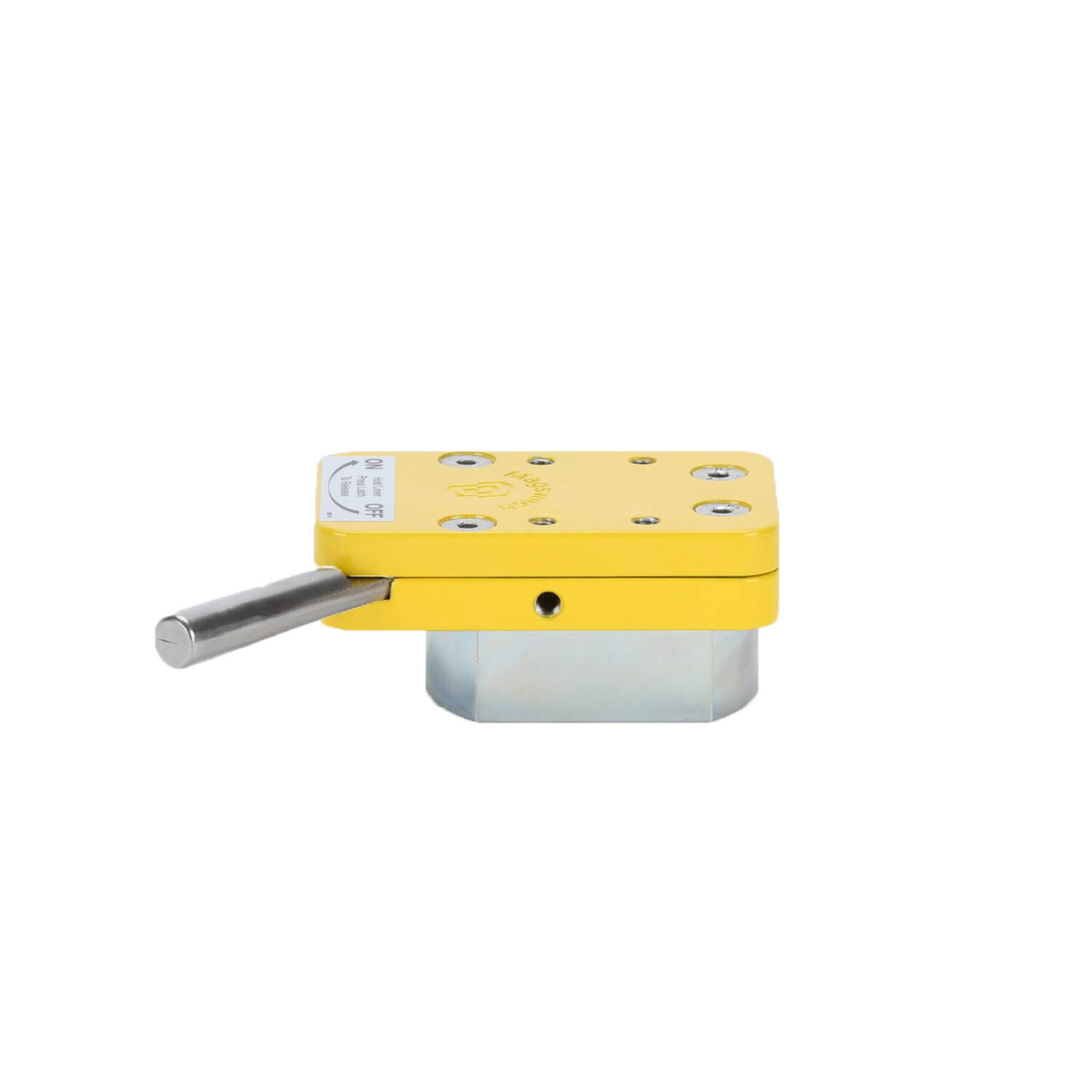

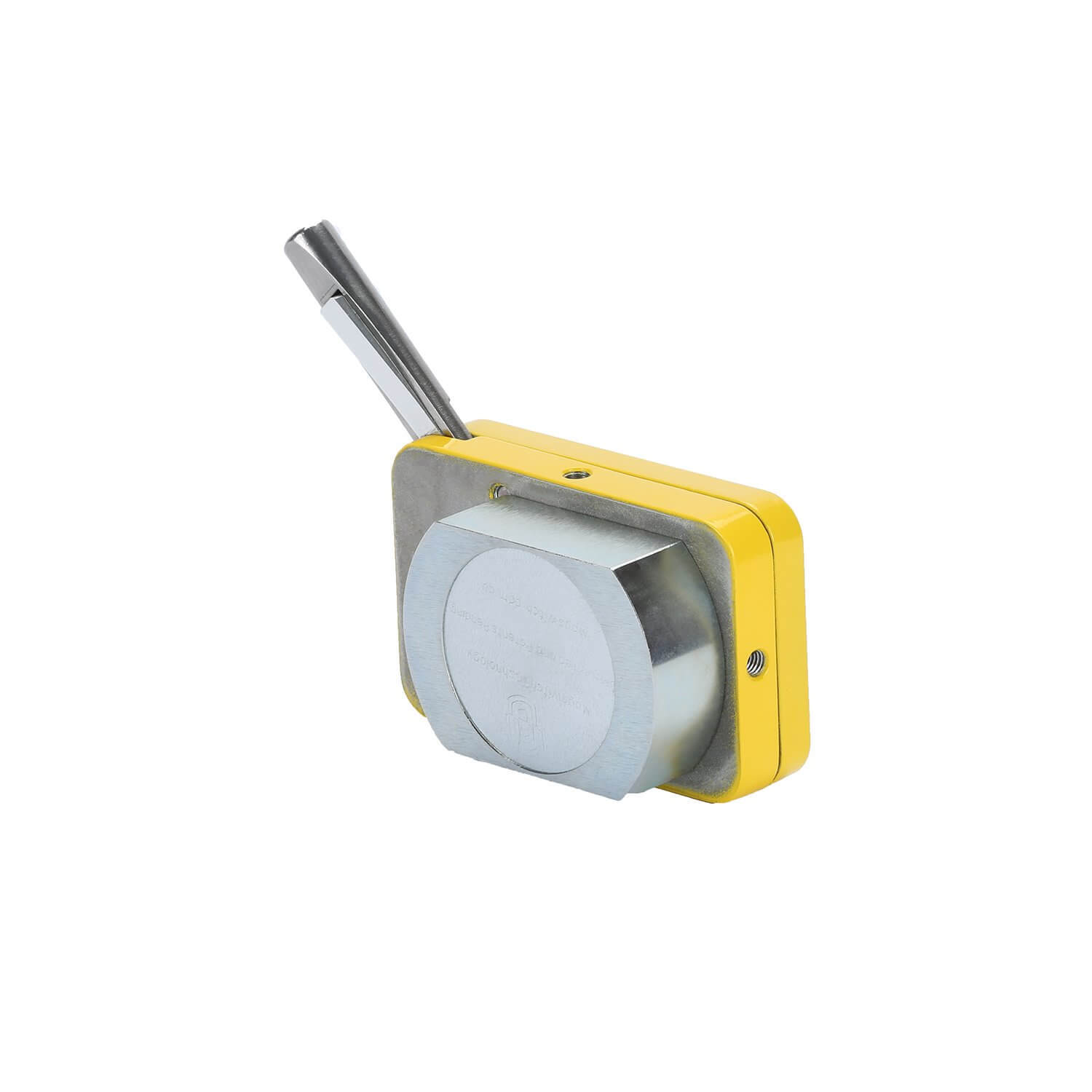

Mag Mount 300 Magswitch 8100595

MagMount 300 allows for easy movement and placing of a tool. With a single On/Off lever, you have 300 pounds of magnetic hold force at your disposal. The top of the tool is ready for mounting a variety of accessories.

Features

• Magnet turns completely On and Off.
• Magnet stays clean.
• Does not use an electrical power source.
• Holds flat and round surfaces of steel.
• Fixed bar magnet is for flat steel
• Swivel bar magnet is for round or uneven shapes.
• Multiple threaded holes on the top.
• Perfect for top mount tools, measuring and security devices.
• Versatile and can be used in fixed plant or job site applications, or for items being transported.
• 90 degree actuation, fast precise positioning with strong hold.
• The top mount magnets feature two magnets are ideal for supporting fixtures over a distance.

SPECIFICATIONS

• Max Breakaway: 246 lbs/111 kg
• Full Saturation Thickness: 3/16in/4.75mm
• 2:1 Shear Working Load: 10.6 lbs/4.8 kg
• Product Weight: 1.2 lbs/0.5 kg
• Overall Height: 1.7in/43.8mm
• Magnetic Pole Footprint: 71.8mm x 51.5mm

Part Number/SKU: 8100595

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
