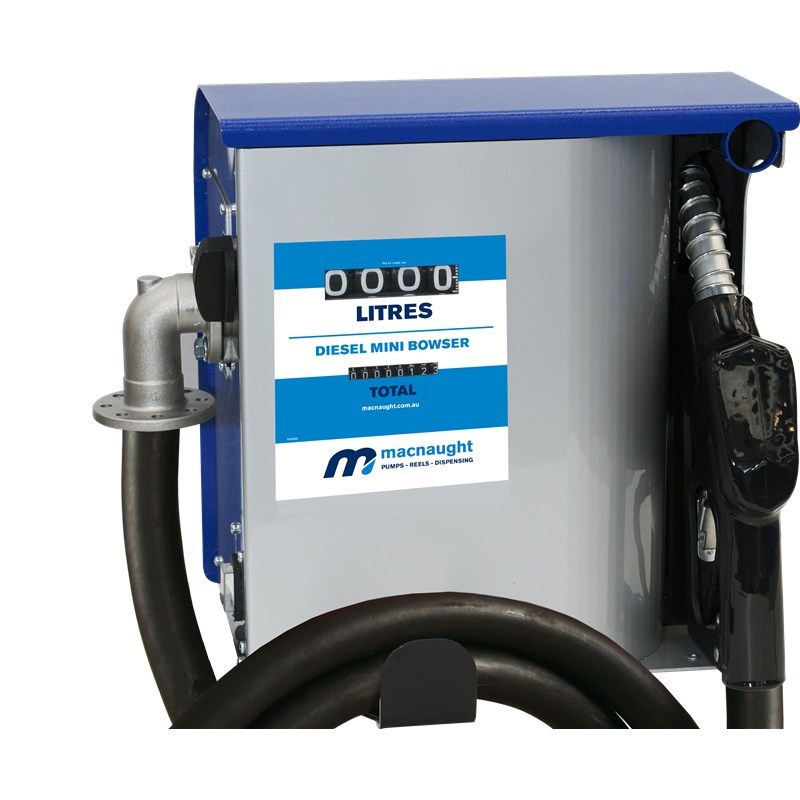

Macnaught 240V Diesel Mini Bowser

The 240V Diesel Mini Bowser offers a new pump to satisfy operators looking for a robust unit that effectively delivers high volume diesel. This compact unit comes as a complete package that allows refuelling at flow rates up to 100LPM. Equipped with an easy to use, accurate mechanical meter that can be calibrated on-site, this unit also has a smart on/off switch integrated into the nozzle holder. Extremely versatile, the bowser can be installed directly onto a wall or to an existing structure.

Features And Benefits

  • Resettable Totaliser - 4-digit resettable totaliser
  • Non-Resettable Totaliser - 8-digit accumulative total
  • Hose Hanger - Allows for neat hose storage
  • Built-In On/Off Swtich - Pump protection from overheating
  • 4m Long Fuel Hose - Long hose provides access to hard to reach fuel fill points

Technical Specifications

  • Suitable for Diesel use only
  • Flow rate up to 100LPM
  • Inlet/Outlet: 1" BSP(F)
  • 30 minute duty cycle
  • Built-in nozzle holder with on/off switch
  • IP55 protection
  • 240V pump with meter
  • 4-digit reset total
  • 8-digit accumulative total
  • 4m x 1" delivery hose with automatic nozzle
  • 1" x 2m suction hose



Macnaught 240V Diesel Mini Bowser Data Sheet

Macnaught 240V Diesel Mini Bowser Instruction Manual


Part Number/SKU: AMB100L

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

Specifications

 Maximum Flow  100LPM
 Voltage  240 volt
 Max Current  4.6 amp
 Duty cycle  30 minutes
 Inlet / Outlet  1” BSP (F)
 Motor protection rating  IP55
 Maximum prime height  2m
 Maximum pressure  36 PSI
 Wetted materials C  Cast Iron, Sintered Steel, HNBR, NBR
 Filter included  Yes
 Suitable Fluid  Diesel Only
 Net weight  28kg
 Maximum Operating Temp  -20 /+50 Deg C
 Electric cable length  2m



SKU AMB100L
Brand Macnaught
Shipping Weight 28.0000kg
Shipping Width 0.436m
Shipping Height 0.406m
Shipping Length 0.317m
Shipping Cubic 0.056114000m3
