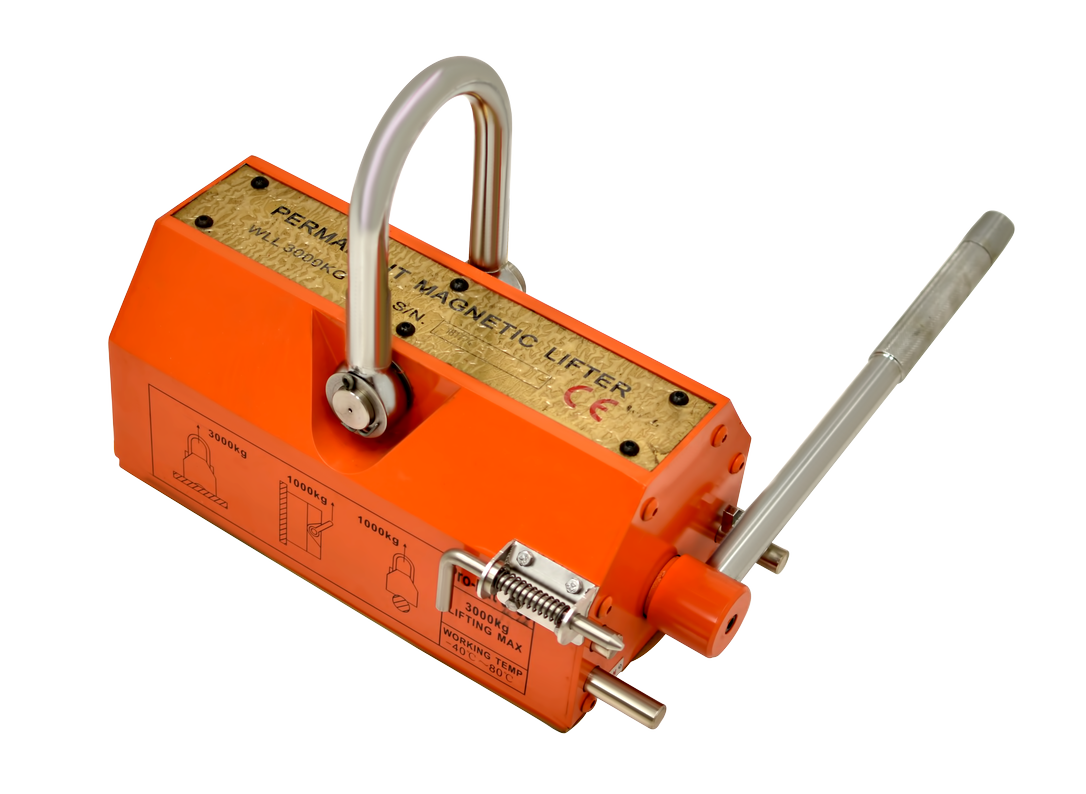

Lifting Magnet Pro-Lift 3000 Kg PL3000

Benefits

Substantially cuts production time
Commonly used for handling steel sections, beams & steel components.
Useful for transfer of steel sections on & off trucks, cutting beds, guillotines and saws.
Simple, safe and efficient.
Lifting of plates, profiles, beams, steel slabs and round sections.

Features:

Comes with an additional Safety Latch.
Load Test Certificate available on request.
3:1 safety ratio built in for optimum safety.
Lifting capacities ranging from 100kg to 6,000kg (6 tonne)

SPECIFICATIONS

 Max. Break Away   9000 Kg
 Safe Working Load   3000 Kg
 Full Saturation Thickness   80 mm
 Maximum Thickness for De- Stock   80 mm
 Net Weight   160 Kg
 Height - Less Shackle   215 mm
 Magnet Foot Print ( L x B)   232 mm x 442 mm
 Handle Length - R   450 mm

Fitted Safety Latch Included.
Complies with Lifting Devices
Standard AS 4991-2004. Section 6.2.1
Load Control.

Material Thicknes   - SWL at 3:1 in KG
80 mm -  3000 kg
70 mm - 2400 kg
60 mm - 1800 kg
50 mm - 1350 kg
40 mm -  1050 kg
30 mm  - 750 kg







Part Number/SKU: PL3000

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU PL3000
Brand MSA
Shipping Weight 165.0000kg
Shipping Width 0.500m
Shipping Height 0.600m
Shipping Length 0.600m
Shipping Cubic 0.180000000m3
Unit Of Measure ea
