MAGSWITCH 8100935 MAGPRESS

The Magswitch MagPress offers a simple way to align sheets and press beam. Ask any welder how
long it takes to align large sheets with precision. Magswitch offers a solution that yields incredible
time savings. The MagPress features 1100 lbs (500kg) of hold force instantly! Using magnetic force
and leverage, the tool aligns the sheets! This allows for an individual to align two sheets and weld the
two sheets together much quicker than other methods. By turning the handle to the other side, this
tool becomes a beam press tool which can press 4-6” beam in a second! This product gives you two
functions in one simple tool.


SPECIFICATIONS

P/N: 8100935 - MAGSWITCH MagPress
Max Breakaway* 1100 lbs/500 kg
Full Saturation Thickness 1/2” / 12.7mm
Max Safe Shear* 200 lbs/90.9 kg
Minimum Thickness for De-Stack 1/2” / 12.7mm
Net Weight 13.1 lbs/6.0 kg

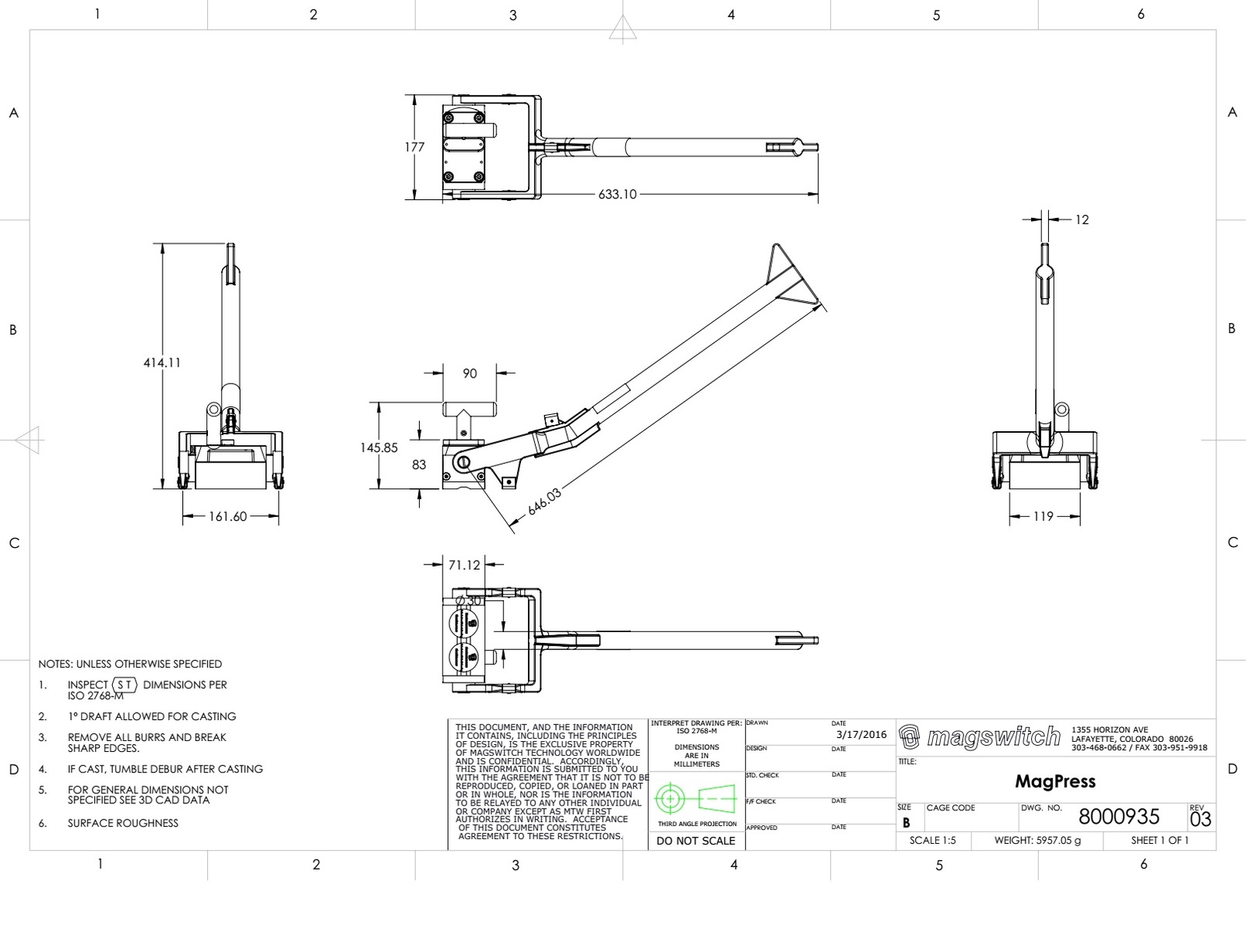

Overall Height 414.11 mm
Magnetic Pole Footprint 119.0 x 71.12 mm





Part Number/SKU: 8100935

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 8100935
Brand Magswitch
Shipping Weight 10.0000kg
Shipping Width 0.600m
Shipping Height 0.300m
Shipping Length 0.300m
Shipping Cubic 0.054000000m3
