Gecko Welding Carriage 240v Vertical 0-1100mm/Min ITM WA-GECKO

Features

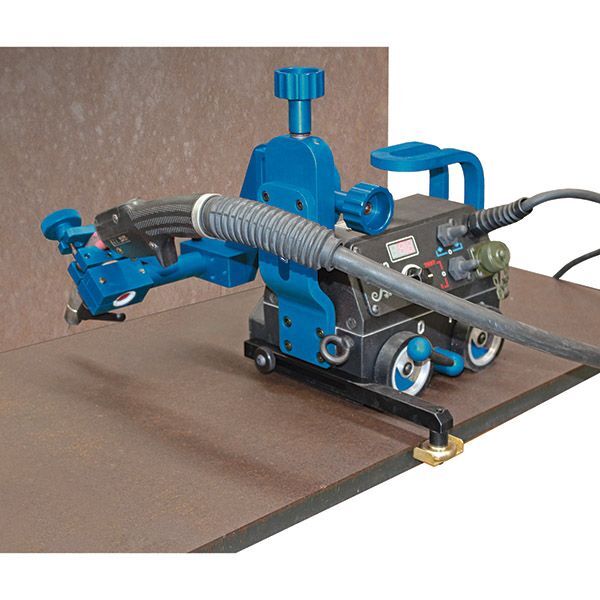

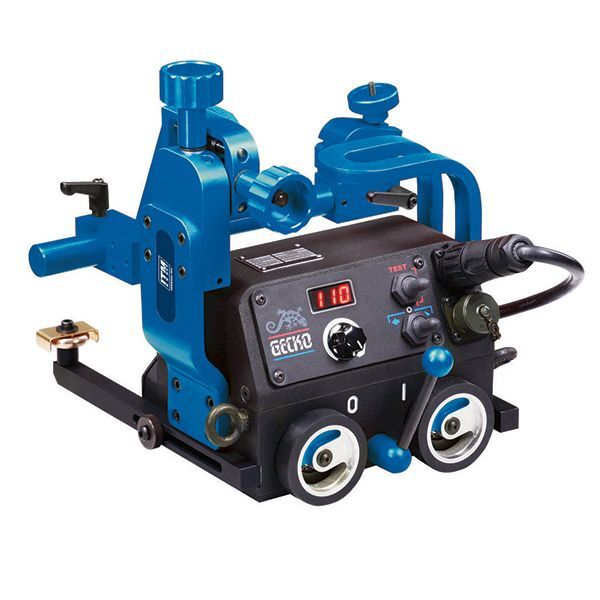

The Gecko is a heavy duty European made portable fillet welding carriage designed to produce consistent high quality welds. It features a 4-wheel drive system with magnetic traction and a control loop feedback mechanism which provides speed stabilisation in all welding positions. Constant, continuous and repeatable travel speed enables weld bead geometry that is exact to the required specifications, thus substantially reducing costly over welding and decreasing filler metal usage.

  • Compact & lightweight design with durable aluminum housing
  • Permanent magnet clamping system with on/off lever ensures positive magnetic traction
  • Maintenance free 4-wheel drive with worm gear reduction
  • Quick clamping torch holder mechanism for different types of MIG/MAG torches with diameters of 16-22mm (5/8"-7/8")
  • Precise torch adjustment with screw drive cross slide
  • Multifunctional LED display - presetting of travel speed, metric & imperial units, error codes information
  • Closed loop speed control system stabilises travel speed to reduce weld defects and costly rework
  • Consistent heat input reduces distortion
  • Automatic ARC ON/OFF system initiates welding with travel, simultaneously
  • Self-guiding roller arms eliminate the need for track
  • Improves working environment - removes operator from heat and fumes

Package Includes

  • Welding carriage
  • Power lead
  • Arc ignition cable
  • Torch holder
  • 4mm Allen key
  • Operator’s manual

SPECIFICATIONS

  • Power supply: 115-230VAC / 50-60Hz

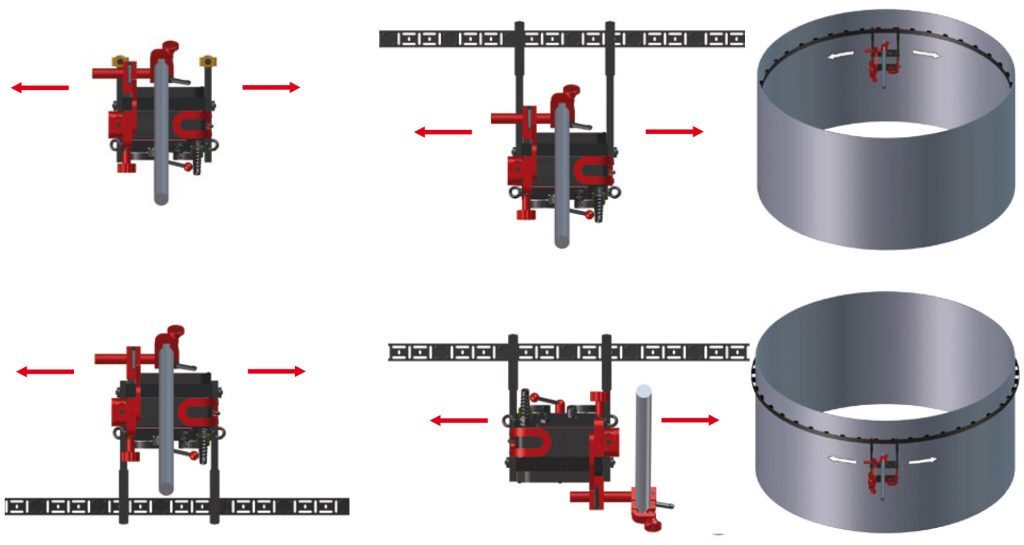

  • Welding positions: Vertical / Horizontal
  • Chassis to material clearance: 4mm
  • Travel mechanism: Friction Drive With Worm Gear Reduction, 4 Wheel Drive, Heat Resistant Silicone Wheels
  • Tracking method: 2-Guide Rollers
  • Torch adjustment: Up-Down 35mm, Left-Right 35mm
  • Gear roller adjustment: 100mm
  • Horizontal speed: 0-1100mm/min
  • Vertical speed: 0-1000mm/min

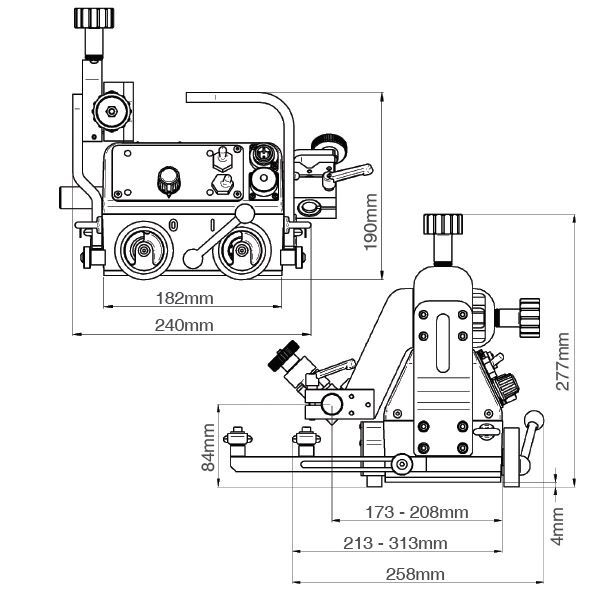

  • Dimensions: 240mm (L) x 258mm (W) x 253mm (H)
  • Weight: 8kg

Part Number/SKU: WA-GECKO

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU WA-GECKO
Brand ITM
Shipping Weight 10.0000kg
Shipping Width 0.600m
Shipping Height 0.500m
Shipping Length 0.500m
Shipping Cubic 0.150000000m3
Unit Of Measure ea
