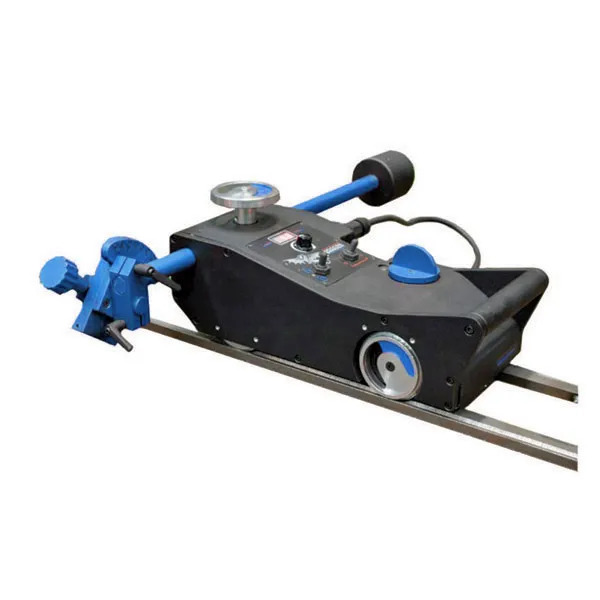

Dragon Oxy Cutting And Bevelling Carriage ITM WA-DRAGON

The Dragon is designed to carry a range of oxy-fuel cutting torches with a grip diameter 28 - 35mm, to perform machine quality cutting and bevelling processes in a variety of applications.

  • Cutting and bevelling 0° to 45° (also parallel with 2 torches)
  • Quick clamping torch holder for torch diameter 28mm to 35mm
  • Advanced speed control system with implemented digital control loop feedback PID regulator
  • LED display with readout of actual and set speed, and report messages
  • Travel on a rail or directly on a workpiece
  • 2-wheel drive with automatic braking drive unit
  • Quick drive release switch for easy re-positioning
  • Connectable rails to form various lengths
  • Rigid and heat-proof design

Package Includes

  • Dragon carriage
  • Torch rack 580mm
  • Counterweight 1.3kg
  • Torch holder with angle & height adjustment (WAP-D6030)
  • Power cord
  • Operator’s manual

Specifications:

  • Power supply: 115-230VAC / 50-60Hz
  • Power: 13W
  • Torch grip diameter: 28-35mm
  • Chassis to material clearance: 7.5mm
  • Travel mechanism: 4 Knurled Wheels, 2 Wheel Drive
  • Guiding equipment: Optional “V” Type Rail With Grooves At 152mm Centres, 1800mm Length (Part# WAP-D6010)
  • Cutting speed: 0-1500mm/min
  • Chassis dimensions: 427mm(L) x 189mm(W) x 180mm(H)
  • Weight: 16.8kg

Part Number/SKU: WA-DRAGON

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU WA-DRAGON
Brand ITM
Shipping Weight 18.0000kg
Shipping Width 0.600m
Shipping Height 0.300m
Shipping Length 0.300m
Shipping Cubic 0.054000000m3
Unit Of Measure ea
