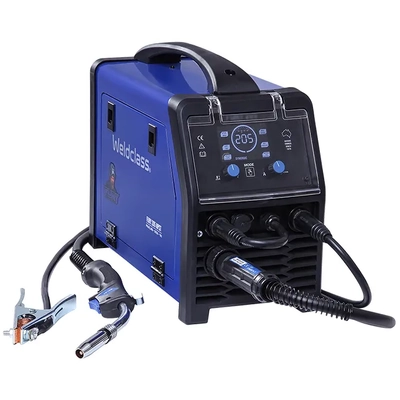

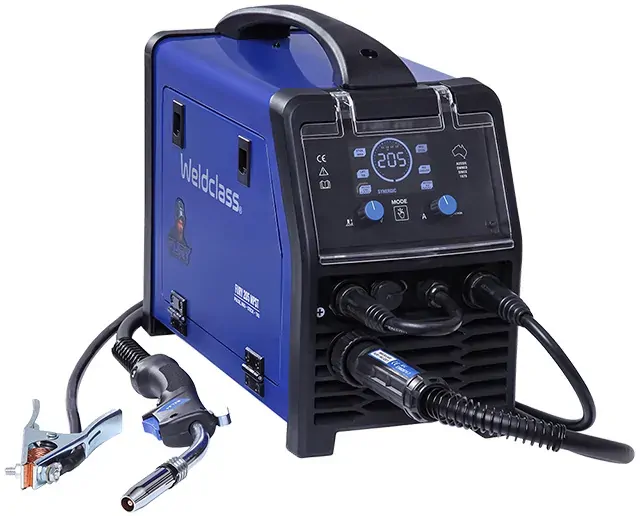

Fury 205 MPST Pulse MIG/STICK/TIG Welder Weldclass WFY205MK1

DESCRIPTION:

Take full control of your jobs and weld like a pro with this easy-to-use pulse machine! The Fury 205 MPST packs serious pulse performance from a standard 10A power supply. Designed for greater output and capability, it features pulse MIG, pulse Stick, and pulse lift DC-TIG for superior arc control, reduced spatter, and outstanding weld appearance.
With a powerful 205A max output, it welds from approx. 0.8mm to 12mm, making it ideal for those heavier workshop and site applications.
Pulse MIG delivers a smooth, low-heat arc - excellent for aluminium, stainless, and mild steel - and it's spool gun ready for enhanced aluminium performance.
Pulse stick improves positional welding control and gap-bridging ability. Adjustable pulse lift-TIG (torch optional) provides refined heat control for high-quality welds on steel and stainless.

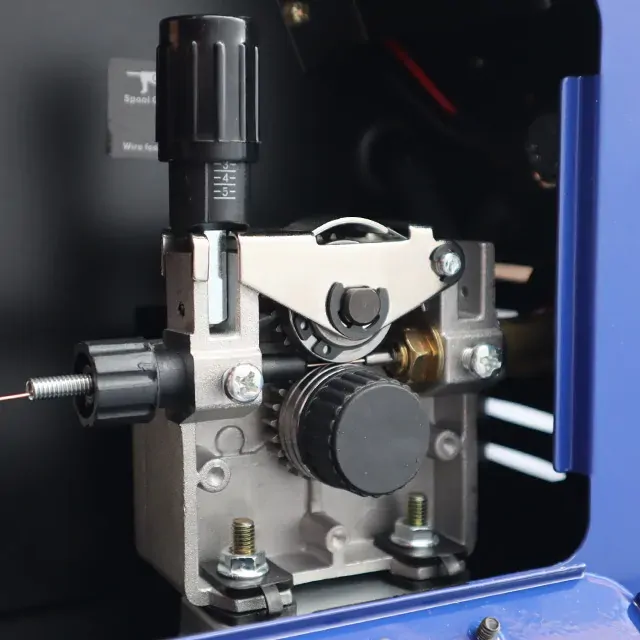

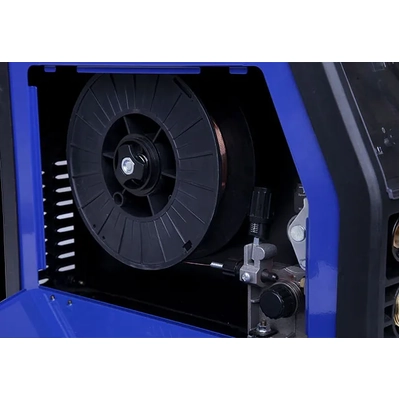

Simple to use, intuitive control panel allows most settings and controls to be used without getting your head stuck in the instruction manual. The geared 2-roll wire drive system ensures strong, consistent wire feed performance. Supplied as a comprehensive value kit, including a bonus ProMax 130 welding helmet, gloves, MIG pliers, and a cooler bag. Maximum pulse capability. 10A  convenience.

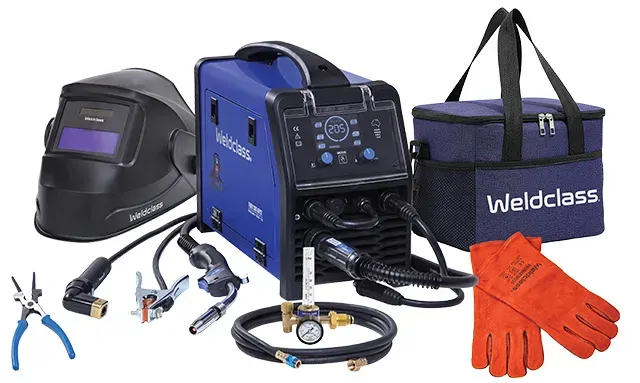

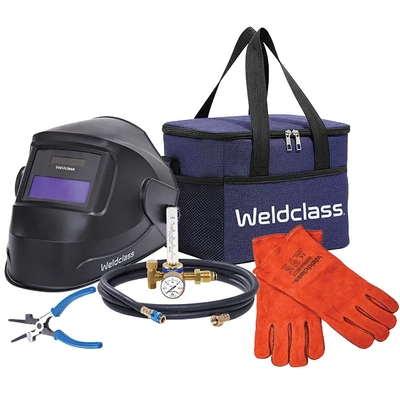

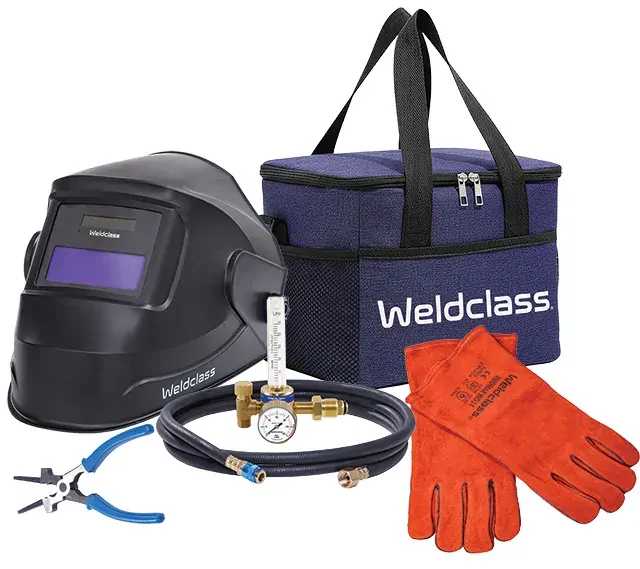

INCLUDES:

• Fury 185 MPST machine.
• Promax 130 Auto Darkening helmet.
• MIG gun BZL24 x 3m.
• Work return lead and clamp.
• Stick welding lead with twist-lock holder.
• Gas regulator and hose.
• Welding gloves.
• MIG pliers.
• Wire feed rollers: solid 0.8mm-0.9mm, flux cored:  0.8mm-0.9mm, aluminium: 0.9-1.0mm.
• Cooler bag - for hot days and cold drinks.

PROCESSES:

• MIG: Single-pulse and non-pulse.
• Gasless MIG.
• MIG spool gun.
• Stick/MMA: Pulse and non-pulse.
• TIG (DC lift-arc for steel/stainless): Pulse and non-pulse.

WHY PULSE?

• Pulse MIG welding (single pulse) allows you to weld like a pro, with very low spatter, super smooth welds, and low distortion. Suitable for welding aluminium, stainless, and carbon steels.
• Pulse Stick welding allows smoother, cleaner welds in hard-to-weld positions like vertical-up and overhead, plus helps bridge large gaps without burn through.
• Pulse DC-TIG welding (Lift-TIG) is well suited to creating scalloped-looking TIG welds on stainless and carbon steels (stack of dimes look) so your TIG welds exhibit the best in appearance.

AT A GLANCE:

• 205A @ 9% max output.
• MIG weld up to 12mm mild steel, stick weld up to 12mm.
• Fitted with a 230V 10A plug.

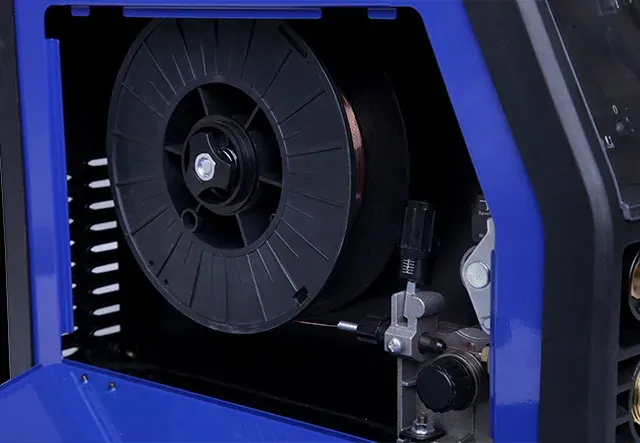

• Takes 1kg and 5kg spools.
• Supplied as a value kit with a bonus helmet, gloves, pliers, cooler bag.
• Pulse mode in all functions (MIG, Stick, TIG).
• Simple and very user-friendly controls.

KEY FEATURES:

• Very easy to navigate user interface: Intuitive control panel allows most settings and controls to be used without getting your head stuck in the instruction manual.
• Large, colour LED display.
• Choice of manual MIG (voltage and wire speed adjusted manually), or synergic MIG (set wire type/size, then just adjust one output dial based on material thickness).
• Choice of pulse mode in all processes (MIG, Stick, TIG).
• Stick/MMA pulse adjustable frequency 1-10Hz.
• TIG pulse adjustable frequency 1-10Hz.
• Spool gun ready, ideal for welding aluminium.
• Lightweight and compact.
• Over-specified heavy-duty 240A BZL24 MIG torch.
• Large 35-50 output cable connections.
• Quick-connect gas inlet fitting, for fast and easy gas hose fitting/removal.

APPLICATION AND CAPABILITY:

• Ideal for trade, farm, maintenance, and serious hobbyist use.
• MIG welding 30-205A with solid steel 0.6/0.8/0.9mm wire, material thickness approx. 0.8-12mm.
• MIG welding 30-205A with solid stainless steel 0.8/0.9mm wire (0.8mm wire is best suited), material thickness approx. 1.2-12mm.
• MIG welding 30-205A with solid aluminium 0.9/1.0mm wire (1.0mm wire is best suited), material thickness approx. 1.2-12mm.
• Gasless MIG welding of steel 30-205A with 0.8/0.9mm flux-cored wires, material thickness approx. 1.2-12mm.
• Stick (MMA) welding 10-170A with most types of common electrodes (1.6/2.0/2.5/3.2/4.0), including steel and stainless, material thickness up to 12mm.
• TIG welding 10-170A (DC lift-arc) of steel, stainless, copper & chrome molly, ferrous metals, up to 10mm max thickness, using 1.6/2.4/3.2mm tungsten electrodes.
• Not suitable for TIG welding of aluminium (this requires AC/DC TIG capability).

SPECIFICATIONS:

Part Number/SKU: WFY205MK1
