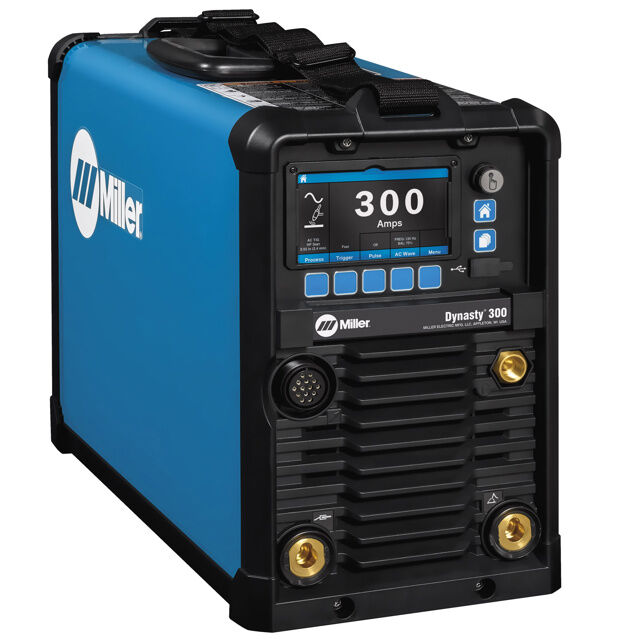

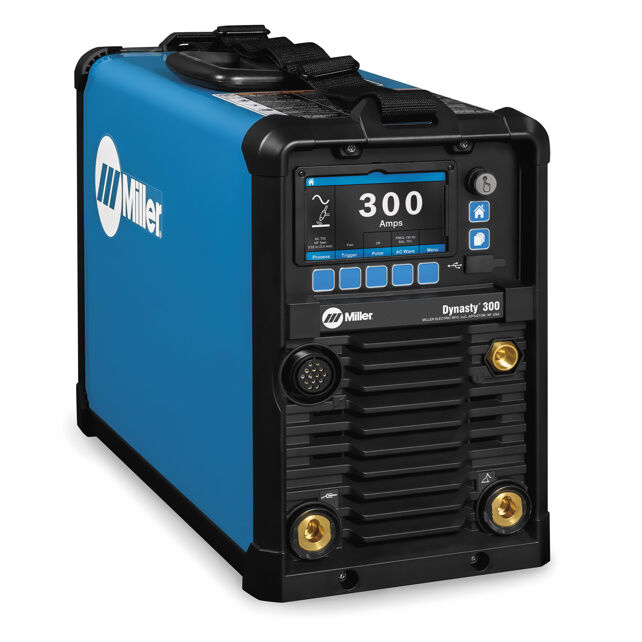

Dynasty® 300 Multiprocess Miller MR907819002

The Dynasty® 300 Series has now expanded beyond the industry leading TIG and Stick performance by the additional CV output which allows for MIG capability - making this multi-process line the perfect solution for ship building, construction, and more. With features like Auto-Line™, AC TIG, pulse and high- frequency arc starts, the Dynasty® 300 multi-process is the most versatile, portable machine in its class. Paired with an ArcReach® SuitCase® feeder, it provides a superior solution for all portable applications.

Processes: Stick, MIG, TIG, Flux Cored, Air Carbon Arc

Welding Mode	Phase	Input Power (A)	Welding Amperage Range (A)	Rated Output at 60% Duty Cycle	Max Open Circuit Voltage (V)
TIG (GTAW)	3-phase	2-300A (AC), 1-300A (DC)	2-300A (AC), 1-300A (DC)	250A at 20V * 10A, 7.5 KVA	60 VDC
	1-phase	2-300A (AC), 1-300A (DC)	2-300A (AC), 1-300A (DC)	250A at 20V, 30A * 6.7 KVA
Stick (SMAW)	3-phase	5-300A	5-300A	250A at 30V * 14A, 9.8 KVA
	1-phase	5-300A	5-300A	200A at 27.2V, 32A * 9.3 KVA
MIG (GMAW)	3-phase	5-300A	5-300A	250A at 26.5V * 12A, 8.9 KVA
Flux-Cored (FCAW)	1-phase	5-300A	5-300A	200A at 24V, 28A * 6.2 KVA

Part Number/SKU: MR907819002

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU	MR907819002
Brand	Miller
Shipping Weight	30.0000kg
Shipping Width	0.600m
Shipping Height	0.495m
Shipping Length	0.350m
Shipping Cubic	0.103950000m3
Unit Of Measure	ea

Dynasty® 300 Multiprocess Miller MR907819002

he Dynasty® 300 Series has now expanded beyond the industry leading TIG and Stick performance by the additional CV output which allows for MIG capability - making this multi-process line the perfect solution for ship building, construction, and more. With features like Auto-Line™, AC TIG, pulse and high- frequency arc starts, the Dynasty® 300 multi-process is the most versatile, portable machine in its class. Paired with an ArcReach® SuitCase® feeder, it provides a superior solution for all portable applications.

Processes: Stick, MIG, TIG, Flux Cored, Air Carbon Arc

Supply Plug	Not Fitted
Supply Cord Length	2.4m
Low OCV (Open Circuit Voltage)	30 VDC
Open Circuit Voltage	60 VDC
IP Rating	IP23
Generator Requirement	12.5 KVA
Warranty	3 Years
Dimensions (DxWxH)	555 x 216 x 352mm
Weight (kg)	25kg

Be The First To Review This Product!

Help other National Welding and Industrial Supplies users shop smarter by writing reviews for products you have purchased.

Write a product review

Description

Dynasty® 300 Multiprocess Miller MR907819002

Processes: Stick, MIG, TIG, Flux Cored, Air Carbon Arc

Welding Mode	Phase	Input Power (A)	Welding Amperage Range (A)	Rated Output at 60% Duty Cycle	Max Open Circuit Voltage (V)
TIG (GTAW)	3-phase	2-300A (AC), 1-300A (DC)	2-300A (AC), 1-300A (DC)	250A at 20V * 10A, 7.5 KVA	60 VDC
	1-phase	2-300A (AC), 1-300A (DC)	2-300A (AC), 1-300A (DC)	250A at 20V, 30A * 6.7 KVA
Stick (SMAW)	3-phase	5-300A	5-300A	250A at 30V * 14A, 9.8 KVA
	1-phase	5-300A	5-300A	200A at 27.2V, 32A * 9.3 KVA
MIG (GMAW)	3-phase	5-300A	5-300A	250A at 26.5V * 12A, 8.9 KVA
Flux-Cored (FCAW)	1-phase	5-300A	5-300A	200A at 24V, 28A * 6.2 KVA

Warranty

Dynasty® 300 Multiprocess Miller MR907819002

Processes: Stick, MIG, TIG, Flux Cored, Air Carbon Arc

Supply Plug	Not Fitted
Supply Cord Length	2.4m
Low OCV (Open Circuit Voltage)	30 VDC
Open Circuit Voltage	60 VDC
IP Rating	IP23
Generator Requirement	12.5 KVA
Warranty	3 Years
Dimensions (DxWxH)	555 x 216 x 352mm
Weight (kg)	25kg

Attributes

SKU	MR907819002
Brand	Miller
Shipping Weight	30.0000kg
Shipping Width	0.600m
Shipping Height	0.495m
Shipping Length	0.350m
Shipping Cubic	0.103950000m3
Unit Of Measure	ea
