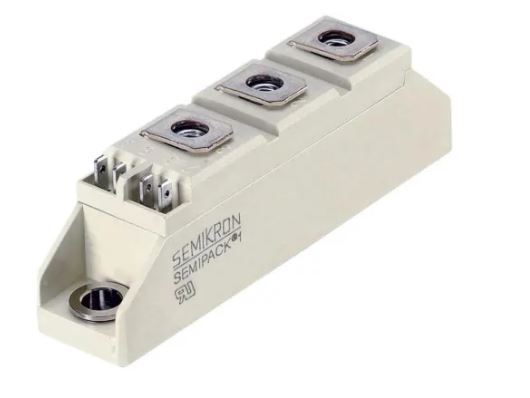

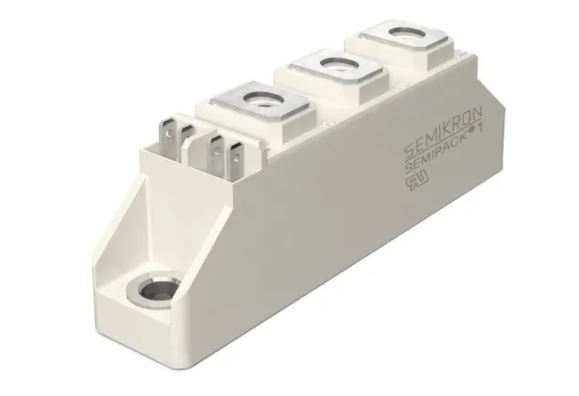

Dual Thyristor Diode 100A 1600V 4 Pin  A 5 Semikron SKKT92/16E

Dual Thyristor Modules, SKKT SEMIPACK 1 Series, Semikron
Dual series thyristors

Approvals
UL recognised component

Thyristors - Semikron
A Thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. They act as bistable switches, conducting when their gate receives a current trigger, and continue to conduct while they are forward biased. Thyristors are synonymous to Silicon-Controlled Rectifier (SCR).
Encapsulated modules with electrically isolated base plate. Suitable for applications such as battery chargers, welders and plating equipment, regulated power supplies and temperature and speed control circuits.



 Attribute  Value
 Rated Average On-State Current  100A
 Repetitive Peak Reverse Voltage  1600V
 Surge Current Rating   2500A
 Mounting Type  Panel Mount
 Package Type  A 10
 Pin Count  3
 Peak On-State Voltage  1.35V
 Repetitive Peak Forward Blocking Voltage  1600V
 Repetitive Peak Off-State Current  5mA
 Dimensions  93 x 20 x 30mm
 Maximum Operating Temperature  +125 °C
 Minimum Operating Temperature  -40 °C




Part Number/SKU: SKKT92-16E

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU SKKT92-16E
Brand Semikron
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
Shipping Cubic 0.008000000m3
