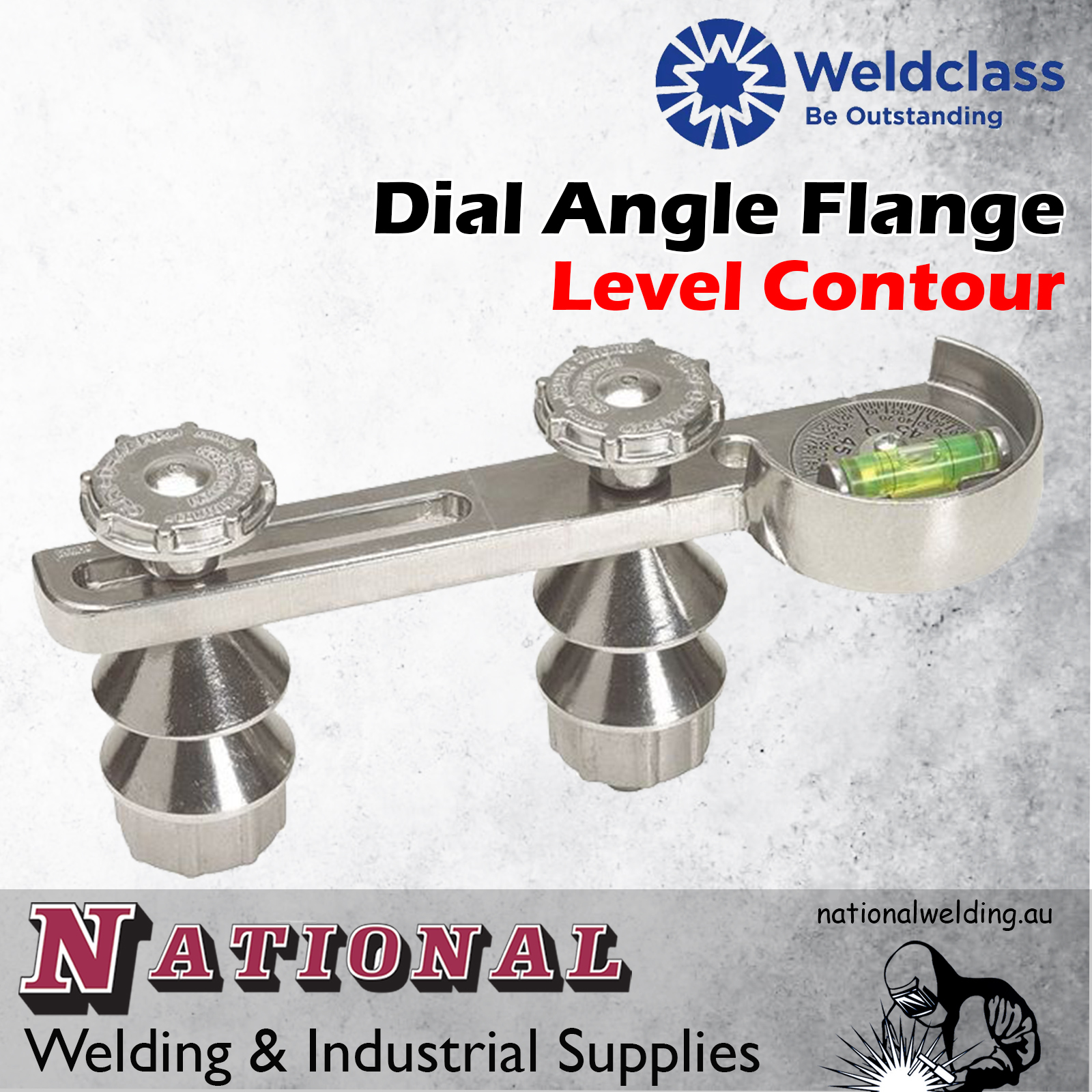

Dial Angle Flange Level Contour Curv-O-Mark Weldclass KC-J1891

A versatile tool that can be used as a dial degree utility level or, with attachments, for two holding flange alignment. Fitted with a threaded self aligning conical spacer & conical nut & Bolt units for fastening the level to a pipe flange.



WHY CHOOSE JACKSON CONTOUR DIAL ANGLE FLANGE LEVEL ?

•  Versatile tool that can be used as a dial degree utility level or, with attachments, for two-holing flange alignment.
• Saves time, Easy to use

APPLICATION INFO:

• Fitted with a threaded, self aligning conical spacer and conical nut and bolt units for fastening the Level to a pipe flange
•  One of the nut and bolt units is stationary, while the other slides up to 140mm (5-1/2 in) along a slot in the level to accommodate various flange bolt hole spacings from 50mm (2 in) to 140mm (5-1/2 in)

WHAT ELSE ?

•  Made of cast aluminum with a protective housing containing an adjustable DSL
•  The body of the tool is 12mm (1/2 in) thick with a machined surface
•  The level bubble is protected from weld spatter and breakage with a built-in housing

WELDCLASS is the official Australian distributor for Jackson Contour Curv-O-Mark products



Also Known As: Jackson Contour Curv-O-Mark Dial A Flange / Flange Aligner / Vial / 0721-0017 / 14786/ CURV0020 / T111



Alternative SKU: C0721-0017

Part Number/SKU: KC-J1891
