Kincrome Contour® Tool Trolley 7 Drawer Electric Blue

CONTOUR® Trolleys

• Plastic embossed (recessed) moulded work surface with 12mm-18mm integrated MDF worktop
• Stainless Steel work surface (Contour 60 only)
• 45mm Ball Bearing Slide Drawers with folded drawer edges
• Dual Ergonomic Kincrome embossed trolley handles
• Dual side folding work trays with EVA foam liners
• Four swivel Heavy Duty polyurethane 5 x 2” castors (4 x swivel) for easy manoeuvrability
• High load capacity castors (Contour 60 only)

FEATURES

• Ergonomic Dual Kincrome Embossed Plastic Trolley Handles
• Internal Rear Drawer Locking System with Cam Lock and 2 Keys
• Ball Bearing Drawer Slides (45mm x 400mm extension)
• Folded Drawer Edges
• 2mm EVA Foam Drawer Liners
• "Secure Lock" Drawer Locking System
• Full Length Contoured Aluminium Drawer Pulls
• Kincrome Embossed Side Reinforcement
• Dual Side Folding Work Trays with EVA Liners

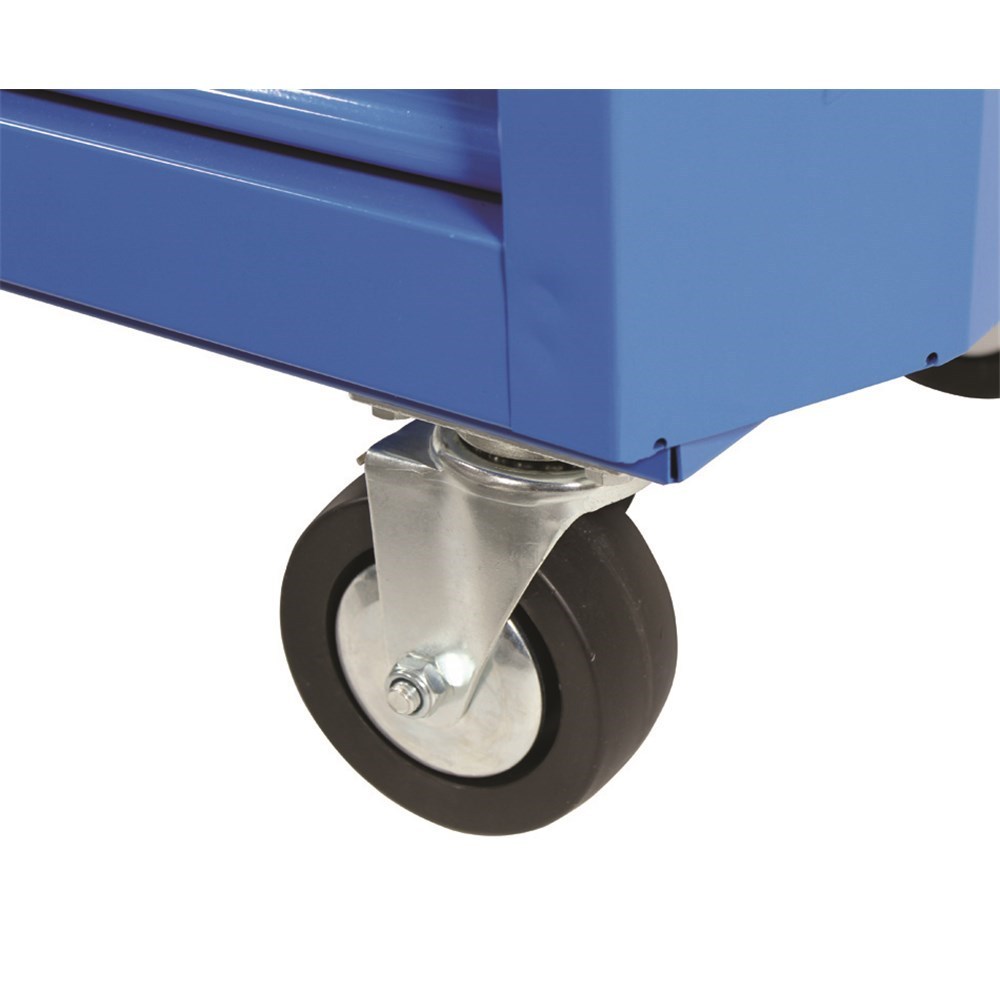

• 5" x 2" Heavy Duty Castors (4 x Swivel for Maximum Manoeuvrability) (2 x Lockable)

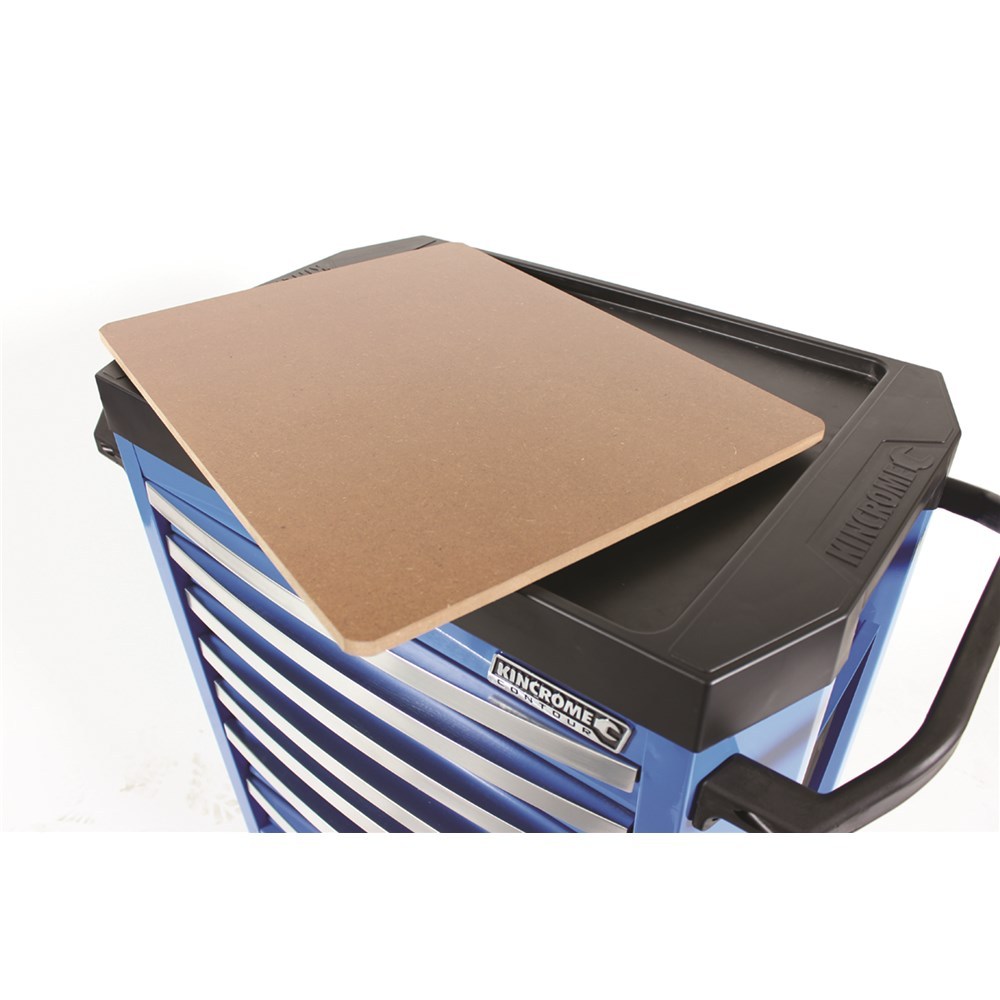

• Plastic Kincrome Embossed Moulded Work Surface with Integrated MDF Wood Work Platform (500 x 350 x 18mm)
• UV Stabilised Gloss Powder Coat



TECHNICAL SPECIFICATIONS
Capacity - 305L
Load Capacity - 30KG (per drawer)
Weight - 60KG
Drawers - 7
Measurements - 745 x 475 x 940MM
Drawer Measurements - 540 x 395 x 50MM (Small)
Drawer Measurements - 540 x 395 x 95MM (Large)
Tray Measurements - 175 x 300 x 12MM
Castor Size - 5" x 2"
Finish - UV Stabilised Powder Coat
Material - Heavy Gauge Steel

About CONTOUR®
The Leading Edge In Tool Kits & Storage

The CONTOUR® range of Tool Kits, Chests and Trolleys is our premium level range, developed for those looking for trade quality tools and features. CONTOUR® comes loaded with premium features for apprentices and professionals, combined with modern styling, offering you the very best that KINCROME has to offer. Designed in Australia by KINCROME, the CONTOUR® range features a sleek contoured design, available in a variety of gloss colours with a UV protected powder coated finish. CONTOUR® storage comes standard with a range of premium features, including; the chamfered Kincrome embossed side panels, ’Automatic Drawer Retention System (ADRS)’ locking system, heavy duty ‘Big Grip’ side carry handles and a contoured trolley handle, side folding work trays, MDF worktop and four swivel heavy duty polyurethane castors for easy manoeuvrability.

CONTOUR® offers a complete range of carts, chests, trolleys and kits to suit every need, from; 26” standard, 28” & 29” extra deep, 42” extra wide and 60” super wide. CONTOUR® is fully modular and customisable, offering the flexibility to build your own premium workshop, the way you want.

CONTOUR® ‘standard’ features

• Curved contour design with extra reinforcement
• Available in a variety of gloss colours with a UV protected powder coated finish
• Plastic moulded bumpers for extra protection
• ‘Secure Lock’ drawer locking system
• Automatic Drawer Retention System (ADRS)
• 35mm Ball Bearing Slide Drawers with folded drawer edges
• Heavy-duty Ball Bearing Slide Drawers with folded drawer edges resulting in a 30Kg draw capacity
• Full extension drawers open further than standard drawers
• Larger ‘curved’ aluminium drawer grips
• 2mm EVA foam drawer matting / lining
• Recessed cam with 2 keys
• Standard & Deep drawer heights for greater storage options
• 26” standard, 28” & 29” extra deep, 42” extra wide & 60” super wide Tool Kits, Carts, Chests & Trolleys
• Designed in Australia by KINCROME



Part Number/SKU: K7747

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
