Carbide Burr Cylindrical Radius 1/4" Shank 1/2" x 1" SC-5 Pferd 26006770

DESCRIPTION:

New pferd tools, combi-cut tungsten carbide burrs with the cut MX NCC, were designed for general use. They have a good stock removal rate when used on various materials.

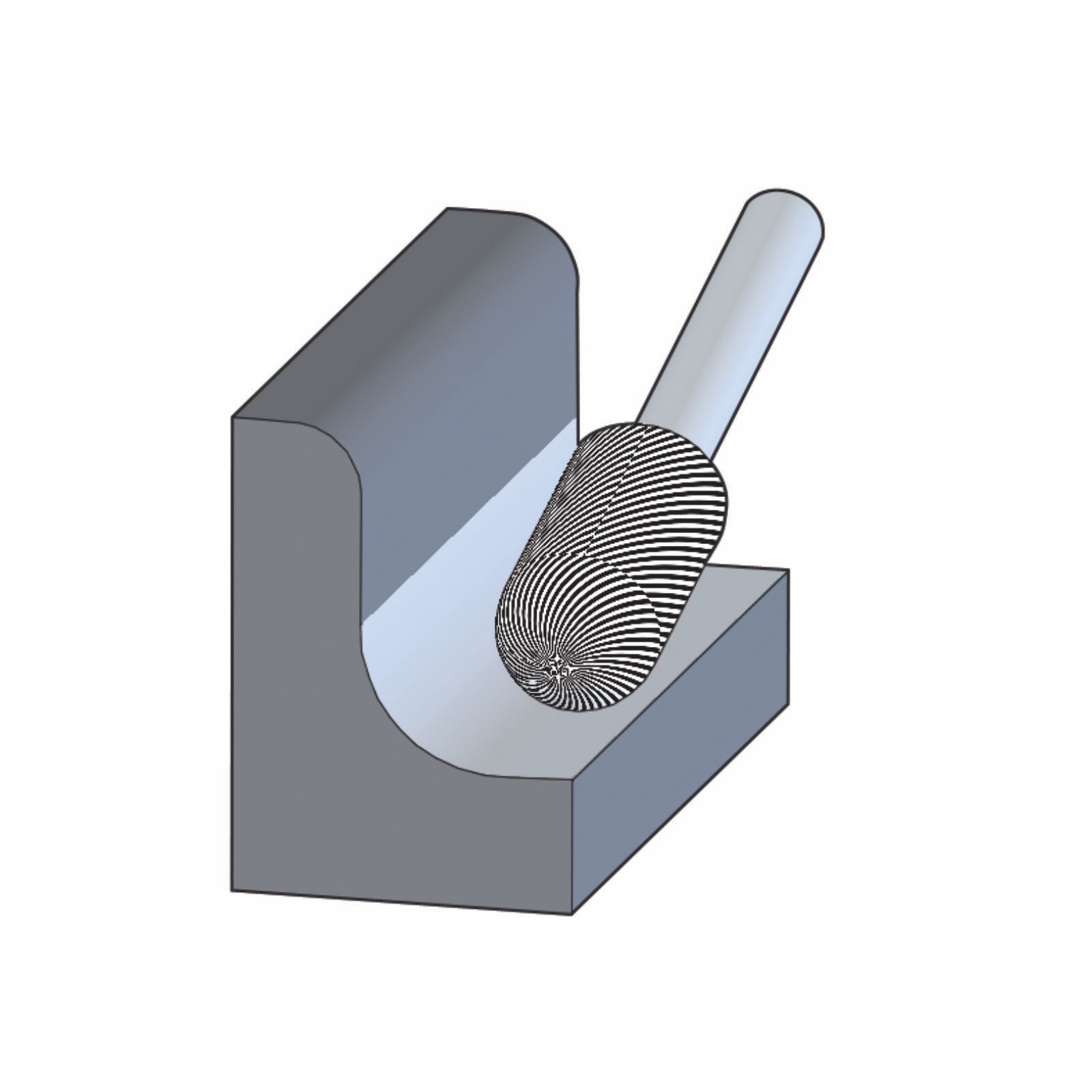

Cylindrical burr with radius end according to DIN 8032.  A combination of cylindrical and ball-shaped geometries.

FEATURES:

• Good stock removal rate and tool life.
• Cost-effective stock removal when used on a wide variety of materials.
• The highly accurate concentricity enables impact-free working without creating chatter marks. This considerably reduces wear on the tool and tool drive.

RECOMMENDATIONS FOR USE:

• Use the highest rotational speeds possible. In this respect, please observe our recommended rotational speeds/cutting speeds.
• The contact area between the burr and the workpiece must not exceed 30% of the total burr surface.

MATERIALS THAT CAN BE WORKED:

• Aluminium
• Annealed cast iron.
• Black annealed cast iron (GTS, GJMB).
• Brass
• Bronze
• Case-hardened steels.
• Cast iron.
• Cast steel.
• Cobalt-based alloys.
• Fibre-reinforced thermosetting plastics (GRP, CRP).
• Fibre-reinforced thermosetting plastics (GRP, CRP) with a fibre content > 40 %.
• Fibre-reinforced thermosetting plastics (GRP, CRP) with a fibre content ≤ 40 %.
• Grey/nodular cast iron (GG/GJL, GGG/GJS).
• Hard aluminium alloys.
• Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC).
• Hard non-ferrous metal.
• Hardwoord
• High-temperature resistant materials.
• Nickel-based alloys (e.g Inconell and Hastelloy).
• Other
• Other non-ferrous metals.
• Plastics
• Stainless steel (INOX).
• Steel
• Steel, cast steel.
• Steel materials with a hardness > 54 HRC.
• Steels over 700 N/mm² (> 220 HB).
• Steels up to 1,200 N/mm² (< 38 HRC).
• Steels up to 700 N/mm² (< 220 HB).
• Thermoplastics
• Titanium
• Titanium alloys.
• Tool steels.
• White annealed cast iron (GTW, GJMW).
• Wood.

APPLICATIONS:

• Cutting out holes.
• Deburring
• Leveling
• Milling
• Milling out
• Working edges
• Work on weld seams.

DRIVE TYPES:

• Drive spindle
• Straight grinder
• Flexible shaft drive

SPECIFICATIONS:

Part Number/SKU: 26006770

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
