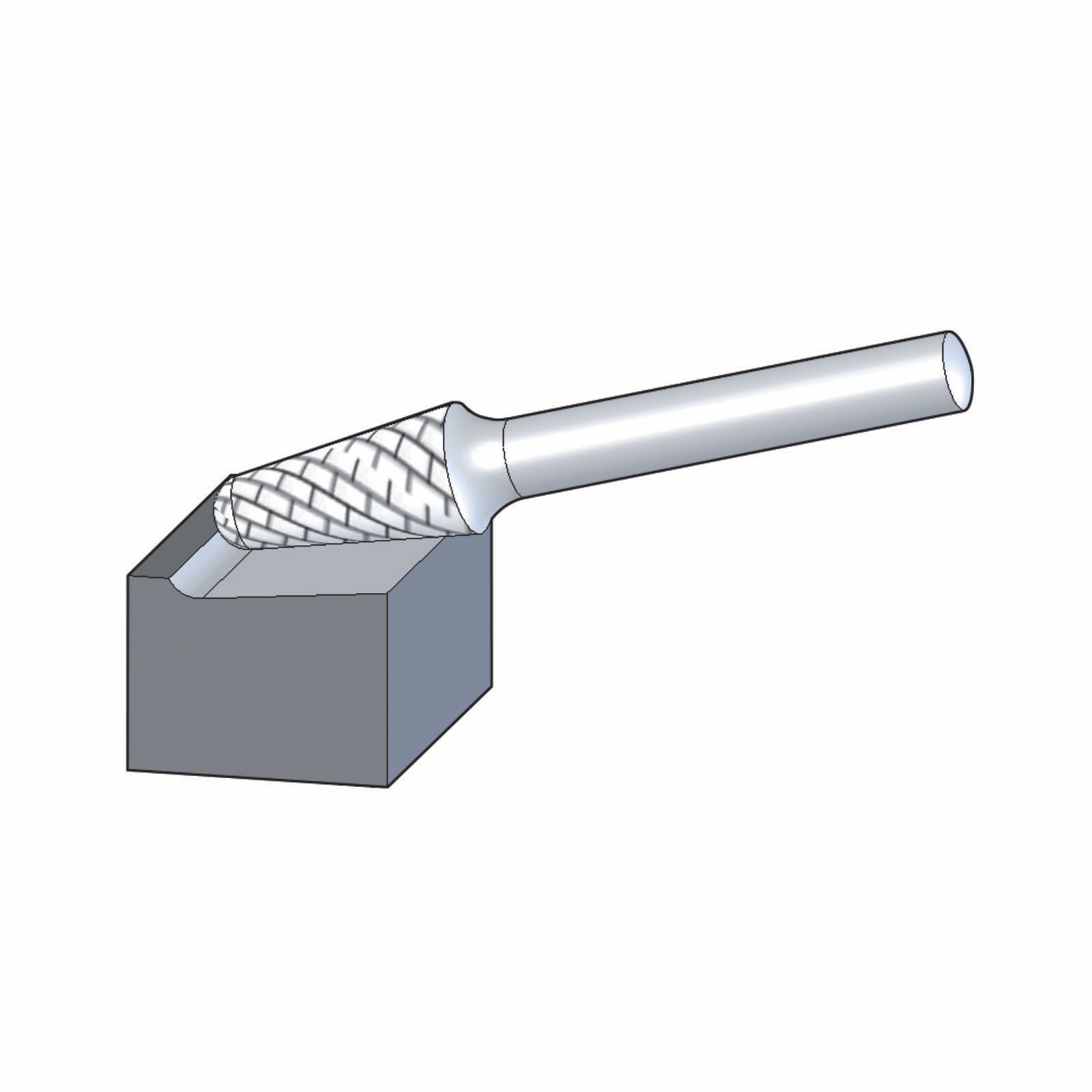

Carbide Burr Cone Radius End Aluminium 1/4" Shank 1/2" x 1 1/16" SL-5 Pferd 21725165

DESCRIPTION:

Pferd tools has further developed the ALU cut, especially for stock removal on aluminium. This cut is characterized by its high stock removal rate. Conical burr with round radius end according to DIN 8032.

FEATURES:

• Extremely high stock removal rate.
• Large chips.
• Reduced material adhesion.
• Long tool life and smooth running.
• Can be used with cutting speeds of up to 1,100 m/min.
• The highly accurate concentricity enables impact-free working without creating chatter marks. This considerably reduces wear on the tool and tool drive.

RECOMMENDATIONS FOR USE:

• To prevent vibrations, place the tools on powerful drives with an elastically supported spindle wherever possible.
• Observe the recommended rotational speeds.
• If the smallest area of the burr diameter is being used, the recommended rotational speed can be increased accordingly.
• To ensure cost-effective use of burrs, use a higher rotational speed and cutting speed. Use burrs with a shank diameter of 6.35mm with drives with a power output of 300 watts.

MATERIALS THAT CAN BE WORKED:

• Aluminium
• Brass
• Bronze
• Copper
• Fibre-reinforced thermosetting plastics (GRP, CRP).
• Hard aluminium alloys.
• Hard non-ferrous metal.
• Plastics
• Soft aluminium alloys.
• Soft non-ferrous metal.
• Thermoplastics.
• Tough aluminium alloys.
• Zinc

APPLICATIONS:

• Cutting out holes
• Deburring
• Leveling
• Milling
• Milling out
• Surface work
• Work on weld seams

DRIVE TYPES:

• Automated centres
• Flexible shaft drive
• Straight grinder
• Tool machine

SPECIFICATIONS:

Part Number/SKU: 21725165
