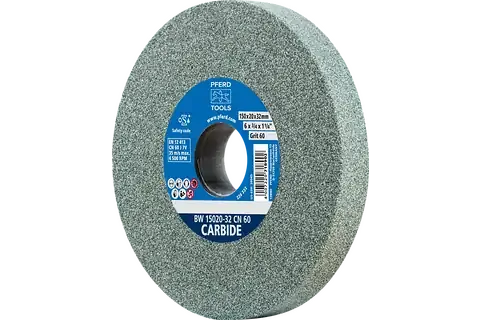

Bench Grinding Wheel 150x20 mm Silicon Carbide Pferd 39008570

Bench grinding wheel dia. 150x20 mm centre hole dia. 32 mm SiC60 for hard materials e.g. tungsten carbide

TECHNICAL INFORMATION:

Bench grinding wheel dia. 150x20 mm centre hole dia. 32 mm SiC60 for hard materials e.g. tungsten carbide
Dia. externa         150 mm
Dia. hole               32 mm
Grit size                 60
Max. RPM             4500 RPM
Reductions            1", 3/4", 5/8", 1/2", 25, 20, 16, 13
Width                     20 mm
Packaging unit       1 piece


DESCRIPTION:

PFERD TOOLS bench grinding wheels have been adapted to the standard bench grinders on the market.

The CARBIDE type is used on hard materials, such as for sharpening tungsten carbide tools.

SPECIAL FEATURES:

• Long tool life.
• High dimensional stability.
• High abrasive performance.
• Integrated adapter sleeves for mounting on almost any bench grinder spindle.

RECOMMENDATIONS FOR USE:

• Dressing the disc on a regular basis exposes sharp grain and maintains an even grinding area.
• Constantly adjust the workpiece support to the grinding disc diameter (gap width max. 3Â mm).

SAFETY NOTES:

• The maximum permitted peripheral speed is 35 m/s.
• For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
• Before clamping, the grinding tool must be ring tested to make sure that it does not have any cracks (undamaged grinding tools give a clear tone).

MATERIALS THAT CAN BE WORKED:

• Glass
• Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
• Steel materials with a hardness > 54 HRC
• Tungsten carbide

APPLICATIONS:

• Deburring

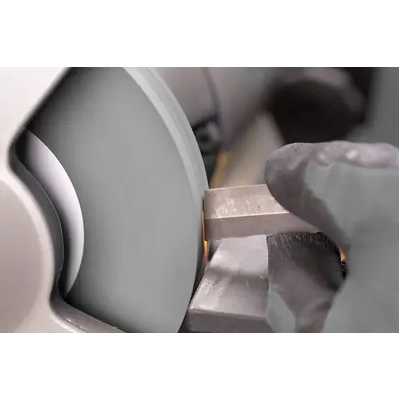

• Sharpening
• Working on edges (chamfering, rounding)

DRIVE TYPES:

Bench grinder

Part Number/SKU: 39008570

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
