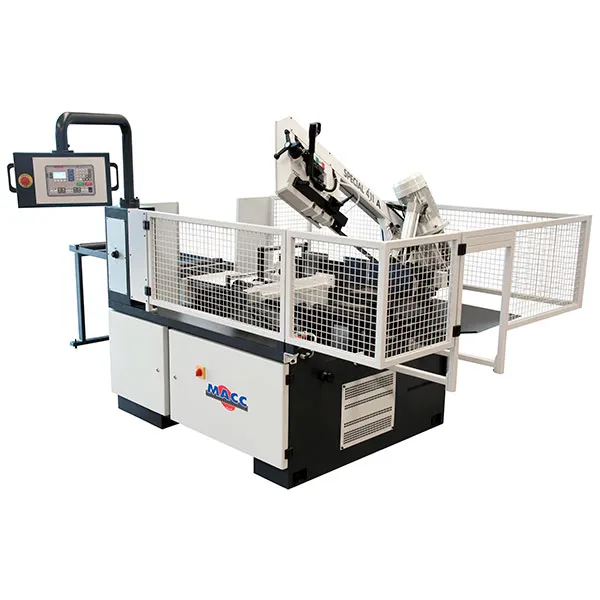

Bandsaw 300mm X 415V 3Phase Swivel Head Macc MB-411AG-3

Features:

  • Italian made quality.
  • Fully guarded & fully automatic C.N.C. controlled machine.
  • Can be used in manual, semi-automatic & fully automatic operation.
  • 2-way swivel head enables from 0° to 60° mitre cuts.
  • 39 Programs, each with 50 steps with relevant piece-counter.
  • Digital control of quality and cut length.
  • Hydraulic material feeder with 600mm stroke & no limit of length.
  • Blade cleaning device and washdown hose.
  • Recirculating coolant system.
  • Safety emergency stop switch.
  • Comes complete with stand and blade.

Fully-Automatic Operation:

  • Material feeding.
  • Fixed vice lock.
  • Rotation of the blade and delivery of the coolant, bow downfeed until the finishing of the cut, feeding carriage return to the fixed measure.
  • Bow return, blade revolution and coolant delivery stopping.
  • Vice opening.
  • Cycle repetition.

Specifications:

  • Motor: 2.15hp Three Phase (415V)
  • Blade Speed: Variable 20 - 90mpm
  • Blade Size: 3200mm x 27mm x 0.9mm
  • Bed Height: 850mm
  • Weight: 575kg

90° Cutting Capacity:

  • Round: 300mm
  • Square: 280mm
  • Rectangle: 280 x 300mm

45° Right Cutting Capacity:

  • Round: 240mm
  • Square: 220mm
  • Rectangle: 130 x 240mm

60° Right Cutting Capacity:

  • Round: 140mm
  • Square: 140mm
  • Rectangle: 140 x 140mm

45° Left Cutting Capacity:

  • Round: 180mm
  • Square: 160mm
  • Rectangle: 110 x 180mm

Part Number/SKU: MB-411AG-3

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU MB-411AG-3
Brand Macc
Shipping Weight 560.0000kg
Shipping Width 0.900m
Shipping Height 0.900m
Shipping Length 0.700m
Shipping Cubic 0.567000000m3
Unit Of Measure ea
