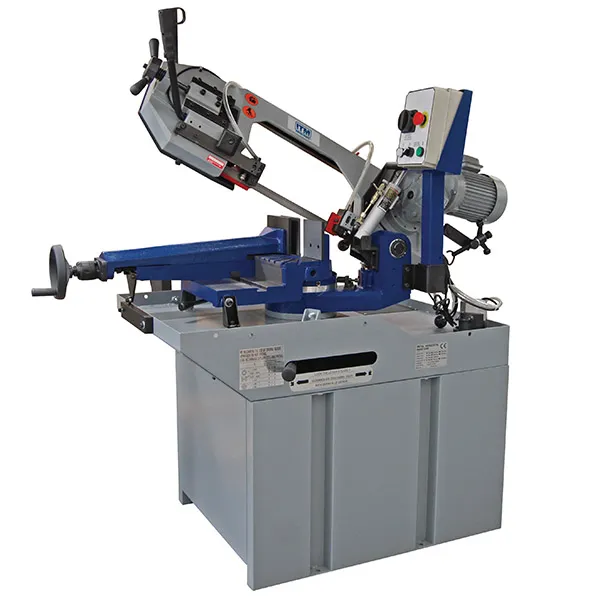

Bandsaw 227mm X 240V Single Phase Hyd Down Feed  ITM WP275DS-1

Features:

  • 2-way swivel head enables from 0° to 60° mitre cuts.
  • Dual mode operation.
  • - Trigger switch with manual down feed for small quick cuts.
  • - Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material.
  • Dual direction heavy-duty vice.
  • Incorporated recirculating coolant system.
  • Brass chip brush to help prevent blade breakage.
  • Adjustable material stop for repetitive production.
  • Safety emergency stop switch.
  • Comes complete with stand & blade.
  • Optional blade tension gauge.
  • Made in Taiwan.

Specifications:

  • Motor: 1.5hp Single Phase (240V)
  • Blade Speed: Single Speed 72mpm
  • Blade Size: 27mm x 0.9mm x 2460mm
  • Bed Height: 900mm
  • Weight: 285kg

90° Cutting Capacity:

  • Round: 227mm
  • Square: 220mm
  • Rectangle: 260 x 110mm

45° Right Cutting Capacity:

  • Round: 150mm
  • Square: 145mm
  • Rectangle: 200 x 125mm

60° Right Cutting Capacity:

  • Round: 90mm
  • Square: 85mm

45° Left Cutting Capacity:

  • Round: 110mm
  • Box: 110mm
  • Rectangle: 160 x 110mm

Part Number/SKU: WP275DS-1

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU WP275DS-1
Brand ITM
Shipping Weight 285.0000kg
Shipping Width 0.800m
Shipping Height 0.800m
Shipping Length 0.700m
Shipping Cubic 0.448000000m3
