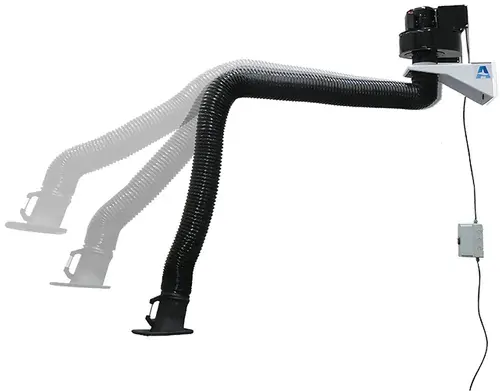

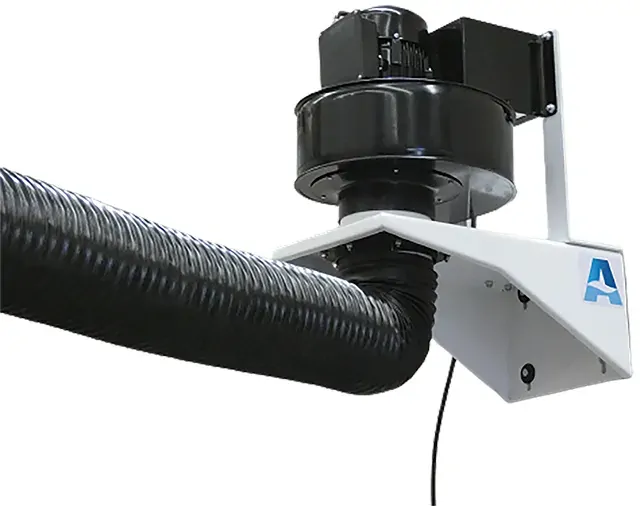

ALLCLEAR FA25 Wall-Mounted Welding Fume Extraction Fan + 4m Arm Package Weldclass WC-FA254M

AT A GLANCE:

• For dust and fumes
• Commonly used with ducted systems, where fumes are ducted externally and/or to large central extraction/filter units
• Operates on ~230V 10A single phase power
• Available with 3m or 4m suction arms
• Wall-mounted, for minimal intrusion in workspaces

*This unit is an extraction fan only and does not include a filter. Suitable as-is for mild/non-toxic airborne contaminants. It can be used for welding and grinding fumes if used together with a suitable filtration system.

FEATURES:

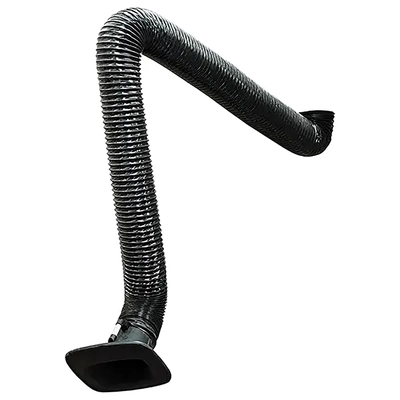

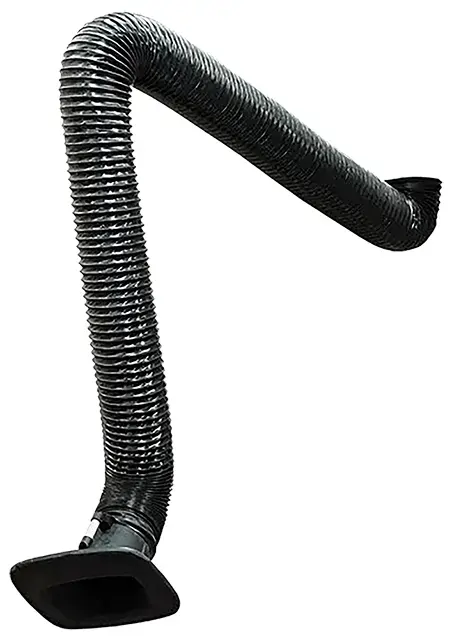

• Flexible PVC suction hose with a welded steel wire coil
• Temperature resistance up to 120ºC

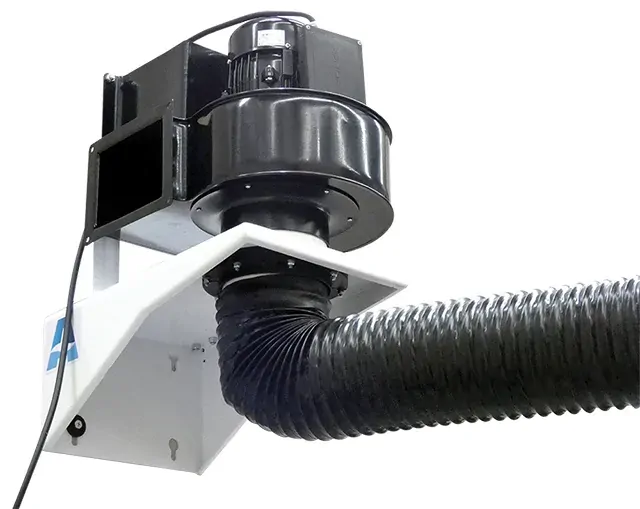

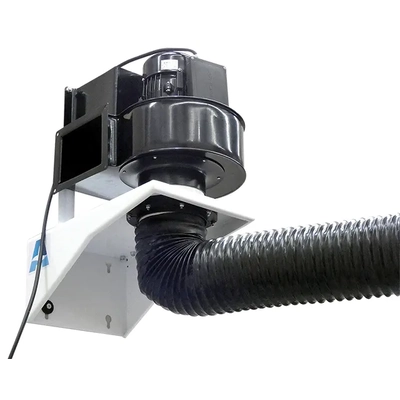

• Rectangular outlet on fan for easy ducting (see dimensions below)

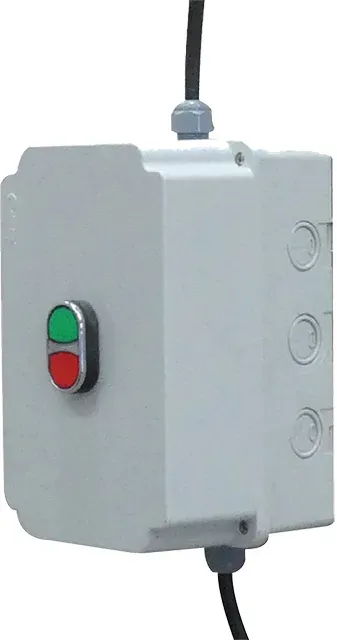

• Fan includes a simple on/off control box

FAN INCLUDES:

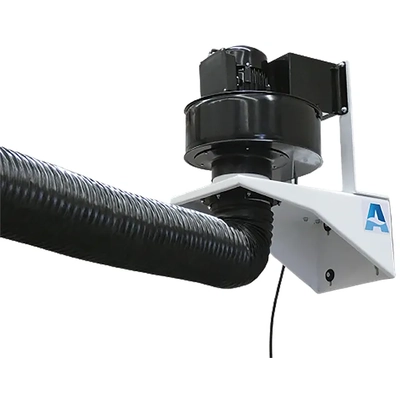

• Fan/Motor with Mounting Bracket (assembled)
• Wall anchor bolts with paper template for hole locations

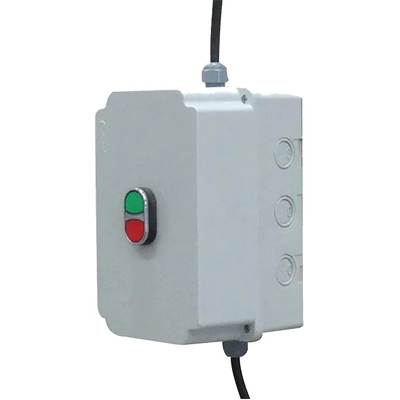

• On/off switch/control box with wires and 230V 10A power plug (assembled)

*Wall mounting requires the switch box to be opened to allow fixing

SPECIFICATIONS:

• Power supply: Single phase ~230V 10A
• Max air flow: 2,500m³ / hour
• Motor size: 1.1kw
• Fan/Motor Weight: 27kg
• Dimensions (mm): L438 x W449 x H410
• Fan type: Static and dynamic balanced impeller
• Suction Hose Size: 150mm diameter
• Intake Hood Size: 160mm diameter
• Fan outlet size (rectangular): Outside 220 x 170mm / Inside 163 x 125mm

Part Number/SKU: WC-FA254M

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
