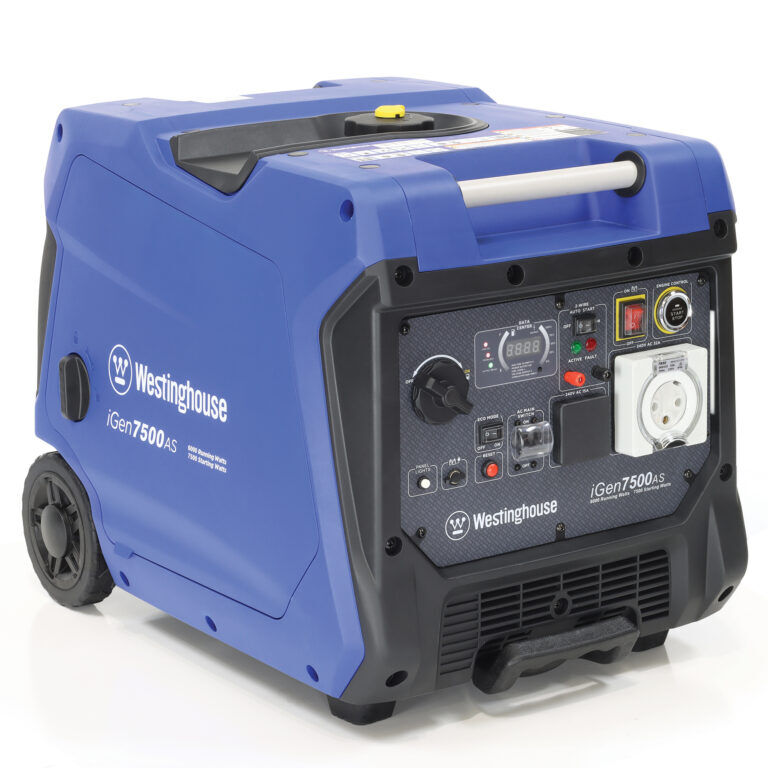

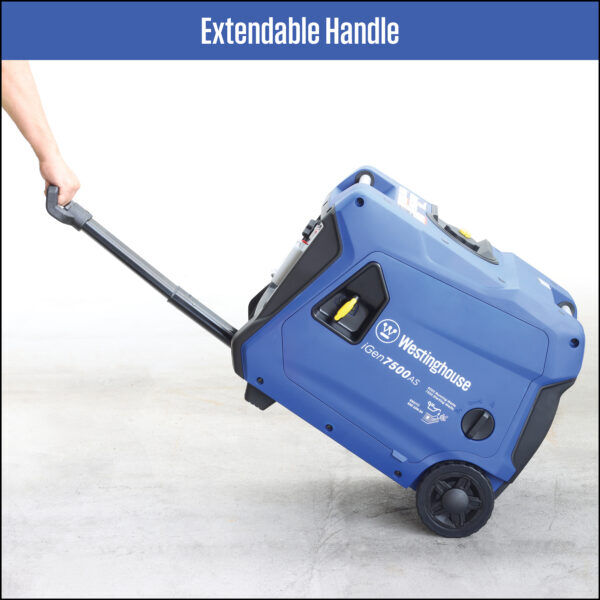

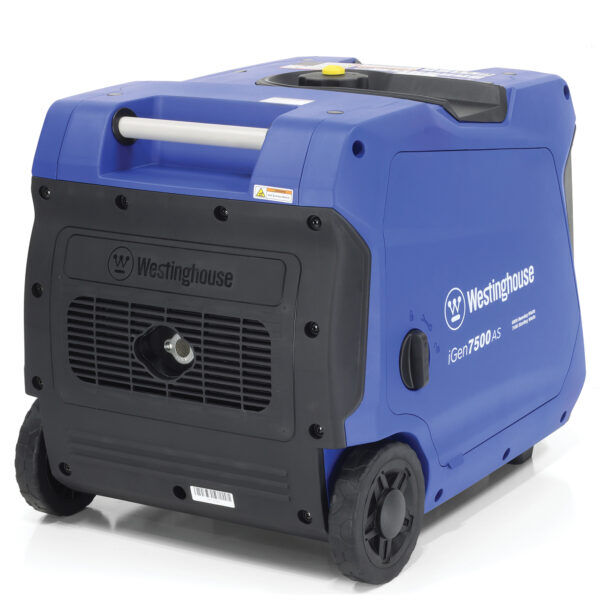

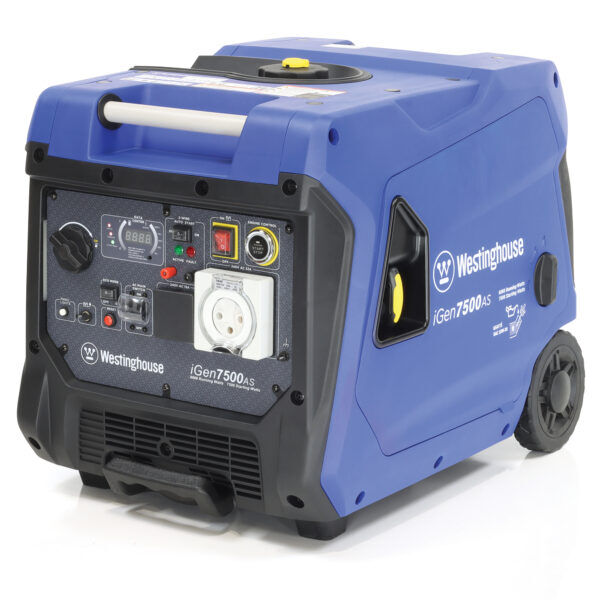

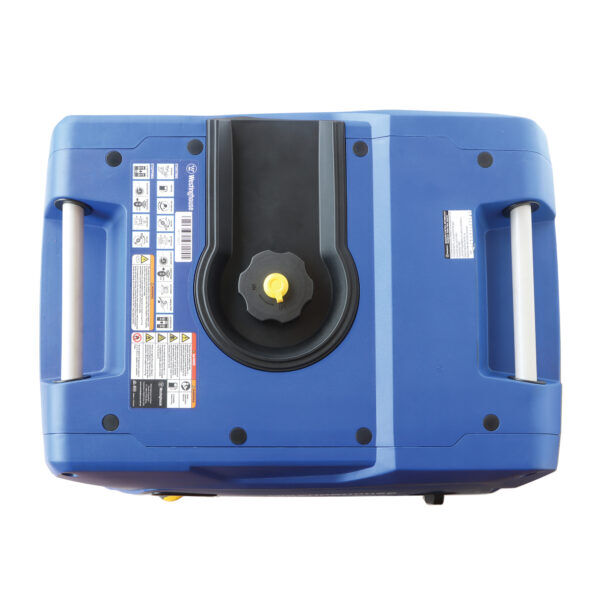

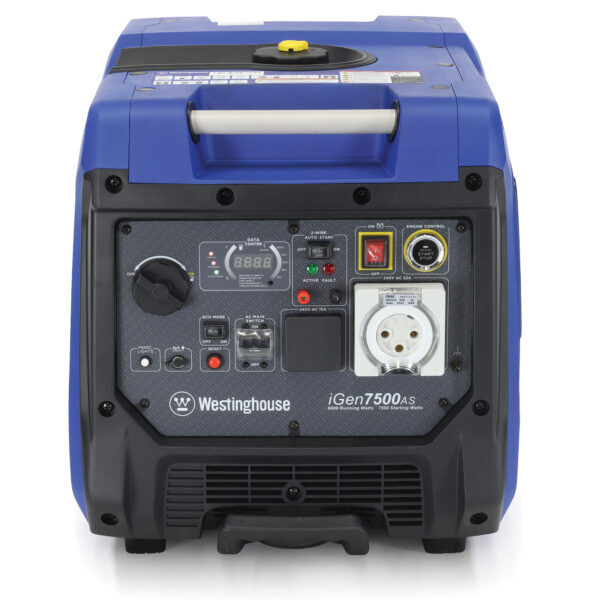

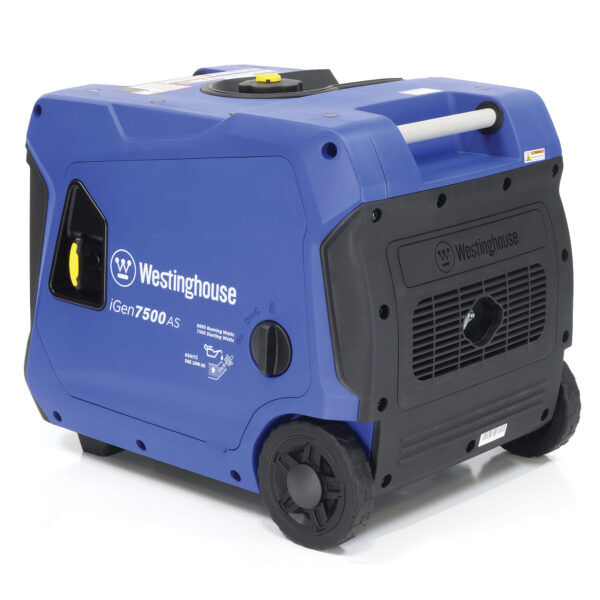

7500AS Digital Inverter Generator Westinghouse iGen7500AS

DESCRIPTION:

The new iGen7500AS delivers high-capacity portable power with the flexibility of 2-wire automatic remote start for integration with off-grid solar and backup power systems. Its strong output capability, extended runtime, and dual-outlet configuration make it suitable for larger loads, such as food vans and residential backup. Combining performance, convenience, and intelligent 2-wire control functionality, the iGen7500AS is a versatile solution for high-demand applications.

FEATURES:

High output 7500 starting watts / 6000 running watts.
Push-button electric start with wireless remote control.
2-wire automatic start, run, and stop control system.
Super quiet noise level ideal for home or public area use.
Up to 14.6 hours run time at 1/4 load on a 15-litre tank of fuel.
298cc Westinghouse 4-stroke OHV petrol engine.
LED lights illuminate the control panel for use at night.A
240 Volt AC plug-in charger to maintain the onboard battery.
240 volt, 15amp & 32amp AC outlets plus data center.
2-year domestic use warranty (conditions apply).

BENEFITS:

Powerful: Highest starting and running power outputs in its class.
Remote control: Convenient push-button start and stop from a distance.
LED Lights: Illuminate the control panel for nighttime operation.
32-Amp Socket Outlet: Run a food truck or other big unit load unit up to 6kW.
Super Quiet: Low noise level ideal for home or public area use.
Mains Quality Electricity: Safe to power sensitive electronic equipment.
Electric Start: One-touch power-up from the onboard 12-volt battery.
Off-Grid Solar or Mains Backup: 2-wire remote auto start, run, and stop control.
Battery Charger: Keep your generator ready to go at all times.
32 to 15-Amp Adaptor: Connect a standard plug into the 32-Amp socket.
Long Running: Up to 14.6 hours at 1/4 load with a 15 litre fuel tank.

SPECIFICATIONS:

ENGINE

Type	1-Cylinder, 4-Stroke, Overhead Valve, Air Cooled
Displacement (cc)	298
Maximum Speed (rpm)	4,000
Oil Capacity (mL)	650
Oil Viscosity	SAE 10W-30
Low Oil Shutdown	Yes
Low Oil Alarm Indicator	Yes
Spark Plug	Torch F7RTC
Fuel	Unleaded Petrol # (91, 95 or 98 RON)
Fuel Tank Capacity (L)	15
Fuel Shutoff Valve	Yes, Independent
Starting Method	Local / Remote Electric and Recoil
Battery	12 V, Maintenance Free
Run Time @ 1/4 / Full Load	14.6 / 4.6 hours
Noise Level @ 1/4 / Full Load	57 / 67 dB(A) @ 7 m TBA

240 VOLT AC ELECTRICAL

Voltage (V)	240
Frequency (Hz)	50
Number of Phases	1
Continuous Running Power (W) *	6,000
Maximum Starting Power (W)	7,500
Continuous Running Current (A)	25
Voltage & Waveform Control	Digital Inverter, Pure Sine Wave Output
Total Harmonic Distortion (THD)	< 2.5%
Receptacles	1 x 32 A, IP66 & 1 x 15 A, IP44
Overload Protection	Electronic
Overload Indicator	Yes
Alternator	Brushless, Permanent Magnet
Overload Reset	Push Button
Output Ready Indicator	Yes
Data Center Display	Output Power & Voltage, Fuel Level, Fuel & Cumulative Run Times
Control Panel Lights	LED, Operable At All Times

DIMENSIONS & WEIGHT

Generator L × W × H (mm)	690 x 530 x 550
Generator Weight - Dry / Wet (kg)	60 / 73
Packed L × W × H (mm)	857 x 580 x 593
Packed Weight (kg)	70

Part Number/SKU: iGen7500AS
