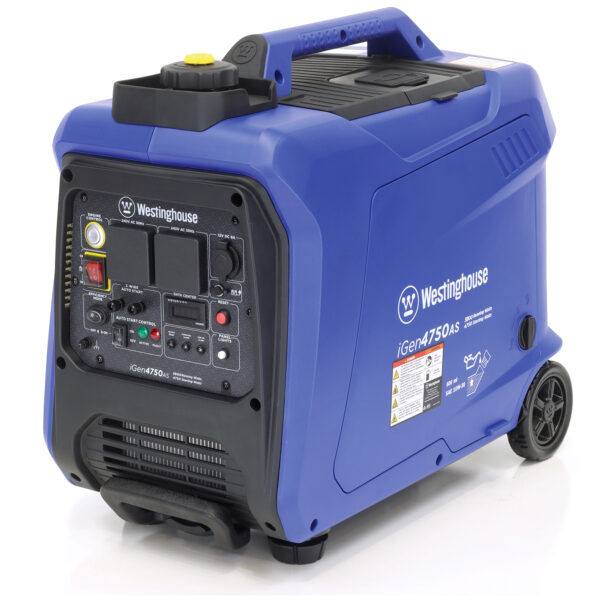

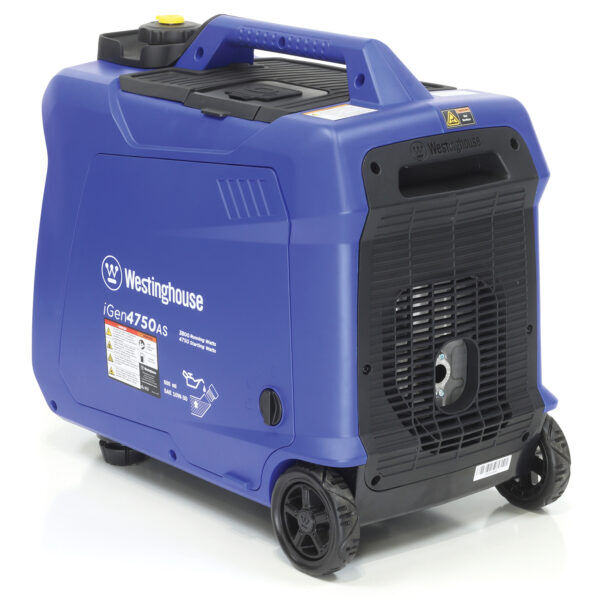

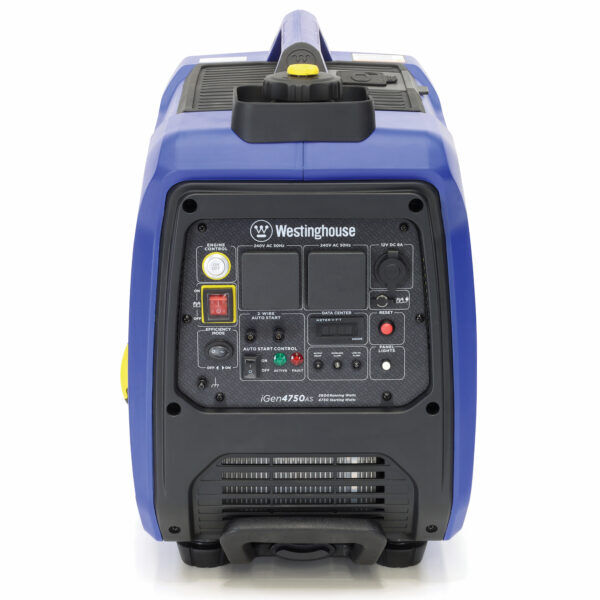

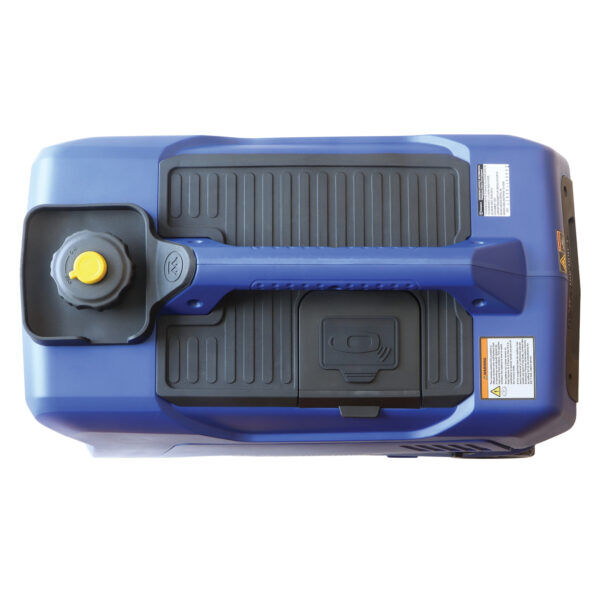

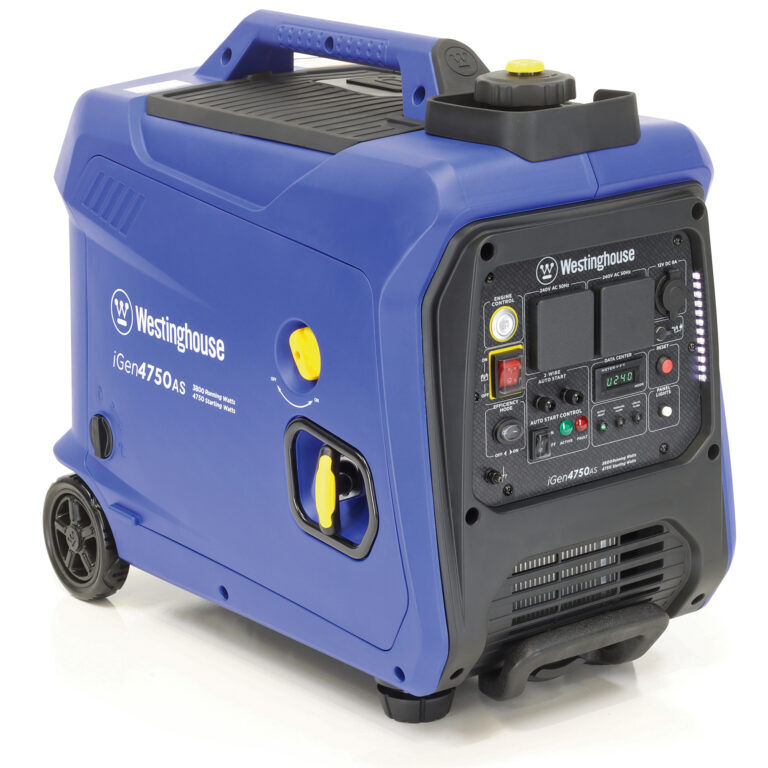

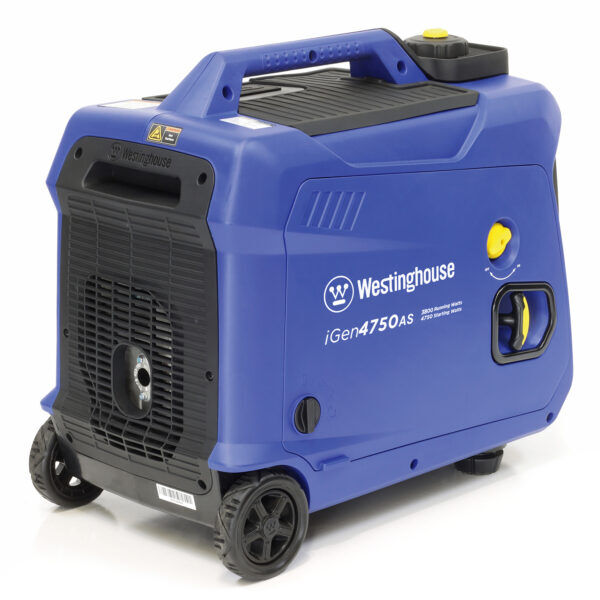

4750AS Digital Inverter Generator Westinghouse iGen4750AS

DESCRIPTION:

The new iGen4750AS delivers a powerful and flexible portable power solution with the added capability of 2-wire automatic remote start for integration with off-grid solar and backup power systems. It combines strong performance, quiet operation, and extended run time in a compact and mobile design. With electric start, remote control, and intelligent 2-wire control functionality, the iGen4750AS is well-suited to both home backup and advanced off-grid applications.

FEATURES:

High output 4750 starting watts / 3800 running watts.
Push-button electric start with wireless remote control.
2-wire automatic start, run, and stop control system.
Super quiet noise level for off-grid solar or mains backup use.
Up to 14 hours run time at 1/4 load on a 12-litre tank of fuel.
190cc Westinghouse 4-stroke OHV petrol engine.
LED lights illuminate the control panel for use at night.
240 Volt AC plug-in charger to maintain the onboard battery.
240 Volt AC and 12 Volt DC outlets plus a data center.
2-year domestic use warranty (conditions apply).

BENEFITS:

Powerful: Highest starting and running power outputs in its class.
Remote Control: Convenient push-button start and stop from a distance.
LED Lights: Illuminate the control panel for night-time operation.

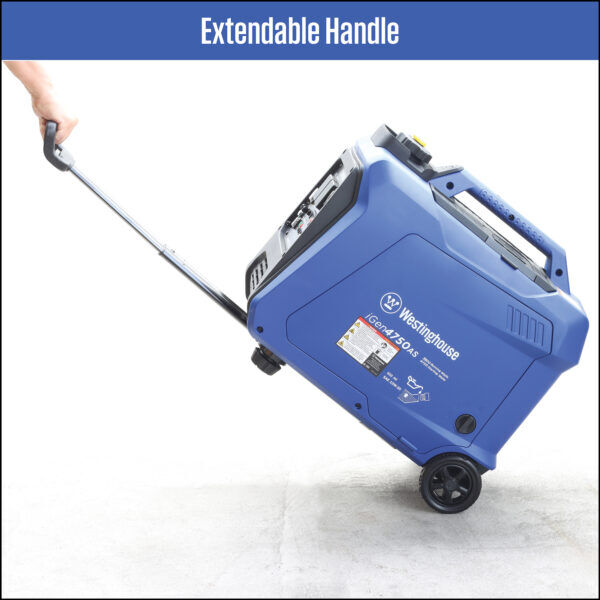

Lightweight: Portable at just 36kg with handles and wheels.
Long Running: Up to 14 hours at 1/4 load with a 12 litre fuel tank.
Plug And Play: No assembly required, just add petrol.
Electric Start: One-touch power-up from the onboard 12-volt battery.
Off-Grid Solar or Mains Backup: 2-wire remote auto-start, run and stop control.
Battery Charger: Keep your generator ready to go at all times.
Super Quiet: Low-noise level ideal for home or off-grid RV use.
Mains Quality Electricity: Safe to power sensitive electronic equipment.

SPECIFICATIONS:

ENGINE

Type	1-Cylinder, 4-Stroke, Overhead Valve, Air Cooled
Displacement (cc)	190
Maximum Speed (rpm)	4,500
Oil Capacity (mL)	600
Oil Viscosity	SAE 10W-30
Low Oil Shutdown	Yes
Low Oil Alarm Indicator	Yes
Spark Plug	Torch F7RTC
Fuel	Unleaded Petrol # (91, 95 or 98 RON)
Fuel Tank Capacity (L)	12
Fuel Shutoff Valve	Yes, Independent
Starting Method	Local / Remote Electric and Recoil
Battery	12 V, Maintenance Free
Run Time @ 1/4 / Full Load	14 / 4.2 hours
Noise Level @ 1/4 / Full Load	57 / 67 dB(A) @ 7 m

240 VOLT AC ELECTRICAL

Voltage (V)	240
Frequency (Hz)	50
Number of Phases	1
Continuous Running Power (W) *	3,800
Maximum Starting Power (W)	4,750
Continuous Running Current (A)	15.8
Voltage & Waveform Control	Digital Inverter, Pure Sine Wave Output
Total Harmonic Distortion (THD	< 2.5%
Receptacles	2 x 15 A, IP44
Overload Protection	Electronic
Overload Indicator	Yes
Overload Reset	Push Button
Alternator	Brushless, Permanent Magnet
Output Ready Indicator	Yes
Data Centre Display	Output Voltage & Frequency, Current & Cumulative Run Times
Control Panel Lights	LED, Operable At All Times

12 VOLT DC ELECTRICAL

Voltage (V)	12
Maximum Current (A)	8
Maximum Power (W)	100
Receptacle	8 A, IP44

DIMENSIONS & WEIGHT

Generator L × W × H (mm)	643 x 374 x 574
Generator Weight - Dry / Wet (kg)	36 / 46
Packed L × W × H (mm)	750 x 460 x 588
Packed Weight (kg)	42

Part Number/SKU: iGen4750AS
