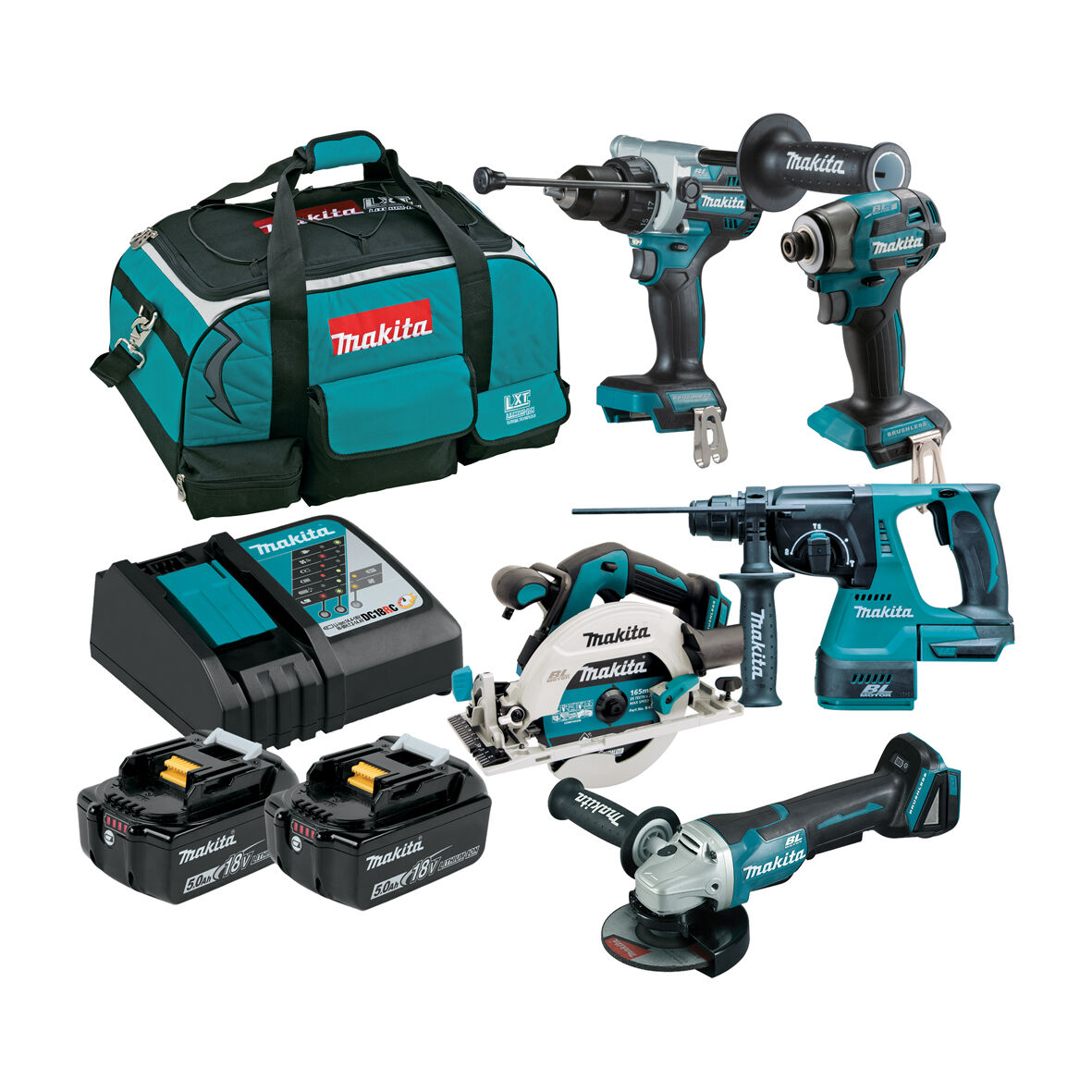

18V Brushless 5 Piece Combo Kit Makita DLX5101TX1

INCLUDES:

  • DHP486Z - 18V Brushless Hammer Drill Driver
  • DTD173Z - 18V Brushless Impact Driver
  • DGA508Z - 18V Mobile Brushless 125mm Paddle Switch Angle Grinder
  • DHR242Z - 18V Brushless 24mm SDS Rotary Hammer
  • DH6680Z - 18V Mobile Brushless 165mm Circular Saw
  • 2 x BL1850B - 5.0Ah Batteries
  • DC18RC - Single Port Rapid Charger
  • 199936-9 - Tool Carry Bag

18V Brushless Heavy Duty Hammer Driver Drill Makita DHP486Z

DESCRIPTION:

The 18V brushless hammer driver drill (DHP486) provides 141Nm of maximum fastening torque and no load speed of 2,100rpm combining rapid drilling speeds with high levels of torque. This model has been redesigned with a newly designed motor and gear ratio achieveing not only more power but also increasing the performance in continuous heavy-duty applications. Not only has the performance on this model been increased, but it is also considerably shorter. At 178mm in length, this model is 27mm shorter than the previous model. Making it the most compact drill in its class and extremely comfortable to use in all applications.

FEATURES:

  • Massive drilling capacity with a 152mm hole saw and 50mm auger bit capacity.
  • Compact overall length of only 178mm for use in narrow workspaces.
  • High-powered brushless motor produces 141 N · m peak torque.
  • High durability aluminium gear housing
  • Mechanical 2-speed gearing with all-metal gear construction.

SPECIFICATIONS:

Voltage 18V
Max Drilling Capacities in Wood Auger Bit: 50mm
Self-feeding Bit: 76mm
Hole Saw: 152mm
Max Drilling Capacities in Steel 13mm
Max Drilling Capacities in Masonry 16mm
No Load Speed Hi: 0 - 2100rpm
Lo: 0 - 550rpm
Impact Rate Hi: 0 - 31500ipm
Lo: 0 - 8250ipm
Max Peak Torque 141Nm
Max Tightening Torque Hard: 130Nm
Soft: 65Nm
Dimensions (L x W x H) 320mm x 130mm x 205mm
Weight 2.1kg

18V LXT LI-ION CORDLESS BRUSHLESS 4-SPEED IMPACT DRIVER MAKITA DTD173Z

DESCRIPTION:

Experience precision, power, and control like never before with the Makita DTD173 impact driver. Featuring an innovative battery layout, this tool stands out by repositioning the centre of gravity in line with the grip. The result? Enhanced balance and stability for superior control in every application. With a maximum fastening torque of 180Nm, the DTD173 tackles heavy-duty tasks effortlessly, while its 4-stage speed selection and assist mode variations provide optimal control for every job. At only 111mm in length, its compact design excels in tight spaces, and the quick switch button allows seamless one-handed mode adjustments for uninterrupted workflow. For added durability and precision, the enhanced bit holder minimises wobble, ensuring accuracy when it matters most. Whether you're a professional tradesperson or a DIY enthusiast, the Makita DTD173 is engineered to deliver performance and reliability every time.

FEATURES:

  • Optimised battery layout, moves the centre of gravity in line with the grip for enhanced control.
  • Maximum fastening torque of 180Nm for heavy-duty applications
  • 4-stage speed selection and 4 assist mode variations for optimised speed control.
  • Compact design at only 111mm in length for comfortable use in tight spaces.
  • Quick switch button for single-handed mode selection.
  • Enhanced bit holder provides reduced bit wobble.

SPECIFICATIONS:

Voltage 18V
Max Power Output 290W
Capacities 6.35mm (1/4") Hex
Machine Screw: M4-M8
Standard Bolt: M5-M16
High Tensile Bolt: M5-M14
Coarse Thread: 22-125mm
Max Fastening Torque 180Nm
Impacts Per Minute Maximum: 0-3,800ipm
High: 0-3,600ipm
Medim: 0-2,600ipm
Low: 0-1,100ipm
No Load Speed Maximum: 0-3,600rpm
High: 0-3,200rpm
Medim: 0-2,100rpm
Low: 0-1,100rpm
LXT Battery Compatibility 1.5Ah, 3Ah, 4Ah, 5Ah, 6Ah
Dimensions (L x W x H) 143mm x 97mm x 213mm
Weight 1.04kg

18V Mobile Brushless 125mm Paddle Switch Angle Grinder Makita DGA508Z

DESCRIPTION:

The DGA508 18V mobile brushless angle grinder features an electric brake and paddle switch. This grinder is ideal for end users looking for the safety and efficiency of an electric brake previously only seen in Makita's AC grinders. Powered by Makita's 18V lithium-ion technology and a powerful, patented BL  brushless motor, the DGA508Z is designed to suit the needs of tradies looking for a powerful mobile alternative for grinding and cutting anything from steel to concrete. The DGA508Z angle grinder also features automatic torque drive, kickback detection, soft start and anti-restart.

FEATURES:

  • The electric brake quickly slows the wheel rotation to a complete stop after the switch has been disengaged.
  • Soft start allows slower initial disc RPM before reaching full speed, to reduce start-up shock, ensuring user safety.
  • The automatic torque drive automatically reduces RPM to increase torque when in tougher conditions.
  • Kickback detection shuts down the tool to protect the user if the rotation speed suddenly slows down.
  • Anti-restart function: if the battery is inserted while the switch is engaged, the tool will not start. The switch must be released and engaged again.
  • XPT eXtreme protection technology enhances dust and drip-resistant performance, protecting electrical components.
  • BL brushless motor provides the tool with more power and longer runtimes.

SPECIFICATIONS:

Voltage 18V
Wheel size 125mm
Bore 22.23mm
No load speed 8500rpm
Switch type Paddle
Length 362mm
Weight 2.6kg

Rotary Hammer SDS Plus 18V Mobile Brushless 24mm DHR242Z

DESCRIPTION:

These genuined makita 18 volt rotary hammer drills from the LXT range feature a brushless DC motor, which helps reduce energy loss by 30% compared to that of a brushed rotary hammer. The one-touch sliding SDS plus chuck ensures easy bit changing. A 3-mode operation system makes these rotary hammers a must have the serious tradesperson. The angle positioning mechanism allows a chisel bit to rotate a full 350 degrees with 40 different locking positions makes this toll is as versatile as it is tough. Also features variable speed trigger, torque limiter, ergonomic & comfortable handle, and vibration absorbing design.

FEATURES:

  • A brushless DC motor helps to reduce energy loss by 30%.
  • One-touch sliding SDS plus type chuck.
  • Variable speed control by trigger.
  • Torque limiter.
  • Easy-to-grip handle, ergonomically designed to provide a sure and comfortable grip in any application.
  • Natural position on mode selector provides 40 different bit angle settings.
  • 3-mode operation: Rotation + hammering, hammering only, rotation only.
  • Unique rubber joint construction suppresses the transmission of vibration to battery terminals, minimising battery failures.
  • The tool body is separated into the upper and lower housings with vibration-absorbing cushion rubbers.

SPECIFICATIONS:

Voltage 18V
Drive shank SDS Plus
Impact rate 0  -4700ipm
Joules 2.0J
No load speed 0 - 950rpm
Max capacity Concrete: 24mm
Steel: 13mm
Wood: 27mm
Vibration 13.5m/s²
Length 328mm
Weight 3.3kg

Circular Saw 165mm 18V Mobile Brushless DHS680Z

DESCRIPTION:

The new Makita 18V circular saw DHS680Z features a powerful brushless DC motor, making it outperform previous models with durability and performance. Compatible with all 18V batteries, its compact and lightweight design makes it the ideal circular saw for any jobsite or DIY handyman.

FEATURES:

  • Powerful brushless DC motor (BLDC).
  • Automatic torque drive: automatically increases motor torque according to load conditions.
  • Magnesium base with 45 and 50 degrees of bevel cutting capacity.
  • Compact and lightweight design.
  • Rear dust exhaust port.
  • Twin LED job light with pre-glow.
  • LED indicator panel with 3 indicators for: battery fuel gauge, automatic torque drive, and overload protection.
  • Tool hanger for hanging on a ladder or after.
  • Large lock-off lever easily operated even with a gloved hand.
  • Compatible with all 18V Li-ion batteries.

SPECIFICATIONS:

Voltage 18V
No Load Speed 5,000rpm
Bevel Capacity 50º
Blade Diameter 165mm
Max Cutting Capacities 0º: 57mm
45º: 41mm
50º: 37mm
Weight 3.3kg
Length 350mm

2 X Battery 18V Li-Ion 5.0AH Loose BL1850B-L

DESCRIPTION:

The Makita 18V LXT Li-ion 5.0Ah battery, BL1850B-L, charges faster and works longer than standard Li-ion batteries, giving you and your cordless tools unmatched performance and productivity to take on the most demanding applications. The Makita 5.0Ah battery combines more run time (66% more run time per charge than makita BL183 3.0Ah battery) with a category-leading charge time of only 45 minutes, so it spends more time working and less time sitting on the charger. For added convenience, it also features an L.E.D. charge level indicator to monitor battery charge. The BL1850B-L resists self-discharge, so it is ready for use even after long periods of little to no usage.

FEATURES:

  • Integrated L.E.D battery charge level indicator allows the user to monitor battery charge.
  • Up to 66% more run time per charge compared to BL1830.
  • Fast 45-minute charging time.
  • Battery delivers consistent power and run time in extreme temperatures, even in winter (-20°C).
  • The impact-resistant outer case and shock-absorbing inner liner are engineered to protect the battery.
  • Sizteen contact terminals maintain a constant connection with the tool to help prevent power loss or fluctuation, even during high-vibration applications.
  • Battery resists self-discharge and remains ready for use even after long periods of storage.
  • Sensitive electronics are protected with a thick gel coating, preventing damage from dust and moisture.
  • Star protection computer controls include overload protection, over-discharge protection, and overheat protection.
  • The battery and tool communicate, protecting your tool and battery from overload by cutting power when subjected to abnormally high current draw.
  • If the battery reaches a certain level of heat, it will cut power to the tool, protecting the tool and battery from overheating.

SPECIFICATIONS:

Voltage 18V
Amp hour 5.0Ah
Cell type Lithium-Ion
Charging time 45 minutes
Weight 0.6kg

Single Port Rapid Charger Makita DC18RC

FEATURES:

  • Built-in CPU gathers information from the battery's memory chip to determine the charging method.
  • The forced air cooling fan cools the battery to minimise charging time.
  • Digital power display identifies the condition of the battery and the charging condition.

SPECIFICATIONS:

Voltage 18V
Cell capacity 1.5Ah - 6.0Ah
Charge Time 1.5Ah: 15mins
3.0Ah: 22mins
4.0Ah: 36mins
5.0Ah: 45mins
6.0Ah: 55mins
Length 185mm
Weight 0.82kg

600M LARGE CORDLESS TOOLS DUFFEL CARRY BAG LXT401 MAKITA 199936-9

DESCRIPTION:

Makita's large tool bag is made of durable and lightweight materials. The bag features a spacious interior for holding tools and accessories. The bag features both a carrying handle and a shoulder strap for added user convenience. Built-in wheels for easy transporting.

FEATURES:

  • Wide, deep main pocket provides quick tool location and easy access.
  • Adjustable heavy-duty shoulder belt makes lifting more comfortable.
  • Metal hooks at the ends to unfasten the belt when not needed.
  • Handles made of polypropylene tape and form - extra comfort.



SPECIFICATIONS:

Dimensions (L x W x H) 600mm x 300mm x 300mm
Weight 1.9kg




Part Number/SKU: DLX5101TX1

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU DLX5101TX1
Brand Makita
Shipping Weight 20.00kg
Shipping Width 0.450m
Shipping Height 0.450m
Shipping Length 0.600m
Shipping Cubic 0.121500000m3
Unit Of Measure Pk
