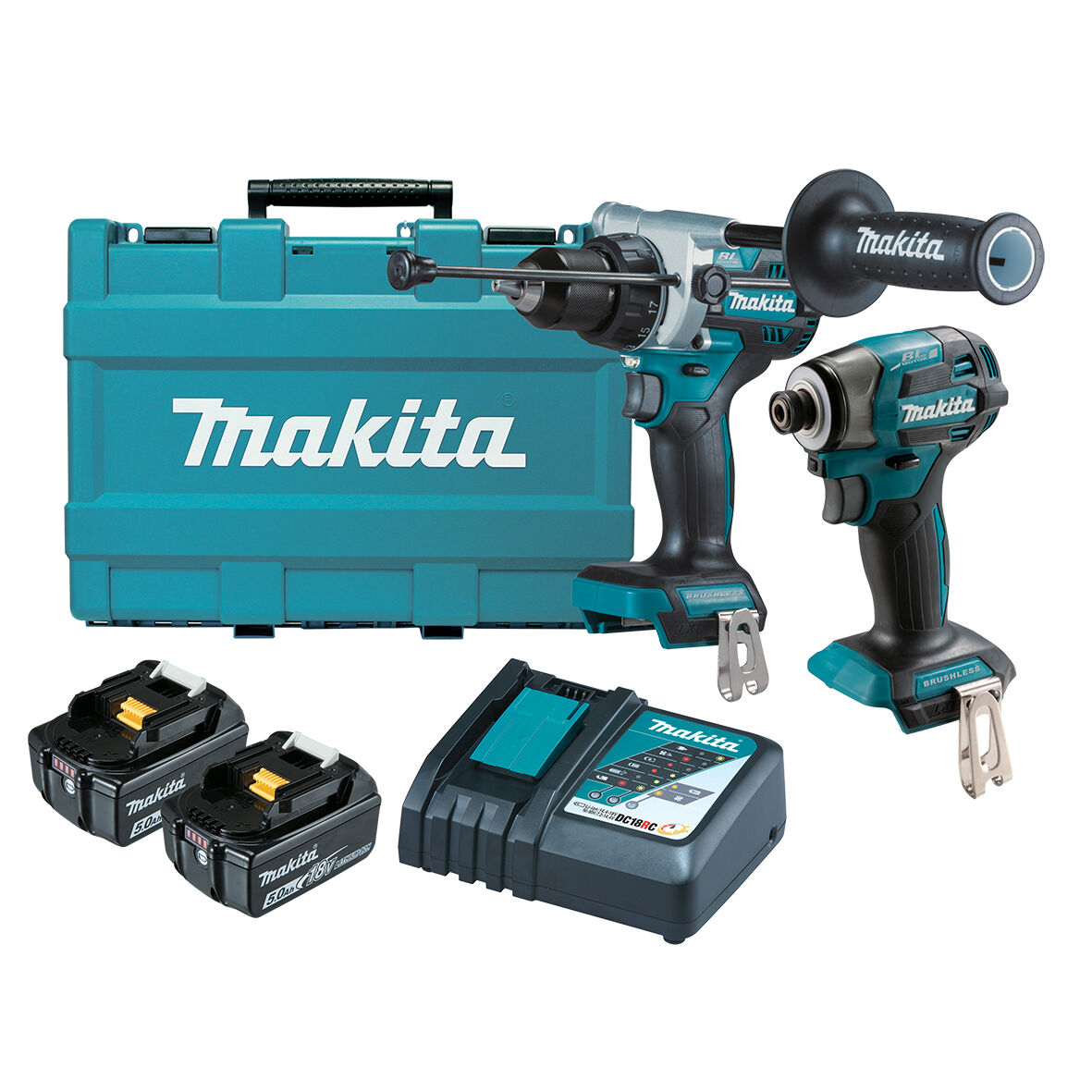

18V Brushless 2 Piece Combo Kit Makita DLX2516T

KIT INCLUDES:

  • DHP486Z - 18V Brushless Hammer Driver Drill
  • DTD173Z - 18V Brushless Impact Driver
  • 2 x BL1850B - 5.0Ah Batteries
  • DC18RC - Single Port Rapid Charger
  • Carry Case

18V Brushless Heavy Duty Hammer Driver Drill Makita DHP486Z:

DESCRIPTION:

The 18v brushless hammer driver drill provides 141 Nm of maximum fastening torque and no load speed of 2100 rpm, combining rapid drilling speeds with high levels of torque. This model has been redesigned with a newly designed motor and gear ratio, achieving not only more power but also increasing the performance in continuous heavy-duty applications.
Not only has the performance on this model been increased, but it is also considerably shorter. At 178mm in length, this model is 27mm shorter than the previous model. Making is the most compact drill in its class and extremely comfortable to use in all applications.

FEATURES:

  • Compact Design: For improved handling and control, the overall length has been reduced by 27mm vs the previous model.
  • 3 Drilling Modes: Screwdriving mode (rotation with clutch) for achieving an even, consistent finish when fastening screws. Drilling mode (rotation only), achieving 141Nm max. torque. Hammer drilling mode (rotation with hammering) for drilling in masonry up to a maximum 16mm hole diameter.
  • LED Joblight: High brightness twin LED joblight with pre-glow and after-glow functions. Illuminating the working area for greater visibility during applications.
  • High Power Output: This model has been redesigned with a newly designed motor and gear ratio, achieving not only more power but also increasing the performance in continuous heavy-duty applications.
  • 2 Speed Mechanical Gearing: High speed mode produces 2100rpm for rapid drilling speed, while low speed produces high levels of torque to suit high load operation.
  • All Metal Gear Construction: Allow for smoothly transfer of power in high-load applications. while the highly durable materials ensure this tool has unmatched durability, and will continue to perform in years to come.
  • XPT: Extreme protection technology protects the tool against dust and moisture, even in the harshest jobsite conditions, increasing durability.

SPECIFICATIONS:

Max. drilling capacities in wood Auger bit: 50mm
Self-feeding bit: 76mm
Hole saw: 152mm
Max. drilling capacities in steel 13mm
Max. drilling capacities in concrete 16mm
No load speed Hi: 0 - 2,100rpm
Lo: 0 - 550rpm
Impact rate Hi: 0 - 31,500ipm
Lo: 0 - 8,250ipm
Max. peak torque 141Nm
Max. tightening torque Hard: 130Nm
Soft: 65Nm
Overall length 178mm
Skin weight 2.1kg
Weight (with battery) 2.7kg (BL1860B)
Voltage 18V

18V Brushless 4-Stage Impact Driver Makita DTD173Z:

FEATURES:

  • Optimised battery layout, moves the center of gravity in line with the grip for enhanced control.
  • Maximum fastening torque of 180Nm for heavy-duty applications.
  • 4-stage speed selection and 4 assist mode variations for optimised speed control.
  • Compact design at only 111mm in length for comfortable use in tight spaces.
  • Quick switch button for single-handed mode selection.
  • Enhanced bit holder provides reduced bit wobble.

SPECIFICATIONS:

Max. capacities standard bolt M5 -M16
Max. capacities of high tensile bolt M5 -M14
No load speed Max.: 0 - 3,600rpm
Hard: 0 - 3,200rpm
Med: 0 - 2,100rpm
Soft: 0 - 1,100rpm
Impact rate Max.: 0 - 3,800ipm
Hard: 0 - 3,600ipm
Med: 0 - 2,600ipm
Soft: 0 - 1,100ipm
Max. tightening torque Max.: 180Nm
Hard: 170Nm
Med: 50Nm
Soft: 20Nm
Drive shank 6.35mm(1/4") Hex
Overall length 111mm
Skin weight 0.9kg
Weight (with battery) 1.5kg
Voltage 18V

Battery Li-Ion 18V 5.0Ah BL1850B

FEATURES:

  • The fuel gauge indicator displays the charge remaining on the battery in four stages.
  • The built-in memory chip communicated the usage history with the charger.
  • Built-in shock absorbers protect the cells from job-site conditions.
  • High-energy cells pack more power per cell to reduce the number of cells and overall weight
  • Large release button for easy removal from the tool
  • Built-in air vents and wall cool the battery cells evenly whilst blocking damaging debris
  • 16 contact terminals provide consistent power and a firm hold in any environment

SPECIFICATIONS:

Capacity 5.0Ah
Energy capacity 90Wh
Charge time 45mins (Rapid Charger)
Overall length 110mm
Weight 0.63kg
Voltage 18V

Single Port Rapid Charger Makita DC18RC:

FEATURES:

  • Fat charging - charges Li-ion 3.0Ah battery in only 22 minutes
  • Built-in CPU - gathers information from the battery's memory chip to determine optimum charging method.
  • Forced air-cooling fan - cools the battery to minimize charging time.
  • Digital power display identifies the condition of the battery and the charging condition

SPECIFICATIONS:

Charge time BL1860B: 55mins
BL1850B: 45mins
BL1840B: 36mins
BL1830B: 22mins
BL1815N: 15mins
Overall length 156mm
Weight 0.75kg
Voltage 18V




Part Number/SKU: DLX2516T

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU DLX2516T
Brand Makita
Shipping Weight 10.5000kg
Shipping Width 0.350m
Shipping Height 0.250m
Shipping Length 0.550m
Shipping Cubic 0.048125000m3
Unit Of Measure Pk
