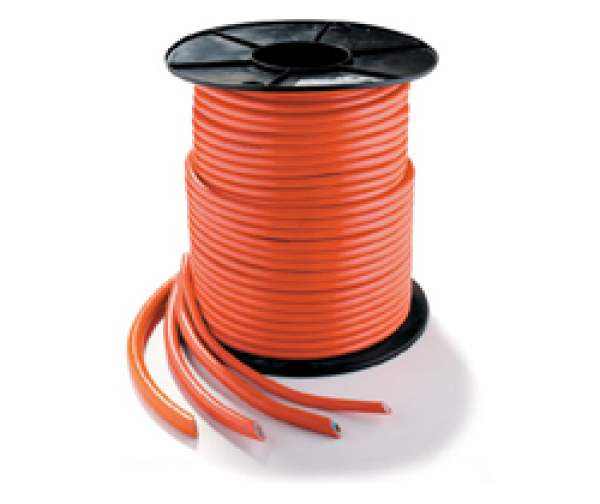

Welding and Battery Cable 10mm Sq



Flexible Welding Cables

Application: For use with arc welding equipment rated in accordance with AS 1966. Suitable for glanding
Conductor: Plain annealed copper (AS/NZS 1125)
Insulation: Nitrile-Butadiene-PVC Copolymer (TP-90,met RoHS)
Sheath: Nitrile-Butadiene-PVC Copolymer (TP-90,met RoHS)
Voltage: 0.6/1.0KV
Standards: AS/NZS 1995



Typical Features:

Electra
Cables
Part No

Nom Area mm2

Stranding
No/mm

Nom.
O/D mm

Nom Insulation Thickness
mm

Nom Sheath
Thickness
mm

Amp
Rating
100% duty cycle

Amp Rating* 60% duty cycle

Amp Rating* 30% duty cycle

Maximum
Resistance at
20°C ©/Km

ZW10

10

318/0.20

8.2

0.9

1.1

87

110

160

1.91

Note: * Current ratings specified are nominal only, derating factor will have to be applied in certain applications.


National Plus Guarantee



Quality Products at extraordinary rates. We choose from a range of dependable brands, that have proven that they can get the job done.

Our purchasing team negotiates with a variety of suppliers to deliver you quality products at affordable rates.

Seen a better price, or do you have any compliments or complaints? Contact us directly for after sales support and we’ll work together to solve any problems.



Part Number/SKU: ZW10

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU ZW10
Brand National Plus
Shipping Weight 2.0000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.300m
Shipping Cubic 0.003000000m3
Unit Of Measure m

Be The First To Review This Product!

Help other National Welding and Industrial Supplies users shop smarter by writing reviews for products you have purchased.

Write a product review
