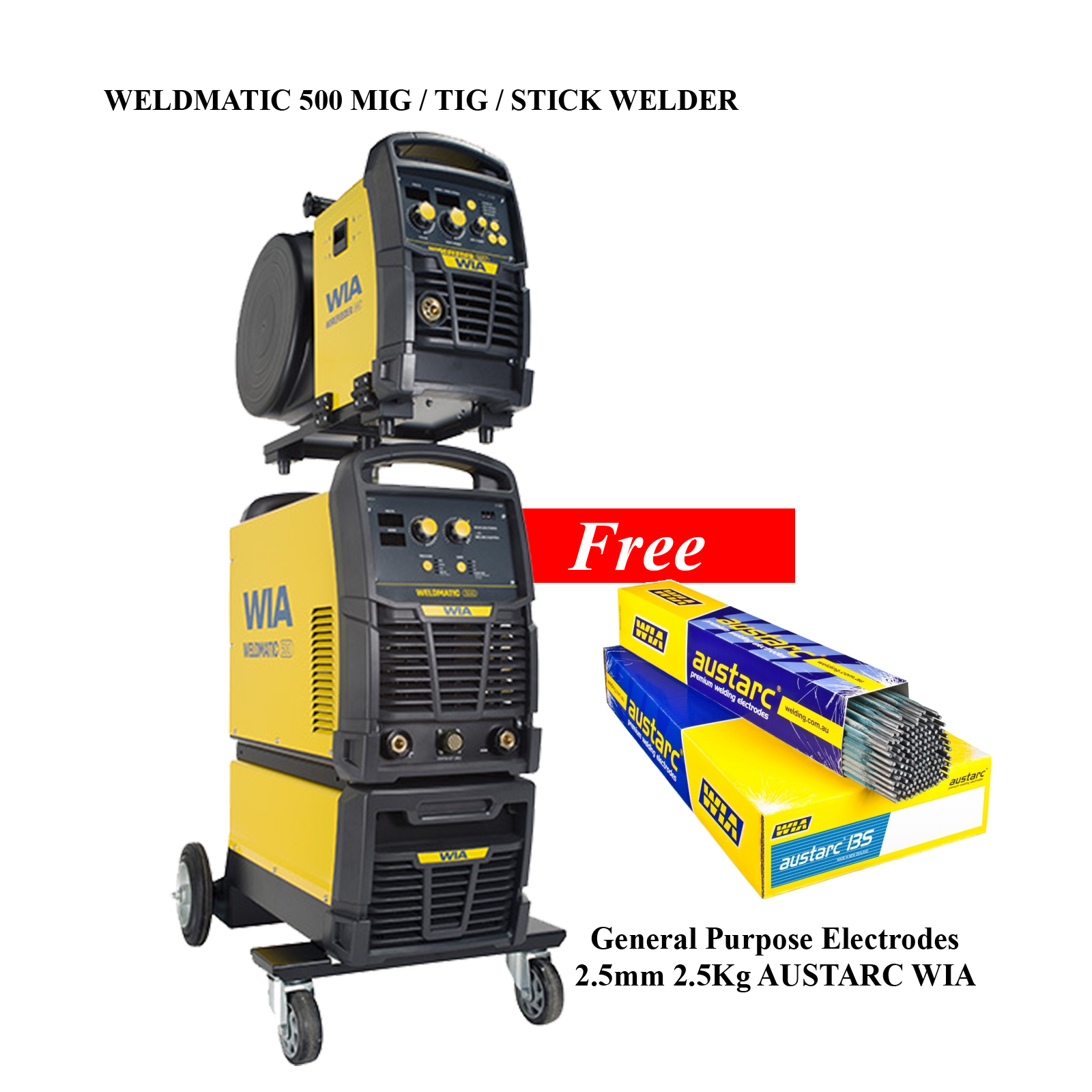

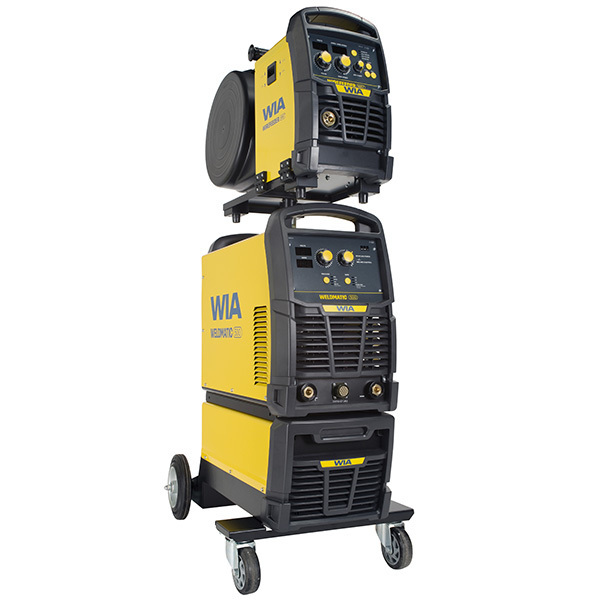

Weldmatic 500 MIG / TIG / STICK Welder CP145-1

The Weldmatic 500 is a powerful and robust multi-process machine built to perform for professional fabrication applications. Capable of MIG, TIG, and Stick welding, it offers optimal weld characteristics that provide high quality results.

Featuring Digital Volt and Amp meters, the 500 allows for easy and precise set up by retaining last weld information. Perfect for a workshop it comes packaged with a separate wire feeder for extra flexibility. Built for tough Australian conditions, and manufactured with 3 years warranty, the Weldmatic 500 offers reliability and performance that’s second to none.

• 500 A three phase MIG, Stick & TIG welder
• 500 A at 40 V 60% Duty Cycle
• Digital Meters - Easy to read and easy to adjust parameters
• Built-In Thermal Protection - Prevents the machine from operating beyond its safe thermal zone
• Four geared wire drive - Provides a consistent, smooth, and strong drive for a variety of wires
• Spot Timer - Provides short weld times for repetitive spot welds
• Creep Mode - Provides slow wire speed until weld starts - ideal for aluminum starts
• Burn Back - Controls how far the wire burns back to the tip on completion of the welding operation
• Suitable wires - Gas-shielded and gasless flux-cored wires
• Spool capacity - Takes 5kg and 15kg spools
• VRD (Voltage Reduction Device)
• IP21S rated
• Generator compatible - 35 kVa

PACKAGE INCLUDES

• Interconnecting Leads (10m)
• W67 4 Roll Drive Heavy Duty Wirefeeder
• Euro Gun Cable (3.6m) with Bernard Centerfire 0.9mm Tip
• Gas Regulator
• Drive Rollers – 0.9/1.2 & 1.2/1.6mm V Groove 0.9/1.2 & 1.2/1.6mm Knurled
• Industrial Twist Lock Electrode Holder (3m)
• Work Lead (10m) with Heavy Duty G Clamp

Part Number/SKU: CP145-1
