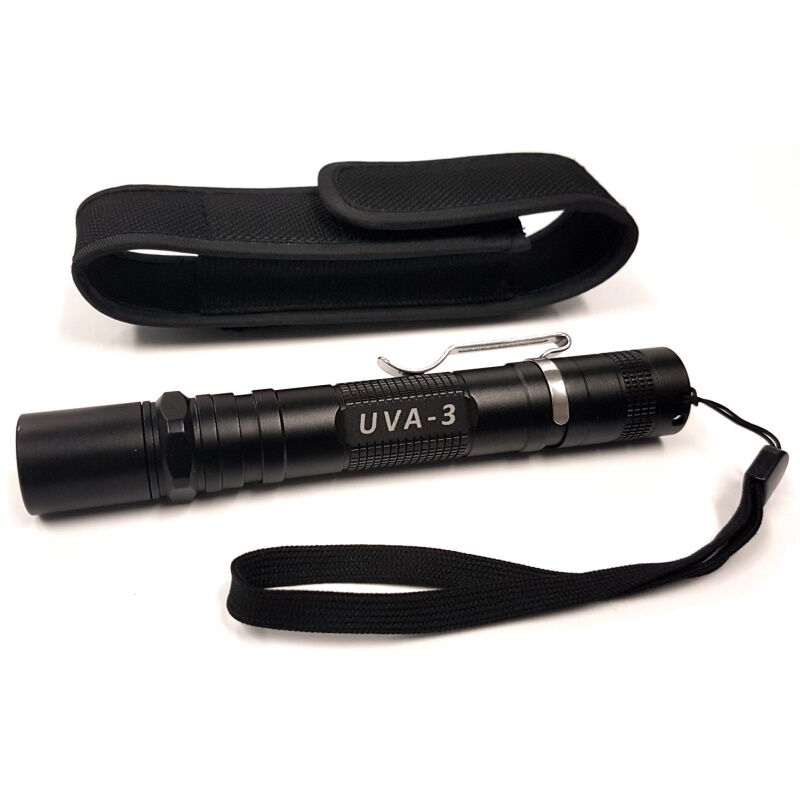

UVA-3 UV Flashlight

DESCRIPTION:

The UVA-3 is a handheld battery-powered ultraviolet inspection lamp used for a range of NDT applications. The filtered 365nm output makes it ideal for fluorescent magnetic particle inspection (MPI), and fluorescent dye penetrant inspection (DPI), as well as leak detection applications when used with a suitable additive (such as spectroline oil-glo).

FEATURES:

  • Fluorescent MPI and DPI.
  • Detect oil leaks (when using oil-glo).
  • Mineral identification.
  • Glue curing.
  • Fluorescence of special materials.

SPECIFICATIONS:

LED

Wavelength 365nm Ultraviolet Light
Output Approx. 9,000 µW/cm² at 38cm
Model 365nm-3W
Lifespan 20,000 hours

POWER

Battery 2 x AA
Run Time High light-50 mins

PHYSICAL

Length 15.1cm
Diameter 2.12cm (body diameter). 2.27cm (head diameter)
Weight 79.5g (excluding batteries)
Switch Tail click switch
Material Aircraft Grade Aluminium T6061
Reflector High-temperature vacuum-coated aluminium mirror reflector
Lens Tempering optical lens
Treatment premium Type III hard-anodized anti-abrasive finish
Waterproof IPX-8
Drop Height 1.5m impact resistance
Colour Black




National Plus Guarantee



Quality Products at extraordinary rates. We choose from a range of dependable brands, that have proven that they can get the job done.

Our purchasing team negotiates with a variety of suppliers to deliver you quality products at affordable rates.

Seen a better price, or do you have any compliments or complaints? Contact us directly for after sales support and we’ll work together to solve any problems.



Part Number/SKU: UVA-3

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU UVA-3
Brand National Plus
Shipping Weight 0.85kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.250m
Shipping Cubic 0.005000000m3
Unit Of Measure ea
