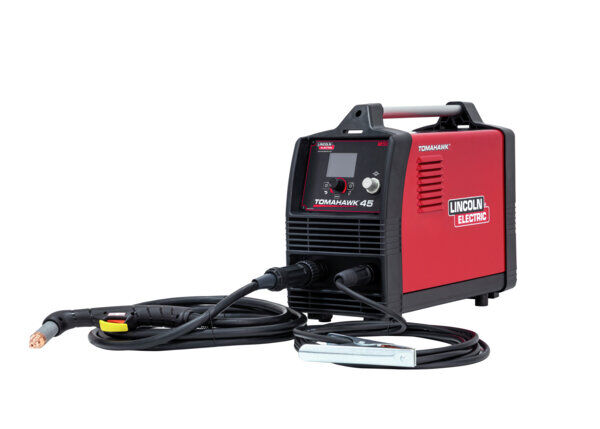

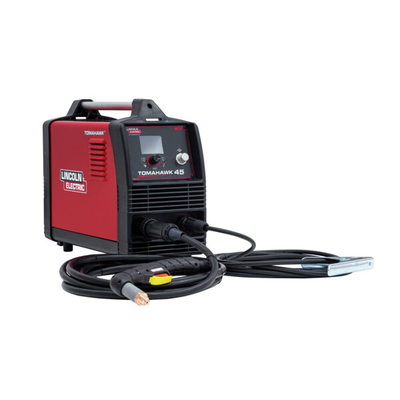

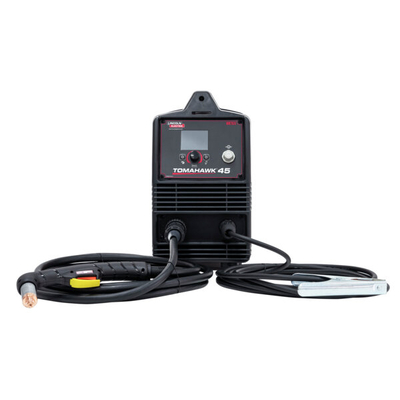

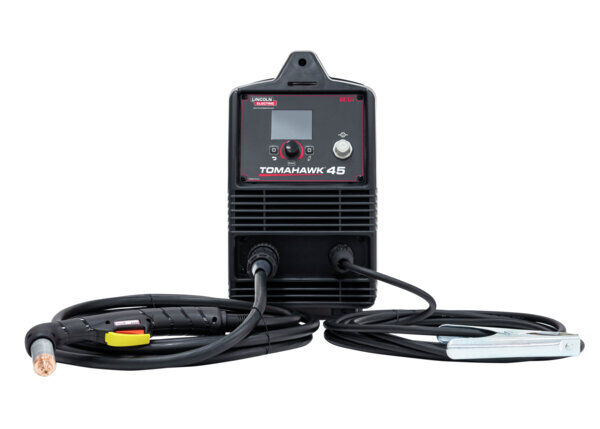

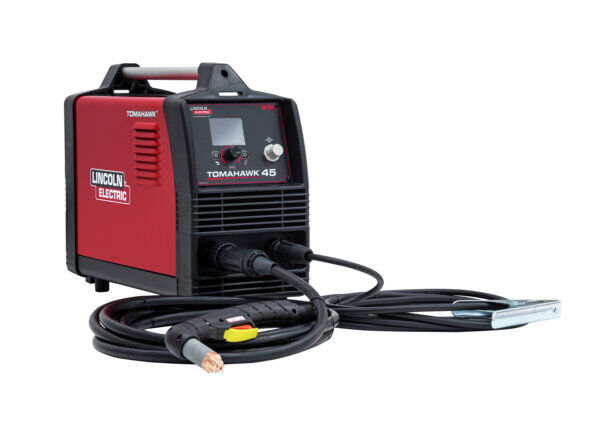

Tomahawk 45 Lincoln Plasma Cutter K14391-1

DESCRIPTION:

Plasma Cutter 45A - Cut up to 20mm Output current: 45A @45% - 240Vac Input

FEATURES:

  • FT 2,8” screen – For an easier and user friendly user interface
  • Continuous Output Control – Focus the arc for different material thickness.
  • Touch Start system – Reliable plasma arc initiation without high frequency
  • Rapid Arc Restrike – Fast cutting through gaps, even expanded metal
  • Front Panel Purge Control – Makes it easy to set the air flow rate without initiating the plasma arc.
  • Gouging and Grid modes ( adjustable grid’s time )
  • Cool Operation, Long Consumable Life – New electrode and nozzle design save you money in the long run.
  • Added Safety – Our Parts-in-Place system detects the correct installation of consumables and torch.
  • Lightweight and Portable – Easily carried by one person.
  • Engine Drive Compatible – Select a Lincoln Electric Outback® or Vantage® to power your Tomahawk® in remote locations.

WHAT'S INCLUDED:

  • LC45 Torch with 6 m cable
  • Air regulator and pressure gauge
  • Internal water separator
  • Work clamp and cable
  • Shoulder strap
  • Input power cord

SPECIFICATIONS:

GENERAL SPECIFICATIONS:

Machines Processes Plasma Cutting
Open Circuit Voltage 396Vdc
Input Voltage 120 - 230V ± 15%
Input Current 16A
Input Hertz 50/60 Hz
Input Phase 1Ph
Input Power 120/230/1/50-60 Hz (+/-15%)
Mode Icon CC
Output Range 15-45A
Polarity DC

PLASMA MACHINES:

Plasma Machines Process Cutting,   Gouging
Torch Included Yes
Torch Cooling Air
Gas Pressure Required 5,0bar – 6,0bar, 200±10% l/min
Recommended Cutting Capacity (Mild Steel) (mm/M) 16mm
Maximum Cutting Thickness (Mild Steel) (mm/M) 20mm
Maximum Severance (Mild Steel) (mm/M) 25mm
Recommended Cutting Capacity (Stainless) (mm/M) 16mm
Maximum Cutting Thickness (Stainless) (mm/M) 20mm
Maximum Severance (Stainless) (mm/M) 25mm
Recommended Cutting Capacity (Aluminum) (mm/M) 16mm
Maximum Cutting Thickness (Aluminum) (mm/M) 20mm
Maximum Severance (Aluminum) (mm/M) 25mm

MACHINE TECHNOLOGIES & CONNECTIONS:

Work Lead Connector Type Dinse

PRODUCT WEIGHT & DIMENSIONS:

Dimensions (H x W x D) 385 mm x 215 mm x 480 mm
Net Weight 18 kg

APPLICATIONS:

Typical Application:   Construction, General Fabrication, Maintenance & Repair, Structural Fabrication




Part Number/SKU: K14391-1

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU K14391-1
Brand Lincoln
Shipping Weight 23.5000kg
Shipping Width 0.750m
Shipping Height 0.750m
Shipping Length 0.750m
Shipping Cubic 0.421875000m3
Unit Of Measure ea
