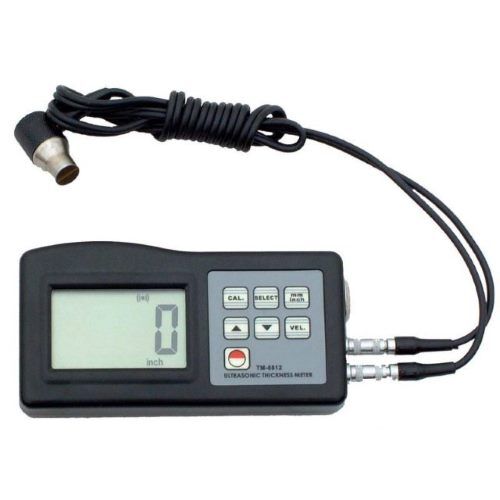

TM8812 Ultrasonic Thickness Gauge

DESCRIPTION:

The TM8812 is a handheld ultrasonic thickness gauge used to measure the thickness of materials. It has a wide measuring range of 1.5 to 225mm and high accuracy. It can measure hard materials including steel, iron, aluminium, copper, brass, zinc, polyethene, PVC, and other materials. The TM8812 is a reliable, easy-to-use tool perfect for a variety of applications.

APPLICATIONS OF THE TM8812 ULTRASONIC THICKNESS GAUGE INCLUDE:

Measuring the thickness of pipes and other metal objects.
Checking for corrosion or erosion on metal objects.
Measuring the thickness of materials in manufacturing processes.
Quality control in the production of materials.

SPECIFICATIONS:

Measuring Range	1.5-225mm (0.05-9 inch)
Materials Measured	Any hard materials, including steel, cast iron, aluminium, red copper, brass, zinc, quartz glass, polyethylene, PVC, grey cast iron, nodular cast iron and other materials
Sound Velocity	500 - 9000 m/s
Lower limit steel pipes	Ø15 x 2.0mm, Ø20 x 3.0mm (depending on transducer
Calibration block	5mm block included on the unit
Resolution	0.1mm (0.001 inch)
Accuracy	± 0.5n%n + 0.1
Transducer	5MHz 8mmØ twin crystal as standard
Power Supply	4 x AAA 1.5V (UM4) batteries
Battery Indicator	Low battery warning
Operating conditions	0° - 45°C (32°F-104°F), ≤80%RH
Dimensions	120 x 62 x 30mm
Weight	164g (not including batteries)

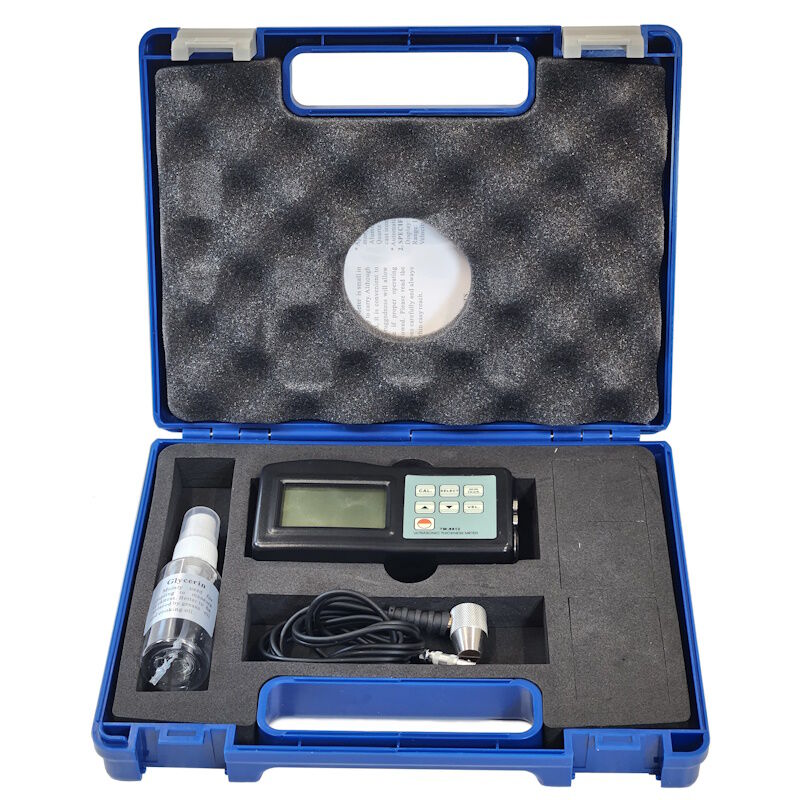

Kit includes	TM-8812 body, 5MHz 8mm transducer, User Manual, Carry Case

National Plus Guarantee

Quality Products at extraordinary rates. We choose from a range of dependable brands, that have proven that they can get the job done.

Our purchasing team negotiates with a variety of suppliers to deliver you quality products at affordable rates.

Seen a better price, or do you have any compliments or complaints? Contact us directly for after sales support and we’ll work together to solve any problems.

Part Number/SKU: TM-8812

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU	TM-8812
Brand	National Plus
Shipping Weight	2.00kg
Shipping Width	0.200m
Shipping Height	0.150m
Shipping Length	0.300m
Shipping Cubic	0.009000000m3
Unit Of Measure	ea
