TIG Welder AC/DC 400v 3 Phase Water-Cooled Unit MasterTIG-320CT

Includes

• 3PH 415V Power Source
• With TIG-18 torch/4M,
• electrode holder & earth clamp 3 metres
•  with built-in water cooler unit.

Unique MIX TIG

Everybody knows the AC current has good clearance and the DC current gets a good penetration. What if mix the AC and DC?
MIX TIG is a unique technology, it contains AC current and DC current in one duty cycle.

That keeps the advantages and reduces disadvantages from each other. Using the MIX TIG technology gets an excellent arc concentration and can be carried out the excellent welding performance, especially for thick plates

MIX TIG advantage

Nice weld appearance, deep penetration.

Excellent Arc Concentration.

Substantially reduce the electrode consumption.

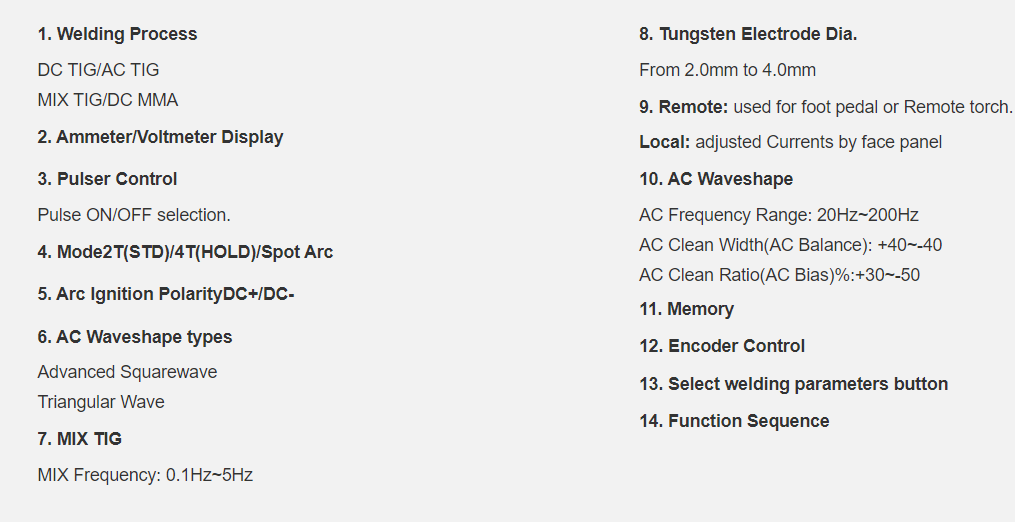

GENERAL VIEW OF CONTROL PANEL

HIGH-EFFICIENCY TIG WELDING
The maximum output is up to 500A. It’s capable of welding thin metal fast and thick metal continuously.
Mild steel 12mm V groove, 5 layers
Layer 1: 300A， Layer 2: 300A， Layer 3: 280A，
Layer 4: 280A， Layer 5: 260A



Part Number/SKU: MasterTIG320

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
