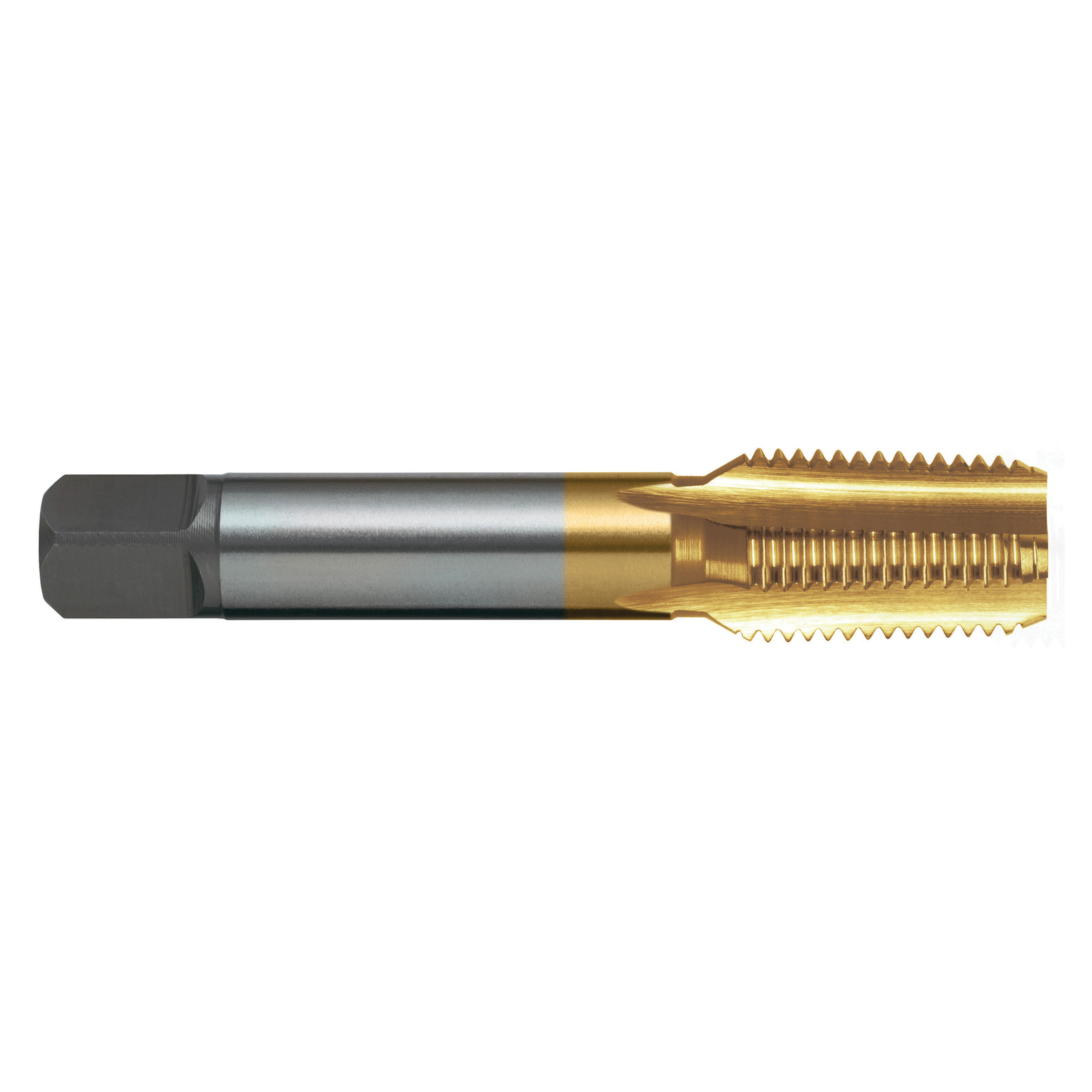

TAP T476 Rc 1/2-14 Z3 (BSPT) STR/FLT ISO2284 Bott HSS TiN Sutton Tools T4762096

Features

  • General-purpose use
  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Taper pipe reamer recommended before tapping Rc (BSPT) thread forms

Specifications

  • Designation: N (for normal general-purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Titanium Nitride (TiN)
  • Max Cut Depth: 1xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: ISO2284
  • Thread Form: ISO Rc Taper Series 1:16 - 55° (BSPT)
  • Nut Tolerance: To Suit
  • Lead: Bottoming

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered

Part Number/SKU: T4762096

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T4762096
Barcode # 9311963124292
Brand Sutton Tools
Shipping Weight 0.1380kg
Shipping Width 0.024m
Shipping Height 0.022m
Shipping Length 0.090m
Shipping Cubic 0.000048000m3
Unit Of Measure ea
