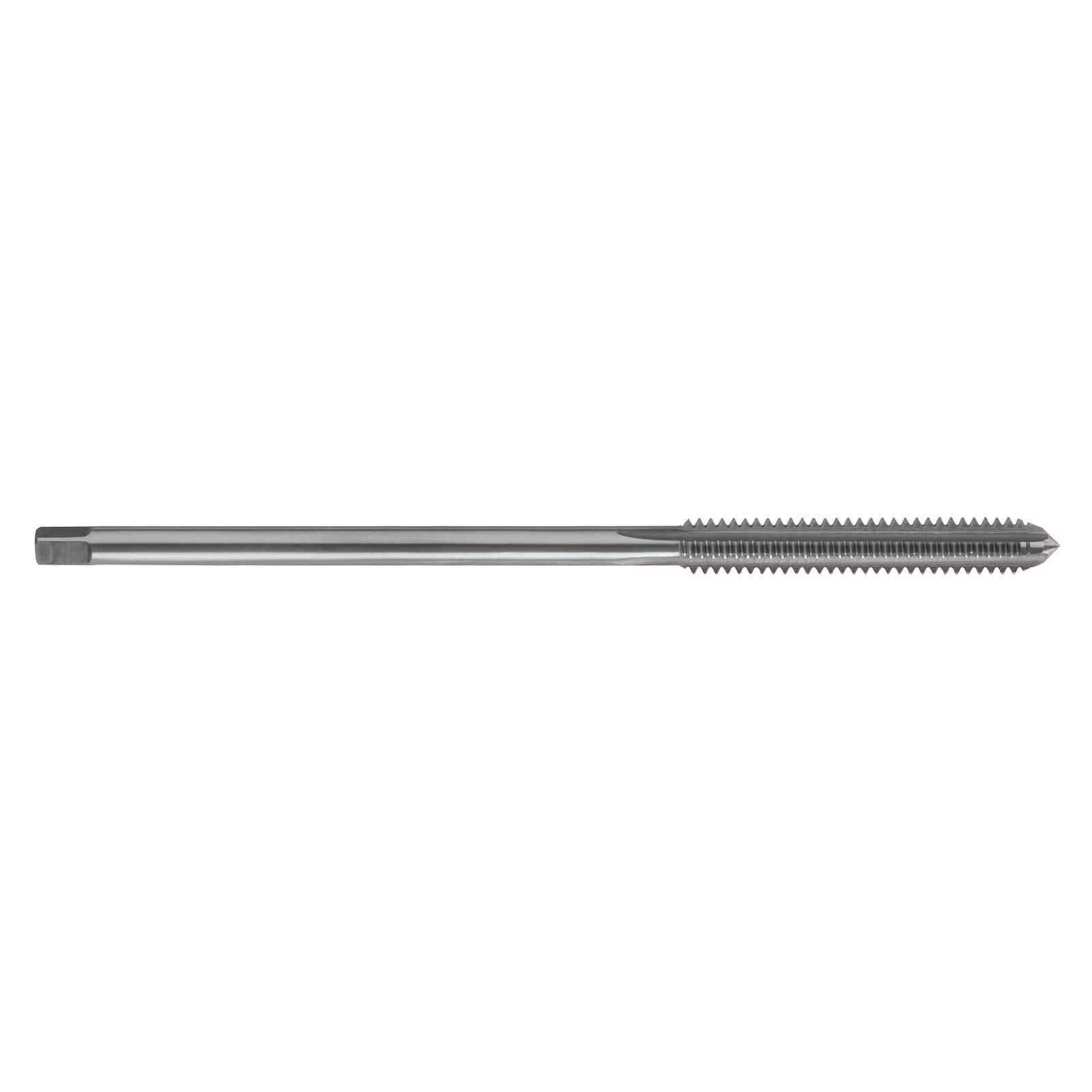

Tap T465 BSW 1/4-20 Z3 Straight M/C Nut BS949 Bott HSS Sutton T4650635



Features

  • Suited to long reach applications
  • Suitable for materials up to 1000N/mm2
  • Through holes
  • Depths up to approx. 2 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Bright
  • Max Cut Depth: 2xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: BS949
  • Thread Form: British Standard Whitworth 55° (BSW)
  • Nut Tolerance: Z3 Medium
  • Lead: Bottoming

Part Number/SKU: T4650635

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T4650635
Barcode # 9311963348421
Brand Sutton Tools
Shipping Weight 0.0200kg
Shipping Width 0.017m
Shipping Height 0.017m
Shipping Length 0.124m
Shipping Cubic 0.000036000m3
