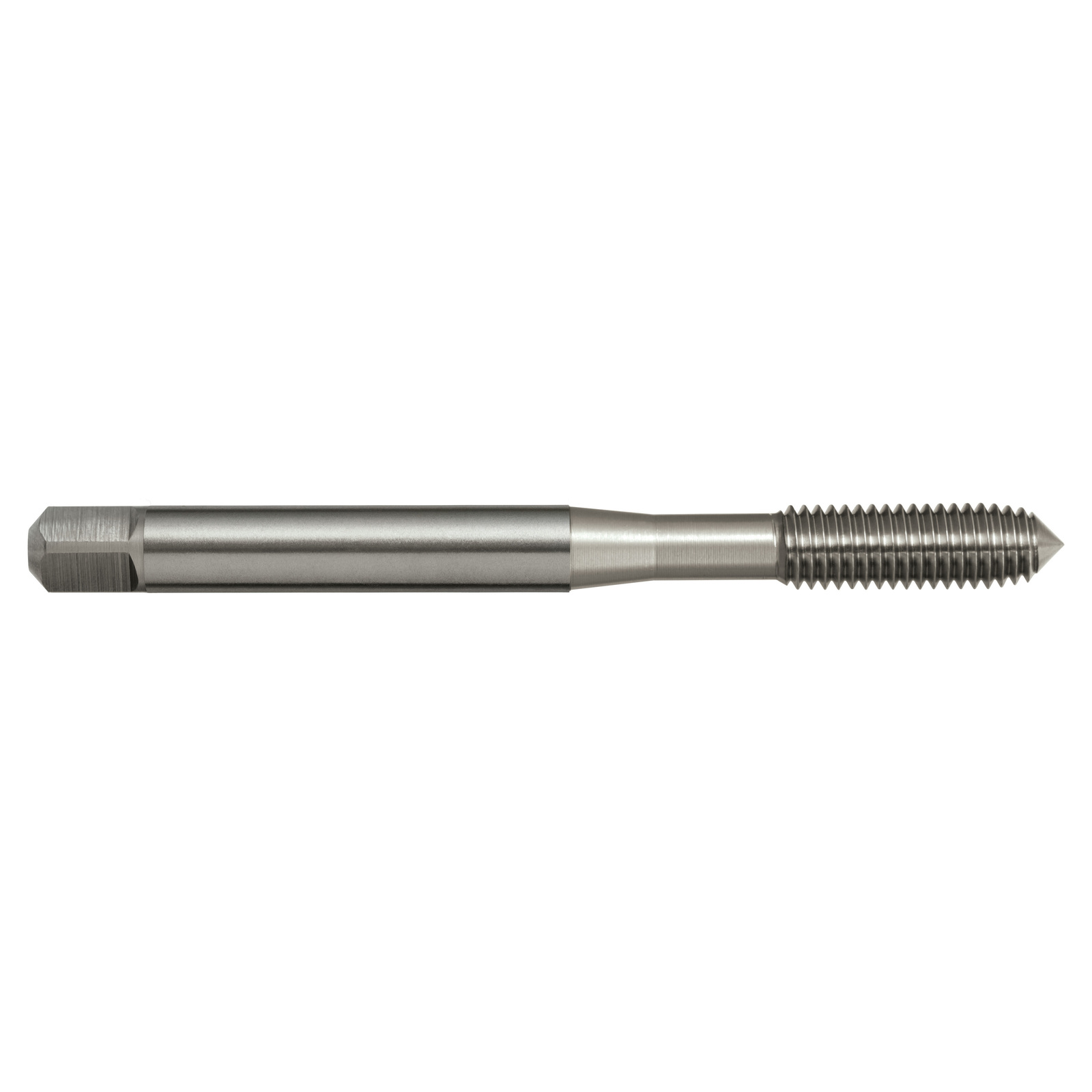

Tap T311 M 6x1 6HX Forming N Din2174 D HSSE Sutton Tools T3110600

Features

• Suitable for materials with >10% elongation
• Through our blind holes
• Depths up to 3 x d1

Specifications

• Designation: N (for normal general-purpose type materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Bright
• Max Cut Depth: 3xD
• Shank Form: Reinforced Shank (with square drive)
• X: als
• Type: Fluteless - No Groove
• Standard: DIN2174
• Thread Form: ISO Metric Coarse (M)
• Nut Tolerance: 6HX
• Lead: Form D / 4 x P

Part Number/SKU: T3110600

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
