TAP T305 G 7/8-14 (BSPF) STRAIGHT N DIN5156 C HSSE TiN Sutton Tools T3053020

Features

• General-purpose use, materials up to approx. 1000 N/mm2
• Through & blind holes
• Suitable for machine operations
• Depths up to approx. 1 x d1

Specifications

• Designation: N (for normal and general-purpose type materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Titanium Nitride (TiN)
• Max Cut Depth: 1xD
• Shank Form: Reduced Shank (with square drive)
• X: als
• Type: Straight Flute
• Standard: DIN5156
• Thread Form: ISO G Parallel Series 55° (G-BSPF)
• Nut Tolerance: ISO 228
• Lead: Form C / 3 x P

Part Number/SKU: T3053020

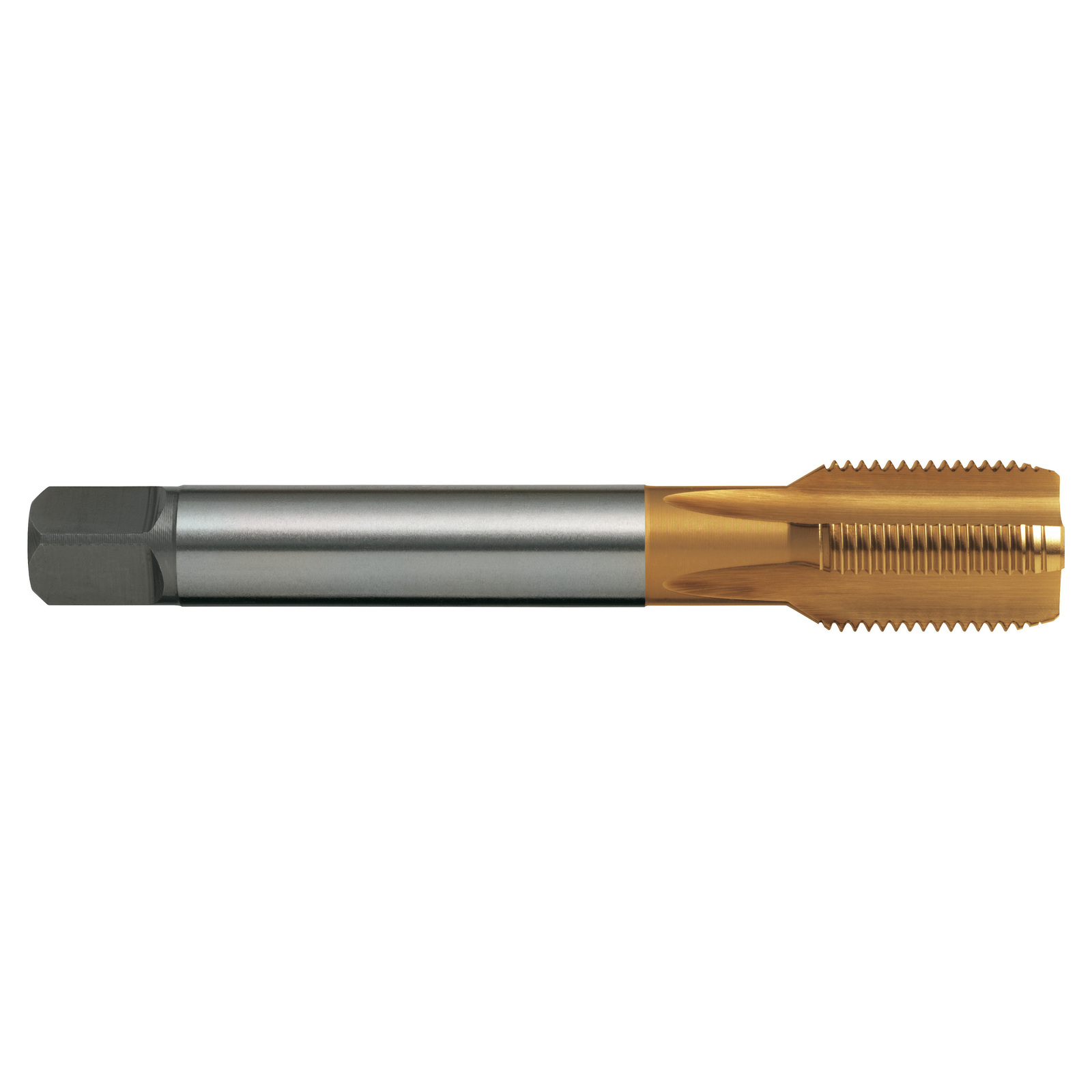

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
