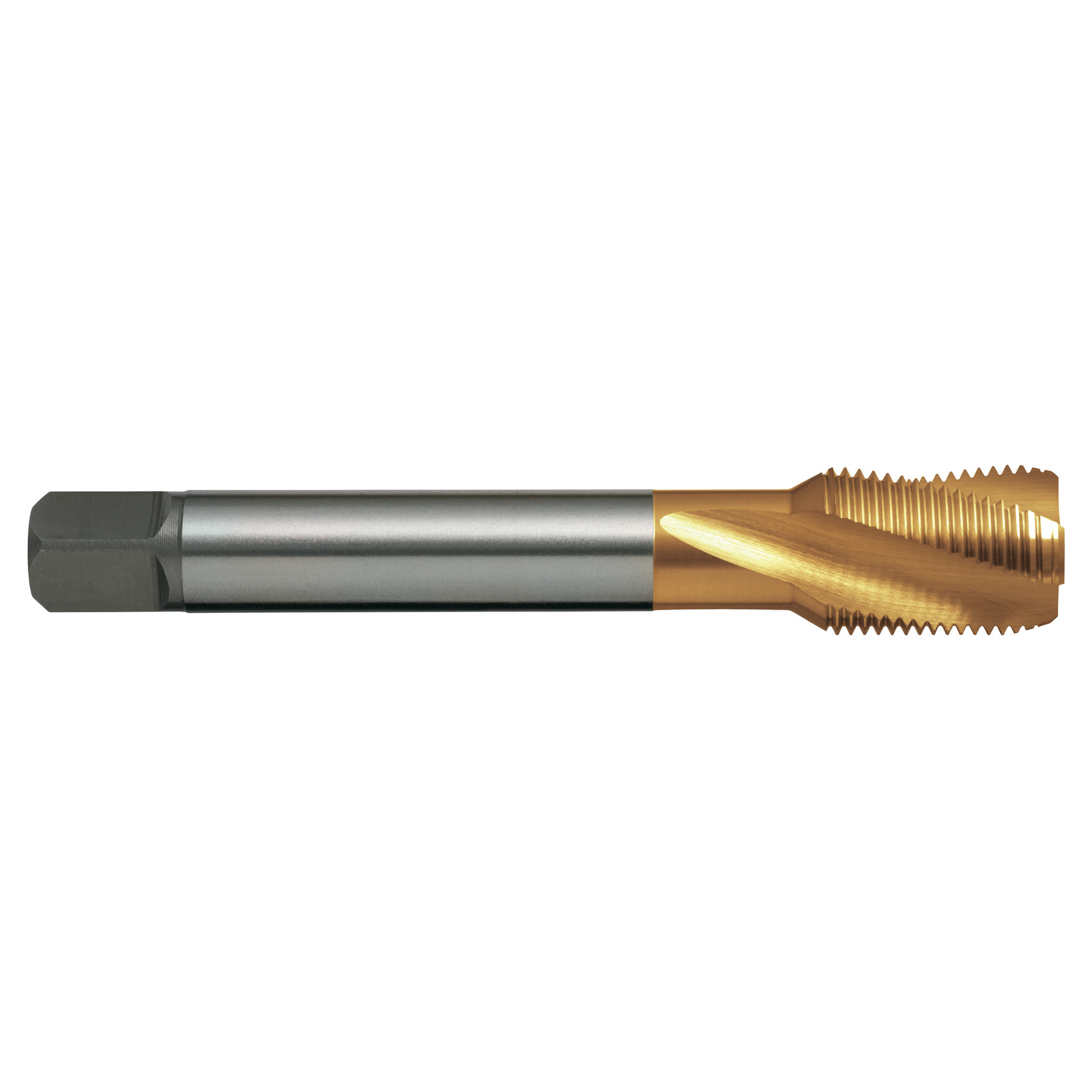

TAP T279 G 3/4-14 (BSPF) SPIRAL R15 N DIN5156 C HSSE TiN Sutton Tools T2792644

Features

• General-purpose use, materials up to approximately 1000 N/mm2
• Blind holes
• Suitable for machine operations
• Depths up to 1.5 x d1

Specifications

• Designation: N (for normal and general-purpose type materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Titanium Nitride (TiN)
• Max Cut Depth: 1.5xD
• Shank Form: Reduced Shank (with square drive)
• Helix Angle: R15
• X: als
• Type: Spiral Flute
• Standard: DIN5156
• Thread Form: ISO G Parallel Series 55° (G-BSPF)
• Nut Tolerance: ISO 228
• Lead: Form C / 3 x P

Part Number/SKU: T2792644

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
