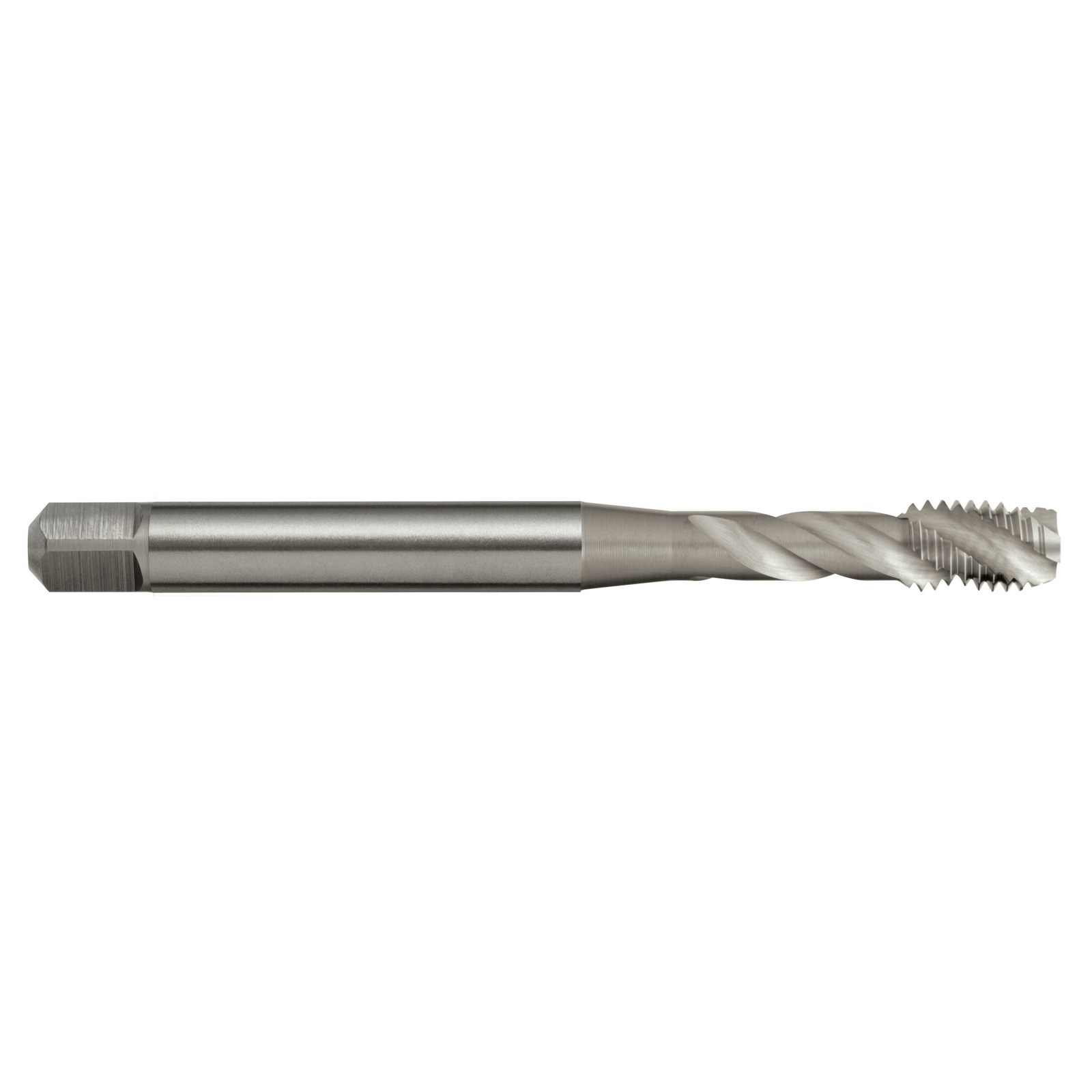

Tap T193 M 2x0.4 4H Spiral R40 N Din371 C HSSE Sutton Tools T1930200

Features

  • General-purpose use
  • Suitable for materials up to 1000N/mm2
  • Blind holes
  • Depths up to 2.5 x d1

Specifications

  • Designation: N (for normal general-purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 2.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 1 / 4H
  • Lead: Form C / 3 x P

Part Number/SKU: T1930200

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1930200
Barcode # 9311963399058
Brand Sutton Tools
Shipping Weight 0.2000kg
Shipping Width 0.023m
Shipping Height 0.023m
Shipping Length 0.005m
Shipping Cubic 0.000003000m3
Unit Of Measure ea
