Tap T145 M 16x2 6HX Gun H Din376 B PM-Co. Blu Sutton T1451600

Features

• General purpose use, materials up to approx. 1000 N/mm2
• Through holes
• Suitable for machine operations
• Depths up to approx. 3 x d1

Specifications

• Designation: N (for normal general purpose type materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Bright
• Max Cut Depth: 3xD
• Shank Form: Reduced Shank (with square drive)
• X: als
• Type: Spiral Point (Gun)
• Standard: DIN374
• Thread Form: ISO Metric Fine (MF)
• Nut Tolerance: ISO 2 / 6H
• Lead: Form B / 4.5 x P

Part Number/SKU: T1451600

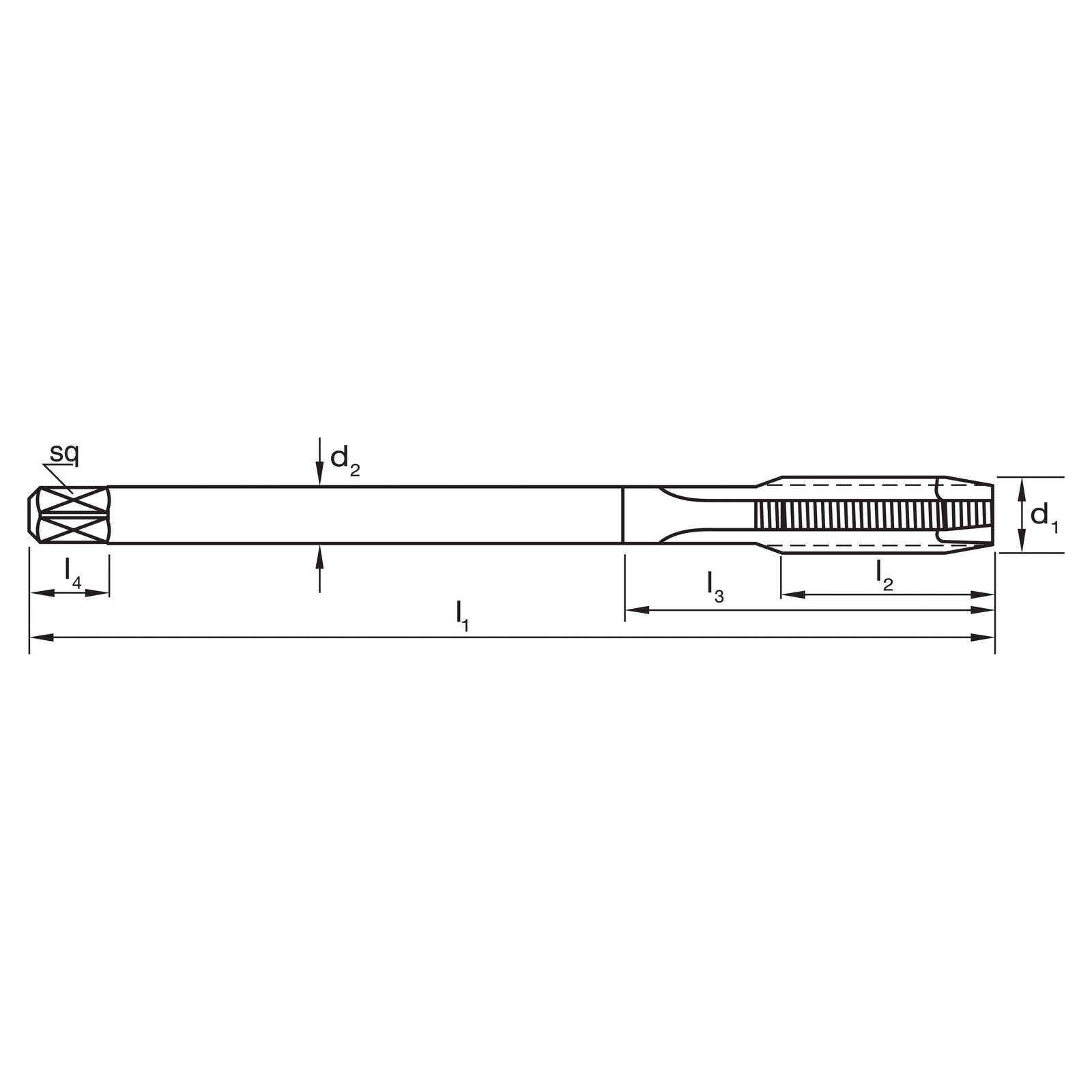

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
